DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QBE4120N060N76DC DC CONVERTER 12V 720W |
46 | - |
|
데이터시트 |
QBE | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 60A | 720 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.29" L x 1.46" W x 0.50" H (58.2mm x 37.1mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus | - |
|
BMR4530001/001DC DC CONVERTER 12V 396W |
56 | - |
|
데이터시트 |
BMR453 (396W) | Quarter Brick | Tray | Obsolete | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | PMBus™, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.44" H (57.9mm x 36.8mm x 11.3mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
60DAW4_2415D1.6ISOLATED MODULE DC DC CONVERTERS |
75 | - |
|
데이터시트 |
60DAW4_1.6 (60W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 2A, 2A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE | 60950-1 |
|
PYB20-Q24-S24DC DC CONVERTER 24V 20W |
0 | - |
|
데이터시트 |
PYB20 (20W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 834mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | EN | 55024 |
|
|
RPP30-2415SW-B30W DC/DC-CONV POWERLINE-PLUS |
28 | - |
|
데이터시트 |
POWERLINE+ RPP30-W (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | - | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -45°C ~ 90°C | 89.7% | - | - | Through Hole | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) | - | - | - | - |
|
|
PT4821ADC DC CNVRTR 3.3V 2.5V 1.5V 35W |
0 | - |
|
데이터시트 |
Excalibur™ PT4820 (35W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 3.3V | 2.5V | 1.5V | - | 8A, 6A, 6A | 35 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
QBE4120N067N76DC DC CONVERTER 12V 804W |
40 | - |
|
데이터시트 |
QBE | Quarter Brick | Tray | Active | Isolated Module | 1 | 40V | 60V | 12V | - | - | - | 67A | 804 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95.5% | - | - | Through Hole | 2.29" L x 1.46" W x 0.50" H (58.2mm x 37.1mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus | - |
|
|
PH75S28024DC DC CONVERTER 24V 75W |
600 | - |
|
데이터시트 |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PQA50-D24-S15-DDC DC CONVERTER 15V 50W |
0 | - |
|
데이터시트 |
PQA50-D (50W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 3.333A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | - | - |
|
PQA50-D48-S15-DDC DC CONVERTER 15V 50W |
0 | - |
|
데이터시트 |
PQA50-D (50W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.333A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | - | - |
|
|
PQA50-D48-S5-DDC DC CONVERTER 5V 50W |
0 | - |
|
데이터시트 |
PQA50-D (50W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | - | - |
|

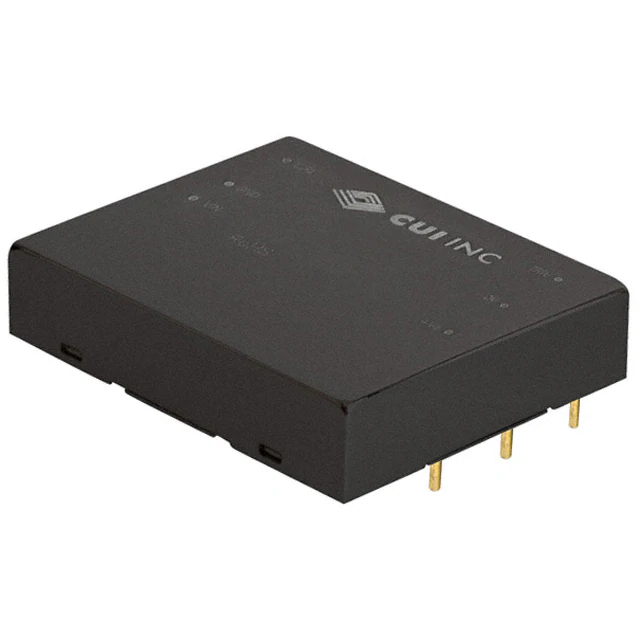

PYB30-Q48-T512DC DC CONVERTER 5V +/-12V 30W |
312 | - |
|
데이터시트 |
PYB30 (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 18V | 75V | 5V | 12V | -12V | - | 3A, 625mA, 625mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.47" H (50.8mm x 40.6mm x 11.8mm) | - | Enable, Active High | - | - |
|
|
RFT-10Y48DC-DC,14-160V INPUT, 48V/0.21A O |
114 | - |
|
데이터시트 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 208mA | 9.9 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
KDHM-B-5S300P-VDC DC CONVERTER |
99 | - |
|
데이터시트 |
KDHM-B | 5-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 7V | 0 ~ 300V | - | - | - | 4mA | 1.2 W | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
DBQ0135V2NBSCDC DC CONVERTER 12V 420W |
30 | - |
|
데이터시트 |
DBQ (420W) | 16-DIP Module (15 Leads), 1/4 Brick | Tray | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95.2% | - | - | Through Hole | 2.30" L x 1.45" W x 0.52" H (58.4mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
|
|
EN2340QIDC DC CONVERTER 0.75-5V 20W |
473 | - |
|
데이터시트 |
Enpirion® 2300 | 68-BFQFN Exposed Pad, Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.75 ~ 5V | - | - | - | 4A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.43" L x 0.32" W x 0.12" H (11.0mm x 8.0mm x 3.0mm) | 68-QFN (11x8) | Enable, Active High | - | - |
|
|
SQ48T15015-NBC0DC DC CONVERTER 1.5V 23W |
0 | - |
|
데이터시트 |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 1.5V | - | - | - | 15A | 23 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm) | - | Enable, Active Low | - | - |
|
|
SQ48T10050-PDA0DC DC CONVERTER 5V 50W |
0 | - |
|
데이터시트 |
SemiQ™ SQ48 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm) | - | Enable, Active High | - | - |
|
|
SQ48T10050-PBA0DC DC CONVERTER 5V 50W |
0 | - |
|
데이터시트 |
SemiQ™ SQ48 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm) | - | Enable, Active High | - | - |
|
|
SQ48T04120-PDA0DC DC CONVERTER 12V 48W |
0 | - |
|
데이터시트 |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm) | - | Enable, Active High | - | - |
