DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCF4824QBO-400WR3-NISOLATED MODULE DC DC CONVERTER1 |
33 | - |
|
데이터시트 |
VCF48_QBO-400WR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
BWR-12/125-D48-CDC DC CONVERTER +/-12V 3W |
61 | - |
|
데이터시트 |
BWR (10W) | 8-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 72V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | OCP, OVP | -25°C ~ 75°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) | - | - | - | - |
|
PYB20-Q48-S12DC DC CONVERTER 12V 20W |
2 | - |
|
데이터시트 |
PYB20 (20W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.667A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | CB Scheme, EN, IEC, UL | 55024; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SQ24S15033-PS0SDC DC CONVERTER 3.3V 50W |
0 | - |
|
데이터시트 |
SemiQ™ SQ24 (50W) | 8-SMD Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 15A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
UIQ48T72033-NDABGDC DC CONVERTER 3.3V 240W |
0 | - |
|
데이터시트 |
UIB (240W) | 8-DIP Module, 1/4 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 72A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
RDT-6Y05DC-DC,14-160V INPUT, 5V/1.2A OUT |
42 | - |
|
데이터시트 |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 1.2A | 6 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 1.24" L x 0.80" W x 0.49" H (31.6mm x 20.3mm x 12.5mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RDT-6Y15DC-DC,14-160V INPUT, 15V/0.4A OU |
33 | - |
|
데이터시트 |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 250mA | 3.75 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 1.24" L x 0.80" W x 0.49" H (31.6mm x 20.3mm x 12.5mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
PTQB425080P2ADDC DC CONVERTER 8V 200W |
0 | - |
|
데이터시트 |
PTQB425080 (200W) | 5-DIP Module, 1/4 Brick | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 8V | - | - | - | 25A | 200 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.22" L x 1.45" W x 0.51" H (56.4mm x 36.8mm x 13.0mm) | - | - | - | - |
|
|
PT7741NDC DC CONVERTER 0.8-3.1V 32A |
248 | - |
|
데이터시트 |
PT7740 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.1V | - | - | - | 32A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole, Vertical | - | - | - | - | - |
|
|
PT7746ADC DC CONVERTER 1.3-3.5V |
0 | - |
|
데이터시트 |
PT7740 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 32A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole, Horizontal | - | - | - | - | - |
|

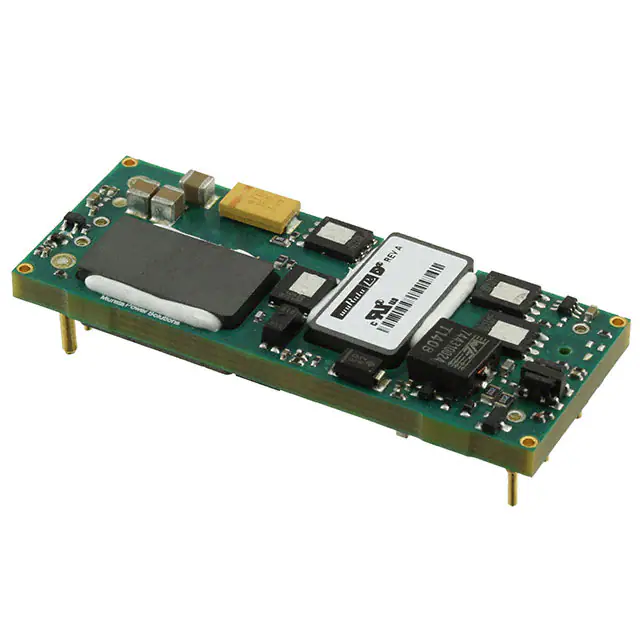

UWE-12/10-Q12P-CDC DC CONVERTER 12V 120W |
197 | - |
|
데이터시트 |
UWE | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 10A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm) | - | Enable, Active High | - | - |
|
|
VCF4815QBO-400WHR3-NISOLATED MODULE DC DC CONVERTER1 |
35 | - |
|
데이터시트 |
VCF48_QBO-400WHR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 26.5A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4828QBO-400WHR3-NISOLATED MODULE DC DC CONVERTER1 |
34 | - |
|
데이터시트 |
VCF48_QBO-400WHR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 14.2A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|

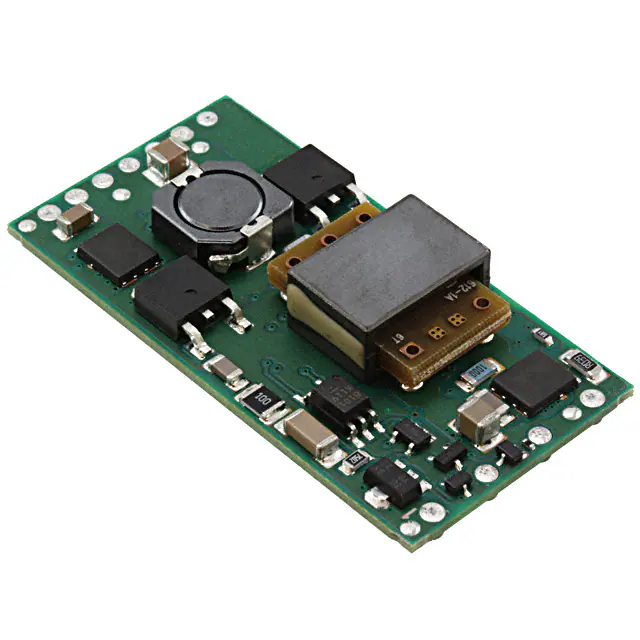

PTB78560BASDC DC CONVERTER 1.8-3.6V 30W |
0 | - |
|
데이터시트 |
PTB78560 (30W) | 11-SMD Module | Bulk | Not For New Designs | Isolated Module | 1 | 18V | 60V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 80% | - | - | Surface Mount | 2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm) | - | - | - | - |
|
|
NDM2Z-50HS-A-001DC DC CONVERTER 0.6-3.3V |
0 | - |
|
데이터시트 |
Novum® NDM2Z | 20-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 50A | - | - | ITE (Commercial) | Digital | -40°C ~ 125°C | 94.6% | - | - | Surface Mount | 1.22" L x 0.79" W x 0.32" H (30.9mm x 20.0mm x 8.2mm) | - | - | - | - |
|
EBE4120N017N76DC DC CONVERTER 12V 204W |
30 | - |
|
데이터시트 |
EBE | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.2mm) | Eighth Brick | Enable, Active Low | cURus | - |
|
|
VCF4812QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
32 | - |
|
데이터시트 |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.44" L x 2.20" W x 0.58" H (62.0mm x 56.0mm x 14.7mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4828QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
32 | - |
|
데이터시트 |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 14.2A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.44" L x 2.20" W x 0.58" H (62.0mm x 56.0mm x 14.7mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4815QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
30 | - |
|
데이터시트 |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 33A | 495 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.44" L x 2.20" W x 0.58" H (62.0mm x 56.0mm x 14.7mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|

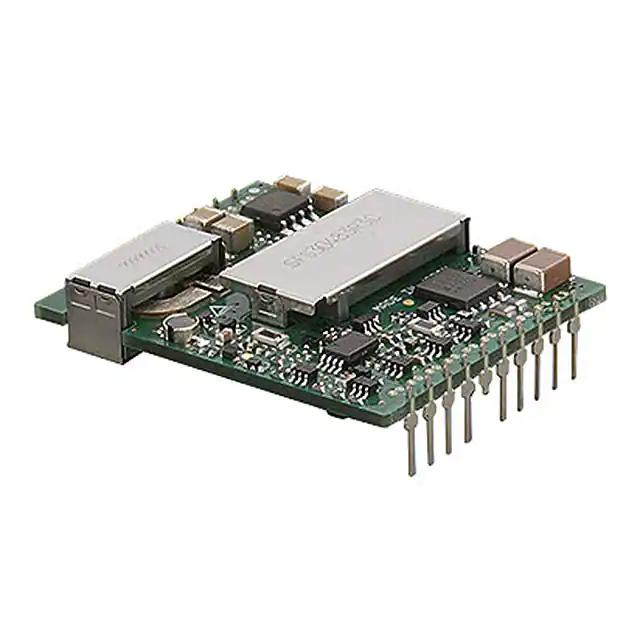

SFS302415CDC DC CONVERTER 15V |
322 | - |
|
데이터시트 |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
