DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

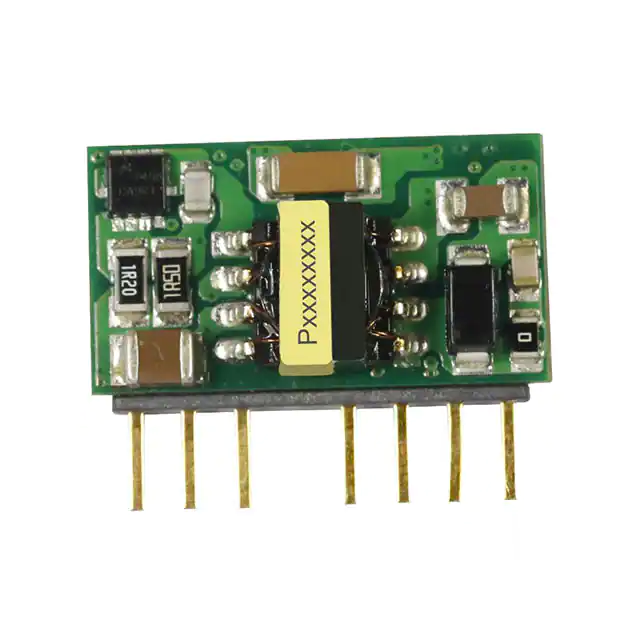

VCB4812SO-3WR3DC DC CONVERTER, 3W, 12V |
179 | - |
|
데이터시트 |
VCB48SO-3WR3 (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.87" L x 0.32" W x 0.50" H (22.0mm x 8.2mm x 12.8mm) | - | - | CE | 62368-1 |
|
|
VCB4824SO-3WR3DC DC CONVERTER, 3W, 24V |
175 | - |
|
데이터시트 |
VCB48_SO-3WR3 (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.87" L x 0.32" W x 0.50" H (22.0mm x 8.2mm x 12.8mm) | - | - | CE | 62368-1 |
.jpg)
|

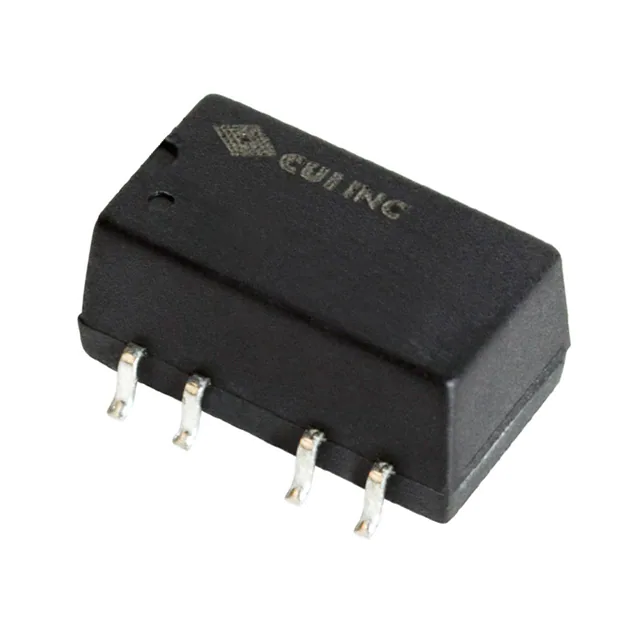

PDS1-S5-D15-MDC DC CONVERTER +/-15V 1W |
0 | - |
|
데이터시트 |
PDS1-M (1W) | 10-SMD Module, 6 Leads | Bulk | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 |
|
PDS2-S12-S5-MDC DC CONVERTER 5V 2W |
0 | - |
|
데이터시트 |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | EN | 55024; 55032 Class A |
|
PQP3-D12-S15-MDC DC CONVERTER 15V 3W |
220 | - |
|
데이터시트 |
PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | 0.55" L x 0.55" W x 0.36" H (14.0mm x 14.0mm x 9.1mm) | - | - | CE | - |
|

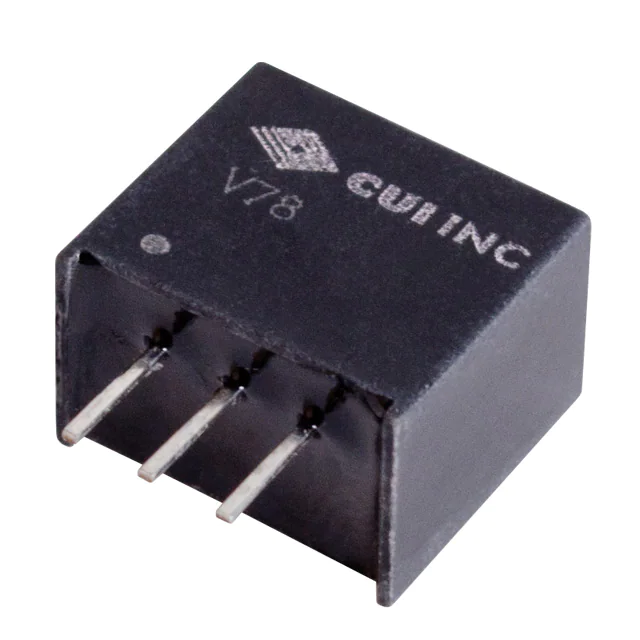

V7812-500DC DC CONVERTER 12V 6W |
218 | - |
|
데이터시트 |
V78-500 | 3-SIP Module | Bulk | Obsolete | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.4mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
V7805-500DC DC CONVERTER 5V 2.5W |
1,903 | - |
|
데이터시트 |
V78-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.4mm x 7.6mm x 10.2mm) | - | - | - | - |
|
VIBLSD1-S5-S12-SIPDC DC CONVERTER 12V 1W |
415 | - |
|
데이터시트 |
VIBLSD1-SIP (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
VIBLSD1-S12-S12-SIPDC DC CONVERTER 12V 1W |
197 | - |
|
데이터시트 |
VIBLSD1-SIP (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 11.4V | 12.6V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
3S8W_0505S1.5RPDC-DC INDUSTRIAL |
110 | - |
|
데이터시트 |
3S8W_1.5RP (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 500mA | 2.5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | 60950-1 |
|
|
3S8W_2424S1.5RPDC-DC INDUSTRIAL |
106 | - |
|
데이터시트 |
3S8W_1.5RP (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | 60950-1 |
|
|
3S8W_2412S1.5RPDC-DC INDUSTRIAL |
106 | - |
|
데이터시트 |
3S8W_1.5RP (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | 60950-1 |
|
VCB4805SO-6WR3DC DC CONVERTER, 6W, 5V |
297 | - |
|
데이터시트 |
VCB48_SO-6WR3 (6W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.87" L x 0.32" W x 0.50" H (22.0mm x 8.2mm x 12.8mm) | - | - | CE | 62368-1 |
|
|
VCB4815SO-6WR3DC DC CONVERTER, 6W, 15V |
180 | - |
|
데이터시트 |
VCB48_SO-6WR3 (6W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.87" L x 0.32" W x 0.50" H (22.0mm x 8.2mm x 12.8mm) | - | - | CE | 62368-1 |
|
|
VCB4824SO-6WR3DC DC CONVERTER, 6W, 24V |
155 | - |
|
데이터시트 |
VCB48_SO-6WR3 (6W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.87" L x 0.32" W x 0.50" H (22.0mm x 8.2mm x 12.8mm) | - | - | CE | 62368-1 |
|
|
PTH12050LASDC DC CONVERTER 0.8-1.8V 6A |
0 | - |
|
데이터시트 |
PTH12050 | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
P7805-Q12-S1R5-SDC DC CONVERTER 1.5V 750MW |
0 | - |
|
데이터시트 |
P7805-S | 3-SIP Module | Bulk | Obsolete | Linear Regulator Replacement | 1 | 4.75V | 28V | 1.5V | - | - | - | 500mA | 750 mW | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | EN | 55024 |
|
|
PDM1-S3-S9-SDC DC CONVERTER 9V 1W |
0 | - |
|
데이터시트 |
PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | - | - |
|
OKR-T/6-W12-CDC DC CONVERTER 0.591-6V 30W |
3,691 | - |
|
데이터시트 |
Okami™ OKR-T/6 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.591 ~ 6V | - | - | - | 6A | 30 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95.5% | - | - | Through Hole | 0.41" L x 0.30" W x 0.65" H (10.4mm x 7.6mm x 16.5mm) | - | Enable, Active High | - | - |
|
|
1S8W8_1205S3RPISOLATED MODULE DC DC CONVERTERS |
110 | - |
|
데이터시트 |
1S8W8_3RP (1W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 36V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 71% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | CE, cURus | - |
