DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEE08A18-LDC DC CONVERTER 5V 40W |
72 | - |
|
데이터시트 |
AEE (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
AGQ500-48S50P-6LDC DC CONVERTER 50V 500W |
44 | - |
|
데이터시트 |
AGQ500 (500W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 50V | - | - | - | 10A | 500 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CE, TUV, UL | - |
|
TEN 10-2410DC DC CONVERTER 3.3V 7.9W |
28 | - |
|
데이터시트 |
TEN 10 (10W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
PXG-M15-24WS24DC DC CONVERTER 24V 15W |
76 | - |
|
데이터시트 |
PXG-M (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 625mA | 15 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
MGDDI-06-R-IDC DC CONVERTER 24V 24V 6W |
73 | - |
|
데이터시트 |
MGDDI-06 | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 12V | 160V | 24V | 24V | - | - | 125mA, 125mA | 6 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 100°C | 83% | - | - | Through Hole | 1.10" L x 0.78" W x 0.32" H (28.0mm x 19.8mm x 8.2mm) | - | - | - | - |
|
RP15-2412SAWDC DC CONVERTER 12V 15W |
259 | - |
|
데이터시트 |
POWERLINE RP15-AW (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
RP15-4812SAWDC DC CONVERTER 12V 15W |
37 | - |
|
데이터시트 |
POWERLINE RP15-AW (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
JTL3024D05DC DC CONVERTER +/-5V 30W |
59 | - |
|
데이터시트 |
JTL (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
CHB50-48S24DC DC CONVERTER 24V 50W |
43 | - |
|
데이터시트 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
CHS804805DC DC CONVERTER 5V |
80 | - |
|
데이터시트 |
CHS (80W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 16A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.8mm x 10.5mm) | - | - | - | - |
|
TEN 20-1211DC DC CONVERTER 5V 20W |
168 | - |
|
데이터시트 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THP 3-2422DC DC CONVERTER +/-12V 3W |
83 | - |
|
데이터시트 |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 40V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
THM 20-1212DC DC CONVERTER 12V 20W |
140 | - |
|
데이터시트 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.67A | 20 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THM 15-2412WIDC DC CONVERTER 12V 15W |
44 | - |
|
데이터시트 |
THM 15WI (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|

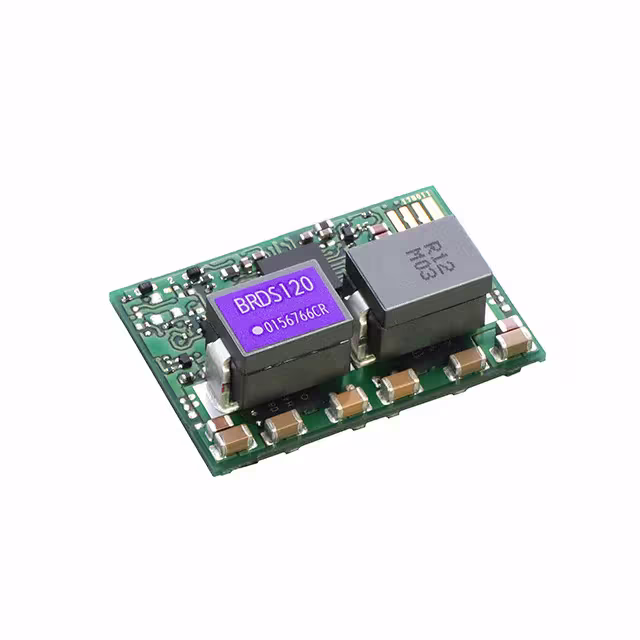

BRDS120DC DC CONVERTER 0.6-1.8V |
303 | - |
|
데이터시트 |
BRDS | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.6 ~ 1.8V | - | - | - | 120A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 89% | - | - | Surface Mount | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | - | CE, cURus, TUV | - |
|
|
THM 20-1211DC DC CONVERTER 5V 20W |
33 | - |
|
데이터시트 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THN 20-7210WIR20 WATT DC/DC CONVERTER, RAILWAY |
30 | - |
|
데이터시트 |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 3.3V | - | - | - | 5.5A | 18 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|
THM 20-2413DC DC CONVERTER 15V 20W |
38 | - |
|
데이터시트 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1.33A | 20 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 30-2411DC DC CONVERTER 5.1V 31W |
35 | - |
|
데이터시트 |
TEN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 6A | 31 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
TRI 15-1215DC DC CONVERTER 24V 15W |
40 | - |
|
데이터시트 |
TRI 15 (15W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 625mA | 15 W | 8 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CB, cURus | - |
