홈 > 제품 > 센서, 트랜스듀서 > 모션 센서 > 진동 센서

진동 센서

제조업체	시리즈	패키지/케이스	패키징	제품 상태	센서 유형	감지 범위	감도	출력 유형	전력 - 정격	작동 온도	기능	장착 유형	종단
Adafruit Industries LLC Advantech Corporation Amphenol PCB Piezotronics Amphenol Wilcoxon Sensing Technologies Analog Devices Inc. Banner Engineering Corporation BEANAIR SENSORS Broadsens Corporation Comus International DFRobot Goertek Microelectronics HAUBER Elektronik ifm efector, inc. KEMET Knowles Micro-Measurements (Division of Vishay Precision Group) Mide Technology National Control Devices NI Omron Electronics Inc-EMC Div Parallax Inc. Pepperl+Fuchs, Inc. Phoenix Contact Seeed SparkFun Electronics STI Vibration Monitoring STMicroelectronics TE Connectivity Measurement Specialties	* - BU D7A D7E D7H D7S DT DX80 ECOPACK® FDT HE100 HE101 ICP® iMEMS®, iSensor™ iSensor™ LDT LDTC PC420A PC420A-DA PC420A-EX PC420A-IS PC420ATP PC420DPP PC420V PC420V-DA PC420V-DV PC420V-EX PC420V-IS PC421 PCC420V PCC421 PCC423 PCH420V Performance Line Performance Plus Line PPA PR49 PR52 PR55 SDT Sure Cross® SVT Volture™ VS WIL	- 14-Module with Connector 14-VFLGA Module 2-DIP Module 6-LFLGA Module 6-TLGA Box Cantilever Magneto Film (Wafer) Cantilever Piezo Film (Wafer) Ceramic Cylinder, Threaded Cylinder, Threaded - M8 IoT Finished Device Module Nonstandard Piezo Film, Cantilever (Wafer) Radial, Can	Bag Box Bulk Case Retail Package Tape & Reel (TR) Tray	Active Discontinued at Key Last Time Buy Obsolete	- Acceleration Accelerometer Accelerometer, 2 Axis Accelerometer, 3 Axis Displacement Piezoelectric Vibration Vibration, Acceleration Vibration, Piezo Film	- -70 ~ 70 g 0.1Hz ~ 12kHz 0.3Hz ~ 10kHz 0Hz ~ 180Hz 0Hz ~ 4.5kHz 0Hz ~ 40Hz 0Hz ~ 42Hz 0Hz ~ 6kHz 0Hz ~ 90Hz 100 ~ 170 gal 10Hz ~ 15kHz 10Hz ~ 1kHz 10Hz ~ 240Hz 120Hz ~ 360Hz 1Hz ~ 10kHz 1Hz ~ 1kHz 1Hz ~ 6kHz 26Hz ~ 110Hz 2Hz ~ 10kHz 2Hz ~ 1kHz 2Hz ~ 2kHz 45Hz ~ 155Hz 50Hz ~ 4kHz 5Hz ~ 10kHz 60Hz ~ 140Hz 6kHz 75Hz ~ 175Hz 80Hz ~ 205Hz 90 ~ 170 gal ±1.2g, ±2.4g ±10g ±16g ±18g ±2000 gal ±2g ±2g ~ ±16g ±2g ~ ±8g ±2g, ±4g, ±8g ±32g ±50g ±8g ~ ±64g	- -148dB -15dBV/g -25dBV/g -40dB ±3dB -45dB ±4.5dB 0.3052mg/LSB 0.488mg/LSB 0.9535mg/LSB 1.192mg/LSB 1.1V/g 100mV/g 10mV/g 20 gal 200mV/g 250mV/g 4.768mg/LSB 50mV/g	- Analog Analog, Digital Digital I2C I2C, SPI LAN, Wireless LoRaWAN SPDT SPST SPST-NC SPST-NO Voltage Wireless	- 1.52V ~ 1.89V / 50μA 1.65V ~ 3.3V / 700µA 1.6V ~ 3.6V / 125µA 10V ~ 30V / 25mA 10V ~ 30V / 50mA 10V, 500µA / 12V, 8mA 125V, 100mA / 30V 100mA 125V, 10A ~ 250V, 10A 12V ~ 30V 13V, 4mA / 15V, 6A 18V ~ 30V / 120mA 18V ~ 30V / 220mA 18V ~ 30V / 25mA 18V ~ 30V / 50mA 18V ~ 30V / 700mA 2.1V ~ 3.6V 24V / 100mA 24V / 200mA 24V / 50mA 3.0 V ~ 3.6 V / 23.9mA 3.0 V ~ 3.6 V / 37mA 3.0 V ~ 3.6 V / 39mA 3.0 V ~ 3.6 V / 40mA 3.0 V ~ 5.5 V / 350µA 3.0V ~ 3.6V / 31.6mA 3.15 V ~ 3.6 V / 43mA 3.2V ~ 5.5V / 500µA 3.6V 3V, 5µA ~ 3V, 1mA 5 V ~ 12 V 5V ~ 15V / 6mA 5V, 100nA ~ 30V, 100mA 7.2V ~ 10.8V / 15mA 9.6V ~ 32V	- -10°C ~ 70°C -14°F ~ 158°F -20°C ~ 105°C -20°C ~ 60°C -20°C ~ 80°C -25°C ~ 60°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -30°C ~ 125°C -30°C ~ 60°C -30°C ~ 70°C -30°C ~ 80°C -30°C ~ 85°C -35°C ~ 60°C -37°C ~ 100°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 140°C -40°C ~ 60°C -40°C ~ 80°C -40°C ~ 85°C -40°C ~ 90°C -50°C ~ 125°C -55°C ~ 125°C -55°C ~ 85°C 0°C ~ 70°C 0°C ~ 85°C 260°C	- Built-In Amplifier Coaxial Cable, Integrated Electronic Piezoelectric (IEPE) Explosion Proof Explosion Proof, Intrinsically Safe High Frequency Intrinsically Safe Intrinsically Safe, Low Power, Waterproof, Wireless IP66 Piezoelectric Vibration Energy Harvesting, Hermetically Sealed Programmable Transceiver Waterproof	- Chassis Mount Connector DIN Rail Panel Mount Screw Mount Screw Mount, Magnet, Mounting Hole Screw Mount, Mounting Hole Surface Mount Through Hole User Defined	- Cable Cable with Connector Cable/Wire Leads Connector PC Pins Quick Connect Quick Connect - 0.187" (4.7mm) Rectangular Connector - 14 Pos Screw Terminal Solder Pads Solder Posts Threaded Wire Leads

모두 초기화

모두 적용

결과

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	센서 유형	감지 범위	감도	출력 유형	전력 - 정격	작동 온도	기능	장착 유형	종단
VIM82PP-S1V16-21E-I422C28 VIBRATION SENSOR Pepperl+Fuchs, Inc.	-	RFQ	데이터시트	-	Module	Box	Active	Vibration	10Hz ~ 1kHz	-	Analog	24V / 100mA	-40°C ~ 60°C	-	Chassis Mount	Cable
VIM82PP-S1V16-2BE-I422C28 VIBRATION SENSOR Pepperl+Fuchs, Inc.	-	RFQ	데이터시트	-	Module	Box	Active	Vibration	10Hz ~ 1kHz	-	Analog	24V / 100mA	-20°C ~ 60°C	-	Chassis Mount	Cable
1364837 WIL-SHM-S SENSOR Phoenix Contact	-	RFQ	데이터시트	WIL	Module	Bulk	Active	Accelerometer	-	-	Analog	-	-	-	Chassis Mount	Connector
D7A-1 SENSOR VIBRATION VERT 90-170GAL Omron Electronics Inc-EMC Div	-	RFQ	데이터시트	D7A	-	Tray	Active	Displacement	90 ~ 170 gal	-	SPST-NO	3V, 5µA ~ 3V, 1mA	-30°C ~ 70°C	-	Through Hole	PC Pins
D7A-2 SENSOR VIBRATION HORZ 90-170GAL Omron Electronics Inc-EMC Div	-	RFQ	데이터시트	D7A	-	Tray	Active	Displacement	90 ~ 170 gal	-	SPST-NO	3V, 5µA ~ 3V, 1mA	-30°C ~ 70°C	-	Through Hole	PC Pins
D7A-3 SENSOR VIBRATION BRKT 90-170GAL Omron Electronics Inc-EMC Div	-	RFQ	데이터시트	D7A	-	Bulk	Active	Displacement	90 ~ 170 gal	-	SPST-NO	3V, 5µA ~ 3V, 1mA	-30°C ~ 70°C	-	Chassis Mount	Wire Leads
BU-27135-000 ACCELEROMETER 1.5V LOW FREQ RESP Knowles	-	RFQ	데이터시트	BU	Box	Bulk	Obsolete	Vibration, Acceleration	-	-45dB ±4.5dB	Voltage	-	-	-	Surface Mount	Solder Pads

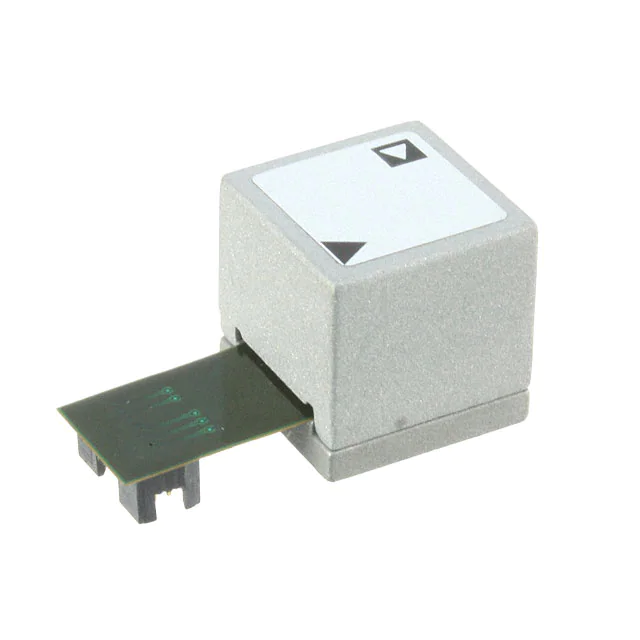

ADIS16223CMLZ SENSOR VIBRATION -70+70G MODUL Analog Devices Inc.	-	RFQ	데이터시트	iMEMS®, iSensor™	14-Module with Connector	Bulk	Obsolete	Vibration, Acceleration	-70 ~ 70 g	4.768mg/LSB	Digital	3.15 V ~ 3.6 V / 43mA	-40°C ~ 125°C	Programmable	Screw Mount	Rectangular Connector - 14 Pos
V22B PIEZOELECTRIC ENERGY HARVESTER Mide Technology Corporation	-	RFQ	데이터시트	Volture™	Cantilever Piezo Film (Wafer)	Tray	Discontinued at Digi-Key	Acceleration	120Hz ~ 360Hz	-	Analog	-	-40°C ~ 90°C	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Through Hole	PC Pins
V22BL PIEZOELECTRIC ENERGY HARVESTER Mide Technology Corporation	-	RFQ	데이터시트	Volture™	Cantilever Piezo Film (Wafer)	Tray	Discontinued at Digi-Key	Acceleration	26Hz ~ 110Hz	-	Analog	-	-40°C ~ 90°C	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Through Hole	PC Pins
V21B PIEZOELECTRIC ENERGY HARVESTER Mide Technology Corporation	-	RFQ	데이터시트	Volture™	Cantilever Piezo Film (Wafer)	Tray	Discontinued at Digi-Key	Acceleration	80Hz ~ 205Hz	-	Analog	-	-40°C ~ 90°C	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Through Hole	PC Pins
V21BL PIEZOELECTRIC ENERGY HARVESTER Mide Technology Corporation	-	RFQ	데이터시트	Volture™	Cantilever Piezo Film (Wafer)	Tray	Discontinued at Digi-Key	Acceleration	45Hz ~ 155Hz	-	Analog	-	-40°C ~ 90°C	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Through Hole	PC Pins
V20W PIEZOELECTRIC ENERGY HARVESTER Mide Technology Corporation	-	RFQ	데이터시트	Volture™	Cantilever Piezo Film (Wafer)	Tray	Discontinued at Digi-Key	Acceleration	75Hz ~ 175Hz	-	Analog	-	-40°C ~ 90°C	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Through Hole	PC Pins
V25W PIEZOELECTRIC ENERGY HARVESTER Mide Technology Corporation	-	RFQ	데이터시트	Volture™	Cantilever Piezo Film (Wafer)	Tray	Discontinued at Digi-Key	Acceleration	60Hz ~ 140Hz	-	Analog	-	-40°C ~ 90°C	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Through Hole	PC Pins
ADIS16227CMLZ SENSOR VIBRATION -70+70G MODUL Analog Devices Inc.	-	RFQ	데이터시트	iMEMS®, iSensor™	14-Module with Connector	Box	Obsolete	Acceleration	-70 ~ 70 g	1.192mg/LSB	Digital	3.15 V ~ 3.6 V / 43mA	-40°C ~ 125°C	Programmable	Screw Mount	Rectangular Connector - 14 Pos
PPA-1012 PIEZO ENERGY HARVESTER 120NF Mide Technology Corporation	-	RFQ	데이터시트	PPA	Cantilever Magneto Film (Wafer)	Tray	Discontinued at Digi-Key	Vibration, Piezo Film	-	-	Voltage	-	-	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Chassis Mount	Solder Pads
PPA-1014 PIEZO ENERGY HARVESTER 40NF Mide Technology Corporation	-	RFQ	데이터시트	PPA	Cantilever Magneto Film (Wafer)	Tray	Discontinued at Digi-Key	Vibration, Piezo Film	-	-	Voltage	-	-	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Chassis Mount	Solder Pads
PPA-1021 PIEZO ENERGY HARVESTER 22NF Mide Technology Corporation	-	RFQ	데이터시트	PPA	Cantilever Magneto Film (Wafer)	Tray	Discontinued at Digi-Key	Vibration, Piezo Film	-	-	Voltage	-	-	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Chassis Mount	Solder Pads
PPA-1022 PIEZO ENERGY HARVESTER 7NF Mide Technology Corporation	-	RFQ	데이터시트	PPA	Cantilever Magneto Film (Wafer)	Tray	Discontinued at Digi-Key	Vibration, Piezo Film	-	-	Voltage	-	-	Piezoelectric Vibration Energy Harvesting, Hermetically Sealed	Chassis Mount	Solder Pads
BB-HS-104T2505402 SENSOR Advantech Corporation	-	RFQ	-	-	Module	Bulk	Obsolete	Accelerometer	0.3Hz ~ 10kHz	250mV/g	Voltage	-	-50°C ~ 125°C	-	Chassis Mount	-

Total 364 Record«Prev 1... 14 15 16 171819 Next»
