LED 방출기 - 적외선, 자외선, 가시광선
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 전류 - DC 순방향(If)(최대) | 방사 강도(Ie) 최소 @ If | 파장 | 전압 - 정방향(Vf)(일반) | 시야각 | 방향 | 작동 온도 | 등급 | 자격 | 장착 유형 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

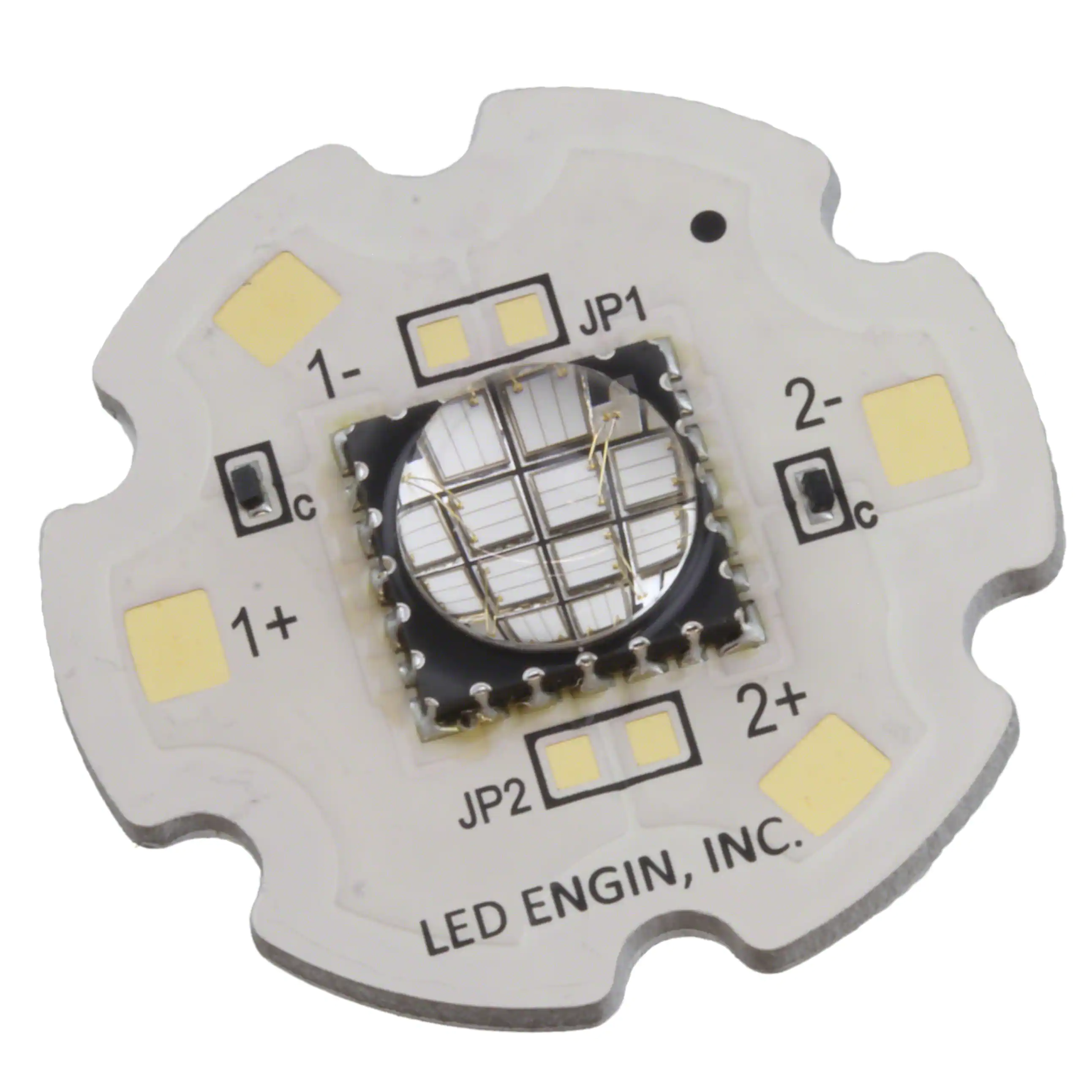

LZC-C0UA00-00U5EMITTER UV 395NM 1A |
0 | - |
|
데이터시트 |
LZC | Star Array | Tray | Obsolete | Ultraviolet (UV) | 1A | - | 395nm | 44V | 95° | Top View | 125°C (TJ) | - | - | Screw Mount |
|
|
LZC-C0UA00-00U6EMITTER UV 400NM 1A |
0 | - |
|
데이터시트 |
LZC | Star Array | Tray | Obsolete | Ultraviolet (UV) | 1A | - | 400nm | 44V | 95° | Top View | 125°C (TJ) | - | - | Screw Mount |
|
|
LZC-C0UA00-00U7EMITTER UV 405NM 1A |
0 | - |
|
데이터시트 |
LZC | Star Array | Tray | Obsolete | Ultraviolet (UV) | 1A | - | 405nm | 44V | 95° | Top View | 125°C (TJ) | - | - | Screw Mount |
|
|
LZC-C0UA00-00U8EMITTER UV 410NM 1A |
0 | - |
|
데이터시트 |
LZC | Star Array | Tray | Obsolete | Ultraviolet (UV) | 1A | - | 410nm | 44V | 95° | Top View | 125°C (TJ) | - | - | Screw Mount |
|
LZ1-00R400-0000EMITTER IR 850NM 1.2A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Infrared (IR) | 1.2A | - | 850nm | 1.7V | 90° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
LZ1-00UA00-0000EMITTER UV 395NM 1A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 385nm ~ 410nm | 4.1V | 74° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
LZ1-00UA00-00U4EMITTER UV 390NM 1A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 390nm | 4.1V | 74° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
LZ1-00UA00-00U5EMITTER UV 395NM 1A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 395nm | 4.1V | 74° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
LZ1-00UA00-00U6EMITTER UV 400NM 1A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 400nm | 4.1V | 74° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
LZ1-00UA00-00U7EMITTER UV 405NM 1A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 405nm | 4.1V | 74° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
LZ1-00UA00-00U8EMITTER UV 410NM 1A SMD |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 410nm | 4.1V | 74° | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
LZ1-00UV00-0000EMITTER UV 365NM 1A SMD |
0 | - |
|
데이터시트 |
LuxiGen™ LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Ultraviolet (UV) | 1A | - | 365nm | 4.1V | 70° | Top View | 115°C (TJ) | - | - | Surface Mount |
|
LZ4-00U600-0000EMITTER UV 365NM 700MA SMD |
0 | - |
|
데이터시트 |
LZ4 | 8-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 700mA | - | 365nm | 16.4V | 115° | Top View | 100°C (TJ) | - | - | Surface Mount |
|
LZ4-00UA00-0000EMITTER UV 395NM 1A |
0 | - |
|
데이터시트 |
LZ4 | 8-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 385nm ~ 410nm | 4.1V | 97° | Top View | 125°C (TJ) | - | - | Screw Mount |
|

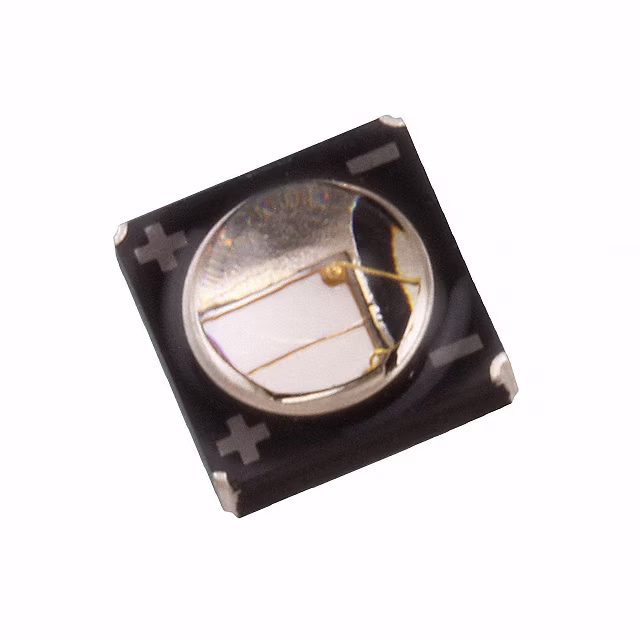

LZ1-00UB00-00U6EMITTER UV 400NM 1A |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Ultraviolet (UV) | 1A | - | 400nm | 3.7V | 68° | Top View | 130°C (TJ) | - | - | Surface Mount |
|
LZ1-00UB00-00U7EMITTER UV 405NM 1A |
0 | - |
|
데이터시트 |
LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Ultraviolet (UV) | 1A | - | 405nm | 3.7V | 68° | Top View | 130°C (TJ) | - | - | Surface Mount |
|
LZ1-10UB00-00U6EMITTER UV 400NM 1A |
0 | - |
|
데이터시트 |
LZ1 | Star Array | Tray | Discontinued at Digi-Key | Ultraviolet (UV) | 1A | - | 400nm | 4.2V | 68° | Top View | 130°C (TJ) | - | - | Screw Mount |
|
EAILP05RDBA4EMITTER IR 940NM 100MA RADIAL |
0 | - |
|
데이터시트 |
- | Radial | Bulk | Active | Infrared (IR) | 100mA | 4mW/sr @ 20mA | 940nm | 1.2V | 30° | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
|
EAILP05RDDA8EMITTER IR 940NM 100MA RADIAL |
0 | - |
|
데이터시트 |
- | Radial | Bulk | Active | Infrared (IR) | 100mA | 7.8mW/sr @ 20mA | 940nm | 1.2V | 40° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
|
EAILP05RDDA9EMITTER IR 940NM 100MA RADIAL |
0 | - |
|
데이터시트 |
- | Radial | Bulk | Active | Infrared (IR) | 100mA | 7.8mW/sr @ 20mA | 940nm | 1.2V | 30° | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
