홈 > 제품 > 광전자 > LED 방출기 - 적외선, 자외선, 가시광선

LED 방출기 - 적외선, 자외선, 가시광선

제조업체	시리즈	패키지/케이스	패키징	제품 상태	유형	전류 - DC 순방향(If)(최대)	방사 강도(Ie) 최소 @ If	파장	전압 - 정방향(Vf)(일반)	시야각	방향	작동 온도	등급	자격	장착 유형
Adafruit Industries LLC Advanced Photonix American Bright Optoelectronics Corporation American Opto Plus LED Corp. ams-OSRAM USA INC. Asahi Kasei Microdevices/AKM Axetris Bivar Inc. Bridgelux Broadcom Limited CEL ChromeLED Citizen Finedevice Co Ltd Crystal IS Dialight Electroverge EPIGAP OSA Photonics Everlight Electronics Excelitas Technologies Fairchild Semiconductor Harvatek Corporation Honeywell Sensing and Productivity Solutions ICP DAS USA INC Innovative Sensor Technology Inolux Irtronix, Inc. Kingbright Kyoto Semiconductor Light-Avenue Lite-On Inc. LTF Technology Lumex Opto/Components Inc. Lumileds Luminus Devices Inc. Marktech Optoelectronics Nexperia Omron Automation and Safety Omron Electronics Inc-EMC Div onsemi Opto Diode Corporation P-tec Panasonic Electronic Components - Semiconductor Products Parallax Inc. QT Brightek Quelighting ROHM Semiconductor Samsung Semiconductor, Inc. Seoul Semiconductor Inc. SETi/Seoul Viosys Sharp Microelectronics SHARP/Socle Technology Solidlite SparkFun Electronics Stanley Electric SunLED TE Connectivity AMP Connectors TE Connectivity Measurement Specialties TT Electronics/Optek Technology VCC (Visual Communications Company) Venkel Vishay Semiconductor Opto Division Würth Elektronik XINGLIGHT XSSY OPTOELECTRONICS CO., LTD.	* - .040 Multilock 0603 0805 1204 1206 250 2520 255 260 275 2835 3030 3528 3535 3535C1 521 7060 8080 AB-3838EJ ARE1-9F40-00000 ARE1-x5x0-00000 ARE1-xxxx-00000 ARE6-xxx1-0xx00 AREM-80C0-xx000 AREM-90C0-xx000 AREQ-8x20-xx000 AREQ-8xC0-xx000 AREQ-9x20-xx000 AREQ-9xC0-xx000 AREQ-xx20 AREQ-xxC0 AT353AF AU3535A AU3535B AU3535C AU3535D AUV3-Sxx2-0xx0K AUV4 AUV4-Sxx1-0xx0J BIOFY® C03 CA3535 CBM-160X-UV CBM-40 CBT-39-UV CBT-90-UV Chip LED Lens CHIPLED CTL EAIST3535A0 EAIST3535A1 EAIST3535A2 EAIST3535A3 EAIST3535A4 EAUVA2016 EAUVA35352 EAUVA35353 ELM-4000 ELM-5000 ELUA2016OGB ELUA2835TG0 ELUA3020LUB ELUA3535NU3 ELUA3535NU6 ELUA3535OG5 ELUA3535OGB ELUA4545OG3 ELUC3535NUB EMC 3030 UV LED EMIRS200 EOLD-81 F3 F5 FIREFLY® Heli-R High Power HISbasic HISpower HISsmd HR3P-N1xC-00000 HR3P-N4xC-00000 HSDL-4400 HSDL-4420 IN-C33(X)TN UV IN-C33(X)TOIR IN-C35PU(X)TD UVC IN-C39(X)TK UVC IN-C39(X)TO UV IN-C40PU(X)TK UVC IN-C68QA(X)TM UV IN-S63WT Infrared Emitter INV-KIT INV-P53CT IR Emitter LA Lamp LED Chip Converted Red LED Chip Hyper Blue LED Chip Standard Blue LED Chip Standard Green LED Chip Ultraviolet LP-0650-011 LP-0850-011 LS-0370 LS-0405 LS-0450 LS-0470 LS-0505 LS-0525 LS-0730 LS-0810 LS-0880 LS-0905 LS-0940 LS-1050 LS-1300 LS-1550 LTPL-C16 LTPL-G35UVC LUXEON IR 2720 Line LUXEON IR Compact LUXEON IR Domed LUXEON IR Domed for Automotive LUXEON IR Domed Gen 2 LUXEON IR Domed Line LUXEON UV LUXEON UV FC Line LUXEON UV FC1 LUXEON UV FC2 LUXEON UV U Line LUXEON UV U1 LUXEON UV U2 LUXEON Z UV LuxiGen™ LZ1 LuxiGen™ LZ4 LuxiGen™ LZC LuxiGen™ LZP LZ1 LZ4 LZC LZP M2M Mid Power MIDLED MIDLED® MIDLED® Mini MIDLED® T Mosaic Array MTE-F11 MTE-F13 MTE-H21 MTE-H32 MTE-H33 MTE-H41 MULTILED® OCI-490 OCL-480 OCL-490 OCU-430 OIS-150 OIS-330 OP265AA OP266AA OP290 Optan BL OS-CORE® AlGaAs OSLON® Black OSLON® P1616 OSLON® Piccolo OSLON® Square OSLON® UV 3535 OSLON® UV 3636 OSLON® UV 6060 OSLUX OSLUX® Ostar PicoLED™ Platinum DRAGON PLCC-4 Point Source Power TOPLED® Premium Edition Blue Premium Edition Hyper Blue Premium Edition Standard Blue Premium Edition Ultra Blue Premium Edition Ultra Red PX Series QBHP4545 QBHP5050E-UVxxxBK QBHP684E-IR1500Y QBHP6868E-UVxxxK QBLP595 QBLP601 QBLP613 QBLP630 QBLP650 QBLP651 QBLP653 QBLP670 QBLP676 QBLP679 QBPH684E-UV QBTO46XY-UVZ QuasarBrite SA SADC SBM-120-UV SBT-10X-UV SFH SIDELED SPX 1189 SST-05-IR SST-06-IRD SST-10-IR SST-10-IRD SST-10-UV SST-10-UV Horticulture SurfLight™ SWDC SYNIOS® P2720 T1691UV TO-18 TOPLED TZ UV 3030 UV LED UV-C LED UVB LED UVC LED UVM001 UVM002A UVM003A VCSEL Visible Emitter Visible Red LED VSMB294008 VSMY2943 WD WL-SICW WL-SIMW WL-SIQW WL-SIRW WL-SISW WL-SITW WL-SMDC WL-SMTW WL-SUMW WL-SUTW WL-TIRC WL-TIRW XBT-1313-UV XBT-1313-UV Horticulture XBT-3535-UV Horticulture XST-3535-UV Horticulture	- 0402 (1005 Metric) 0404 (1010 Metric) 0505 (1313 Metric) 0603 (1608 Metric) 0606 (1616 Metric) 0805 (2012 Metric) 0806 (2016 Metric) 10-DIP 1108 (2720 Metric) 12-DIP 12-SMD, No Lead 1205 (3212 Metric) 1206 (3016 Metric) 1206 (3216 Metric) 1209 (3224 Metric) 1210 (3225 Metric) 1212 (3030 Metric) 14-DIP 1411 (3528 Metric) 1414 (3535 Metric) 1515 (3838 Metric) 16-DIP 1616 (4040 Metric) 18-DIP 1808 (4520 Metric) 2-DIP (0.100", 2.54mm) 2-LCC (J-Lead) 2-PLCC 2-SMD, Boomerang 2-SMD, Flat Leads 2-SMD, Gull Wing 2-SMD, Gull Wing, Exposed Pad 2-SMD, J-Lead 2-SMD, No Lead 2-SMD, No Lead Exposed Pad 2-SMD, Side View 2-SMD, Yoke Bend 2-SMD, Z-Bend 2-SMD, Z-Bend, Bottom Entry 20-DIP (0.300", 7.62mm) 2012 (5030 Metric) 2015 (5138 Metric) 2020 (5050 Metric) 24-SMD, No Lead Exposed Pad 2424 (6060 Metric) 2525 (6464 Metric) 2727 (6868 Metric) 2820 2828 (7070 Metric) 3-SMD, No Lead 3-SMD, No Lead Exposed Pad 4-DIP (0.100", 2.54mm) 4-DIP (0.200", 5.08mm) 4-PLCC 4-SMD, Flat Leads 4-SMD, J-Lead 4-SMD, J-Leads 4-SMD, No Lead 4-SMD, No Lead Exposed Pad 6-PLCC 6-SDIP (0.071", 1.80mm) 6-SMD, J-Lead 6-SMD, No Lead 8-SMD, No Lead 8-SMD, No Lead Exposed Pad Axial Axial, Flat Leads Ceramic Coaxial, Metal Can Die Flying Leads Metallized Ceramic Mini Mini-pill Module Module, Wire Leads Nonstandard SMD Pigtail Pill, Round Radial Radial - 2 Lead, Formed Radial, 1.8mm (T-3/4) Radial, 3mm Dia (T-1) Radial, 5mm Dia (T 1 3/4) Radial, Can Radial, Lensed Metal Can, TO-46-2 Radial, Metal Can Radial, Metal Can, Lensed - 4 Lead Radial, Side View SMR® Star Array T 1 3/4 T 3/4 T-1 TO-18 small TO-18-2 TO-18-2 Metal Can TO-205AD, TO-39-3 Metal Can TO-206AA, TO-18-3 Metal Can TO-206AB, TO-46-3 Metal Can TO-213AA, TO-66-2 TO-39-2 Lens Top Metal Can TO-39-2 Metal Can TO-39-3 Metal Can TO-46-2 TO-46-2 Lens Top Metal Can TO-46-2 Metal Can TO-46-4 Lens Top Metal Can TO-5 Variant, 2 Leads, Lens Top Metal Can TO-5 Variant, 8 Leads, Lens Top Metal Can TO-51-2 Metal Can TO-8 Style, 2 Lead TO-Variant-2 Metal Can	- Bag Box Bulk Cut Tape (CT) Retail Package Sheet Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Key Last Time Buy Not For New Designs Obsolete	- Infrared (IR) Infrared (IR), Visible Ultraviolet (UV) Visible	- 1.05A 1.1A 1.25A 1.2A 1.4A 1.5A 1.6A 100mA 100mA (x2), 100mA (x2), 50mA (x2) 100mA (x6) 100mA, 100mA, 100mA, 50mA 100mA, 100mA, 50mA 10mA 120mA 125mA 12A 130mA 140mA 150mA 15mA 16A 170mA 175mA 180mA 18A 1A 1A (x4) 2.5A 200mA 20mA 22.5A 225mA 24A 250mA 25mA 27A 2A 3.2A 300mA 30A 30mA 30mA, 40mA, 60mA 350mA 35mA 3A 400mA 40mA 40mA, 30mA, 60mA 40mA, 80mA, 200mA 4A 500mA 50mA 50mA (x3) 50mA (x6) 50mA, 30mA 5A 600mA 60mA 60mA UVA, 120mA UVC 65mA 660mA 6A 7.5A 700mA 70mA 750mA 75mA 7A 800mA 80mA 80mA, 80mA, 80mA, 50mA, 50mA 8A 900mA	- 0.013mW/cm² @ 300mA 0.023mW/cm² @ 500mA 0.024mW/cm² @ 300mA 0.02mW/cm² @ 600mA 0.037mW/cm² @ 600mA 0.03mW/cm² @ 20mA 0.05mW/cm² @ 20mA 0.09mW/cm² @ 500mA 0.11mW/cm² @ 20mA 0.152mW/cm² @ 500mA 0.16mW/sr @ 100mA 0.18mW/cm² @ 20mA 0.1mW/cm² @ 20mA 0.1mW/sr @ 20mA 0.27mW/cm² @ 20mA 0.28mW/cm² @ 20mA 0.28mW/sr @ 20mA 0.28mW/sr @ 60mA 0.2mW/cm² @ 20mA 0.2mW/cm² @ 50mA 0.2mW/sr @ 20mA 0.2mW/sr @ 65mA 0.32mW/sr @ 50mA 0.33mW/cm² @ 20mA 0.35mW/cm² @ 20mA 0.35mW/sr @ 20mA 0.35mW/sr @ 50mA 0.36mW/cm² @ 20mA 0.36mW/cm² @ 4mA 0.3mW/cm² @ 20mA 0.3mW/cm² @ 50mA 0.3mW/sr @ 20mA 0.43mW/cm² @ 20mA 0.45mW/cm² @ 20mA 0.45mW/sr @ 50mA 0.45mW/sr @ 60mA 0.47mW/sr @ 20mA 0.48mW/cm² @ 20mA 0.4mW/cm² @ 20mA 0.4mW/cm² @ 50mA 0.4mW/sr @ 20mA 0.50mW/cm² @ 100mA 0.50mW/sr @ 20mA 0.54mW/cm² @ 20mA 0.57mW/sr @ 20mA 0.58mW/cm² @ 20mA 0.5mW/cm² @ 20mA 0.5mW/sr @ 100mA 0.5mW/sr @ 20mA 0.5mW/sr @ 20mA (Typ) 0.5mW/sr @ 30mA 0.5mW/sr @ 50mA 0.5mW/sr @ 65mA 0.5mW/sr @ 70mA 0.63mW/sr @ 50mA 0.64mW/cm² @ 20mA 0.64mW/sr @ 20mA 0.65mW/cm² @ 20mA 0.662mW/sr @ 20mA 0.6mW/cm² @ 50mA 0.6mW/sr @ 20mA 0.6mW/sr @ 30mA 0.6mW/sr @ 50mA 0.71mW/sr @ 60mA 0.75mW/sr @ 70mA 0.7mW/sr @ 20mA 0.7mW/sr @ 50mA 0.7mW/sr @ 65mA 0.85mW/cm² @ 20mA 0.85mW/sr @ 20mA (Typ) 0.8mW/sr @ 10mA 0.8mW/sr @ 20mA 0.8mW/sr @ 20mA (Typ) 0.8mW/sr @ 50mA 0.9mW/sr @ 20mA 1.05mW/cm² @ 20mA 1.12mW/sr @ 60mA 1.15mW/sr @ 20mA 1.1mW/cm² @ 20mA 1.1mW/sr @ 20mA 1.1mW/sr @ 20mA (Typ) 1.25mW/cm² @ 20mA (Typ) 1.25mW/sr @ 100mA 1.29mW/sr @ 100mA 1.2mW/cm² @ 20mA 1.2mW/cm² @ 50mA 1.2mW/sr @ 100mA (Typ) 1.2mW/sr @ 20mA 1.2mW/sr @ 20mA (Typ) 1.2mW/sr @ 50mA 1.2mW/sr @ 50mA (Typ) 1.2mW/sr @ 70mA 1.38mW/sr @ 20mA 1.3mW/sr @ 50mA 1.4mW/cm² @ 20mA 1.4mW/sr @ 20mA (Typ) 1.4mW/sr @ 30mA 1.5mW/cm² @ 100mA 1.5mW/cm² @ 20mA 1.5mW/sr @ 20mA 1.5mW/sr @ 50mA 1.64mW/sr @ 50mA 1.65mW/cm² @ 20mA 1.65mW/sr @ 20mA 1.6mW/sr @ 100mA 1.6mW/sr @ 20mA 1.6mW/sr @ 40mA 1.6mW/sr @ 50mA 1.7mW/cm² @ 20mA 1.7mW/sr @ 20mA 1.7mW/sr @ 50mA 1.83mW/sr @ 50mA 1.8mW/cm² @ 50mA 1.8mW/sr @ 20mA 1.8mW/sr @ 50mA 1.8mW/sr @ 70mA 1.95mW/cm² @ 20mA 1.9mW/sr @ 30mA 1.9mW/sr @ 50mA 1000mW/sr @ 100mA 1000mW/sr @ 700mA 100mW/cm² @ 100mA (Typ) 100mW/sr @ 100mA 100mW/sr @ 100mA (Typ) 100mW/sr @ 1A 100mW/sr @ 20mA 100mW/sr @ 250mA 100mW/sr @ 70mA 100mW/sr @ 70mA (Typ) 1083mW/sr @ 1.5A 10mW/cm² @ 70mA (Typ) 10mW/sr 10mW/sr @ 100mA 10mW/sr @ 150mA 10mW/sr @ 20mA 10mW/sr @ 50mA 10mW/sr @ 5mA 10mW/sr @ 65mA (Typ) 10mW/sr @ 70mA 11.2mW/cm² @ 70mA 11.2mW/sr @ 100mA 11.2mW/sr @ 30mA 11.5mW/cm² @ 20mA 11.78mW/sr @ 50mA 1100mW/sr @ 100mA 1100mW/sr @ 700mA 110mW/cm² @ 150mA (Typ) 110mW/sr @ 100mA 110mW/sr @ 350mA (Typ) 112.5mW/sr @ 100mA 1120mW/sr @ 1A 112mW/sr @ 1A 112mW/sr @ 350mA 1130mW/sr @ 1A (Typ) 114mW/sr @ 100mA (Typ) 1150mW/sr @ 1A (Typ) 1190mW/sr @ 1A (Typ) 11mW/sr @ 100mA 11mW/sr @ 100mA (Typ) 11mW/sr @ 20mA 11mW/sr @ 50mA (Typ) 11mW/sr @ 70mA 12.5mW/sr @ 100mA 12.5mW/sr @ 100mA (Typ) 1200mW/sr @ 1.5A 120mW 120mW/sr @ 100mA 120mW/sr @ 700mA (Typ) 1237mW/sr @ 1.5A 124mW/sr @ 100mA 1250mW/sr @ 1A 1255mW/sr @ 1A (Typ) 125mW/sr @ 1A (Typ) 1265mW/sr @ 1A (Typ) 1270mW/sr @ 1A (Typ) 1270mW/sr @ 2A (Typ) 12mW/sr @ 100mA 12mW/sr @ 20mA 12mW/sr @ 50mA 12mW/sr @ 65mA 12mW/sr @ 70mA 13.4mW/sr @ 70mA (Typ) 13.81mW/sr @ 50mA 1300mW/sr @ 1.5A 1300mW/sr @ 1A (Typ) 1300mW/sr @ 2A 130mW/sr @ 100mA 130mW/sr @ 1A 130mW/sr @ 250mA 1335mW/sr @ 1A (Typ) 13mW/sr @ 100mA (Typ) 13mW/sr @ 150mA 13mW/sr @ 50mA 13mW/sr @ 70mA 14.4mW/sr @ 70mA (Typ) 1400mW/sr @ 1.5A 1400mW/sr @ 1A 140mW/cm² @ 100mA (Typ) 140mW/sr @ 100mA 140mW/sr @ 1A 140mW/sr @ 350mA 140mW/sr @ 500mA 145mW/sr @ 500mA 14mW/cm² @ 150mA (Typ) 14mW/sr @ 100mA 14mW/sr @ 500mA (Typ) 15.4W @ 1A 15.5mW/cm² @ 20mA 1500mW/cm² @ 3000mA (Typ) 1500mW/sr @ 2A 150mW/sr @ 100mA 150mW/sr @ 150mA 150mW/sr @ 1A 150mW/sr @ 1A (Typ) 150mW/sr @ 700mA 150mW/sr @ 700mA (Typ) 15mW/sr @ 100mA 15mW/sr @ 20mA 15mW/sr @ 30mA 15mW/sr @ 35mA 15mW/sr @ 50mA 15mW/sr @ 50mA (Typ) 15mW/sr @ 65mA (Typ) 15mW/sr @ 70mA 16.5mW/sr @ 100mA 160mW/cm² @ 800mA (Typ) 160mW/sr @ 100mA 160mW/sr @ 1A 160mW/sr @ 1A (Typ) 160mW/sr @ 350mA 160mW/sr @ 350mA (Typ) 164mW/sr @ 700mA (Typ) 16mW/sr @ 100mA 16mW/sr @ 20mA 16mW/sr @ 70mA 170mW/sr @ 1A 175mW/sr @ 1A 175mW/sr @ 500mA 17mW/sr @ 100mA 17mW/sr @ 100mA (Typ) 180mW/cm² @ 800mA (Typ) 180mW/sr @ 100mA 180mW/sr @ 100mA (Typ) 180mW/sr @ 1A 180mW/sr @ 1A (Typ) 180mW/sr @ 350mA (Typ) 18mW 18mW/sr @ 100mA 18mW/sr @ 350mA 18mW/sr @ 500mA 18mW/sr @ 50mA 19.42mW/sr @ 50mA 190mW/sr 190mW/sr @ 1A 1mW/cm² @ 100mA 1mW/cm² @ 20mA 1mW/cm² @ 50mA 1mW/sr @ 100mA 1mW/sr @ 20mA 1mW/sr @ 30mA 1mW/sr @ 50mA 1mW/sr @ 65mA 1mW/sr @ 70mA 2.1mW/sr @ 20mA 2.1mW/sr @ 50mA (Typ) 2.25mW/sr @ 20mA 2.2mW/sr @ 20mA 2.2mW/sr @ 50mA 2.4mW/cm² @ 20mA 2.4mW/sr @ 20mA 2.57mW/sr @ 50mA 2.5mW/cm² @ 70mA 2.5mW/sr @ 100mA 2.5mW/sr @ 20mA 2.5mW/sr @ 40mA 2.5mW/sr @ 50mA 2.6mW/cm² @ 100mA 2.7mW/cm² @ 20mA 2.8mW/cm² @ 100mA (Typ) 2.8mW/sr @ 150mA 2.8mW/sr @ 20mA 2.8mW/sr @ 30mA 2.8mW/sr @ 60mA 2.8mW/sr @ 70mA 2.9mW/sr @ 20mA 200mW 200mW/cm² @ 500mA (Typ) 200mW/sr @ 100mA 200mW/sr @ 1A 200mW/sr @ 500mA 205mW/sr @ 1A 205mW/sr @ 1A (Typ) 20mW/cm² @ 20mA 20mW/cm² @ 20mA, 2.5mW/cm² @ 60mA 20mW/cm² @ 70mA (Typ) 20mW/sr @ 100mA 20mW/sr @ 150mA 20mW/sr @ 20mA 20mW/sr @ 20mA (Typ) 20mW/sr @ 35mA 20mW/sr @ 50mA 20mW/sr @ 65mA 20mW/sr @ 70mA 21.6mW/sr @ 300mA (Typ) 210mW/sr @ 1A (Typ) 210mW/sr @ 700mA (Typ) 215mW/sr @ 1A 21mW/sr @ 100mA 21mW/sr @ 20mA 22.5mW/sr @ 50mA 2200mW/sr @ 1A 220mW/sr @ 1A (Typ) 220mW/sr @ 350mA (Typ) 224mW/sr @ 1.5A 224mW/sr @ 1A 225mW/sr @ 100mA 225mW/sr @ 1A 225mW/sr @ 500mA 22mW/cm² @ 70mA (Typ) 22mW/sr @ 100mA 22mW/sr @ 100mA (Typ) 22mW/sr @ 50mA 2300mW/sr @ 1A 230mW/sr @ 1A 230mW/sr @ 250mA 23mW/sr @ 100mA (Typ) 2400mW/sr @ 1A 24mW/sr @ 50mA 250mW/sr 250mW/sr @ 100mA 250mW/sr @ 1A 250mW/sr @ 1A (Typ) 250mW/sr @ 350mA 250mW/sr @ 500mA 250mW/sr @ 700mA (Typ) 255mW/sr @ 50mA (Typ) 25mW/cm² @ 100mA (Typ) 25mW/cm² @ 70mA (Typ) 25mW/sr @ 100mA 25mW/sr @ 100mA (Typ) 25mW/sr @ 20mA 25mW/sr @ 35mA 25mW/sr @ 50mA 25mW/sr @ 70mA 260mW/sr @ 1A (Typ) 26mW/sr @ 50mA 27.2mW/sr @ 50mA 270mW 270mW/sr @ 1A 270mW/sr @ 700mA 275mW/sr @ 500mA 27mW/sr @ 100mA 27mW/sr @ 350mA (Typ) 28.5mW/sr @ 100mA 28.5mW/sr @ 50mA 28.5mW/sr @ 70mA 280mW/cm² @ 800mA (Typ) 280mW/sr @ 1A 280mW/sr @ 1A (Typ) 280mW/sr @ 350mA 280mW/sr @ 350mA (Typ) 28mW/sr @ 100mA 28mW/sr @ 1A 28mW/sr @ 20mA 28mW/sr @ 350mA 28mW/sr @ 700mA 295mW/sr @ 500mA 295mW/sr @ 500mA (Typ) 29mW/sr @ 350mA (Typ) 2mW/sr @ 100mA 2mW/sr @ 20mA 2mW/sr @ 20mA (Typ) 2mW/sr @ 30mA 2mW/sr @ 35mA 2mW/sr @ 50mA 2mW/sr @ 60mA 2mW/sr @ 65mA 3.15mW/sr @ 100mA 3.2mW/sr @ 30mA 3.2mW/sr @ 50mA 3.31mW/sr @ 20mA 3.3mW/sr @ 100mA (Typ) 3.4mW/sr @ 20mA 3.5mW/cm² @ 100mA 3.5mW/cm² @ 50mA 3.5mW/sr @ 100mA 3.5mW/sr @ 50mA 3.6mW/sr @ 30mA 3.6mW/sr @ 80mA 3.7mW/sr @ 80mA 3.8mW/sr @ 50mA 300mW/sr @ 100mA 300mW/sr @ 1A 300mW/sr @ 1A (Typ) 300mW/sr @ 500mA 305mW/sr @ 1A (Typ) 30mW 30mW/cm² @ 350mA (Typ) 30mW/sr @ 100mA 30mW/sr @ 20mA 30mW/sr @ 250mA 30mW/sr @ 50mA 30mW/sr @ 70mA 31.2mW/sr @ 60mA 310mW/sr @ 1A 310mW/sr @ 350mA (Typ) 310mW/sr @ 50mA (Typ) 31mW/sr @ 100mA 320mW/sr @ 1A 320mW/sr @ 1A (Typ) 320mW/sr @ 700mA (Typ) 325mW/sr @ 500mA 32mW/sr @ 100mA 32mW/sr @ 70mA 330mW/sr @ 1A (Typ) 330mW/sr @ 500mA 330mW/sr @ 700mA (Typ) 335mW/sr @ 1A (Typ) 340mW/sr @ 50mA (Typ) 350mW/sr 350mW/sr @ 100mA 350mW/sr @ 1A 350mW/sr @ 1A (Typ) 350mW/sr @ 20mA 350mW/sr @ 350mA 350mW/sr @ 500mA 350mW/sr @ 700mA 350mW/sr @ 700mA (Typ) 355mW/sr @ 1.5A 355mW/sr @ 1A 355mW/sr @ 350mA 35mW/sr @ 100mA 35mW/sr @ 50mA 35mW/sr @ 70mA 35mW/sr @ 70mA (Typ) 360mW/sr @ 1A (Typ) 365mW/sr @ 350mA (Typ) 36mW/sr @ 100mA 36mW/sr @ 20mA 370mW/sr @ 1.5A 370mW/sr @ 1A 370mW/sr @ 2A (Typ) 370mW/sr @ 700mA (Typ) 375mW/sr @ 500mA 3800mW/sr @ 700mA 380mW/sr @ 350mA (Typ) 38mW/sr @ 100mA (Typ) 390mW/sr @ 1A 39mW/sr @ 100mA 39mW/sr @ 50mA 3mW 3mW/cm² @ 100mA 3mW/cm² @ 150mA (Typ) 3mW/cm² @ 350mA (Typ) 3mW/sr @ 100mA 3mW/sr @ 20mA 3mW/sr @ 35mA 3mW/sr @ 50mA 3mW/sr @ 65mA 3mW/sr @ 70mA 4.3mW/sr @ 100mA 4.5mW/sr @ 20mA (Typ) 4.5mW/sr @ 50mA 4.5mW/sr @ 70mA (Typ) 4.81mW/sr @ 20mA 4.8mW/sr @ 20mA (Typ) 400mW/sr @ 100mA 400mW/sr @ 1A 400mW/sr @ 1A (Typ) 400mW/sr @ 500mA (Typ) 400mW/sr @ 50mA (Typ) 400mW/sr @ 700mA (Typ) 400mW/sr @ 70mA 408mW/sr @ 1.5A (Typ) 40mW/sr @ 100mA 40mW/sr @ 100mA (Typ) 40mW/sr @ 20mA (Typ) 40mW/sr @ 350mA 40mW/sr @ 500mA 40mW/sr @ 50mA 40mW/sr @ 65mA 40mW/sr @ 70mA 40mW/sr @ 80mA 410mW/sr @ 1A (Typ) 415mW/sr @ 1A 420mW/sr 420mW/sr @ 1A 425mW/sr @ 1.5A (Typ) 425mW/sr @ 1A 425mW/sr @ 500mA 430mW/sr @ 1A 435mW/sr @ 500mA 440mW/sr @ 1A 450mW/sr @ 1A 450mW/sr @ 1A (Typ) 450mW/sr @ 350mA 450mW/sr @ 500mA 450mW/sr @ 700mA 450mW/sr @ 800mA 45mW/cm² @ 350mA (Typ) 45mW/sr @ 100mA 45mW/sr @ 1A 45mW/sr @ 350mA 45mW/sr @ 50mA 45mW/sr @ 70mA 45mW/sr @ 80mA 460mW/sr @ 1A 470mW/sr @ 500mA 475mW/sr @ 500mA 4800mW/sr @ 700mA 490mW/sr @ 1.5A 4mW/cm² @ 100mA 4mW/sr @ 100mA 4mW/sr @ 20mA 4mW/sr @ 30mA 4mW/sr @ 35mA 4mW/sr @ 50mA 4mW/sr @ 65mA 4mW/sr @ 70mA 5.05mW/sr @ 50mA 5.3mW/cm² @ 100mA (Typ) 5.5mW/cm² @ 20mA 5.5mW/sr @ 20mA 5.5mW/sr @ 70mA 5.5mW/sr @ 70mA (Typ) 5.6mW/sr @ 100mA 5.6mW/sr @ 20mA 5.6mW/sr @ 50mA 5.8mW/sr @ 100mA (Typ) 500mW/sr @ 1A 500mW/sr @ 2A 500mW/sr @ 500mA 50mW/cm² @ 100mA (Typ) 50mW/cm² @ 350mA (Typ) 50mW/cm² @ 70mA (Typ) 50mW/sr @ 100mA 50mW/sr @ 100mA (Typ) 50mW/sr @ 150mA 50mW/sr @ 350mA 50mW/sr @ 40mA 50mW/sr @ 500mA 50mW/sr @ 50mA 50mW/sr @ 70mA 513mW/sr @ 350mA 515mW/sr @ 1.5A 525mW/sr @ 500mA 530mW/sr @ 1.5A (Typ) 550mW/sr @ 100mA 550mW/sr @ 1A 550mW/sr @ 500mA 55mW/cm² @ 100mA (Typ) 55mW/sr @ 100mA 55mW/sr @ 50mA 55mW/sr @ 70mA 55mW/sr @ 70mA (Typ) 560mW/sr @ 1.5A 560mW/sr @ 1A 560mW/sr @ 1A (Typ) 560mW/sr @ 350mA 56mW/sr @ 100mA 570mW/cm² @ 1000mA 575mW/sr @ 500mA 59mW/sr @ 350mA (Typ) 5mW/cm² @ 100mA 5mW/cm² @ 40mA (Typ) 5mW/cm² @ 50mA 5mW/sr @ 100mA 5mW/sr @ 20mA 5mW/sr @ 20mA (Typ) 5mW/sr @ 350mA (Typ) 5mW/sr @ 50mA 5mW/sr @ 65mA 5mW/sr @ 70mA 6.02mW/sr @ 20mA 6.3mW/sr @ 100mA 6.3mW/sr @ 70mA 6.5mW/cm² @ 100mA 6.5mW/cm² @ 30mA (Typ) 6.5mW/cm² @ 50mA (Typ) 6.5mW/sr @ 100mA (Typ) 6.5mW/sr @ 20mA 6.5mW/sr @ 20mA (Typ) 6.77mW/sr @ 20mA 60mW 60mW/sr @ 100mA 60mW/sr @ 350mA 60mW/sr @ 500mA 60mW/sr @ 50mA 60mW/sr @ 70mA 625mW/sr @ 500mA 630mW/sr @ 1.5A 630mW/sr @ 100mA 630mW/sr @ 1A 63mW/sr @ 100mA 63mW/sr @ 70mA 640mW/sr @ 1A 650mW/sr @ 1A (Typ) 650mW/sr @ 500mA 65mW/sr @ 100mA 65mW/sr @ 100mA (Typ) 65mW/sr @ 500mA (Typ) 67.2mW/sr @ 50mA 675mW/sr @ 500mA 680mW/sr @ 1A 680mW/sr @ 1A (Typ) 6mW 6mW/sr @ 100mA 6mW/sr @ 20mA 6mW/sr @ 50mA 6mW/sr @ 60mA 7.0mW/cm² @ 100mA 7.1mW/sr @ 20mA 7.1mW/sr @ 60mA 7.1mW/sr @ 80mA 7.5mW/cm² @ 100mA (Typ) 7.5mW/cm² @ 150mA (Typ) 7.5mW/cm² @ 20mA 7.5mW/cm² @ 30mA (Typ) 7.5mW/cm² @ 50mA (Typ) 7.5mW/sr @ 20mA 7.5mW/sr @ 50mA 7.8mW/sr @ 100mA 7.8mW/sr @ 20mA 700mW/cm² @ 700mA (Typ) 700mW/sr @ 1.2A 700mW/sr @ 1A (Typ) 70mW/sr @ 100mA 70mW/sr @ 350mA 70mW/sr @ 350mA (Typ) 71.5mW/sr @ 100mA 710mW/sr @ 1A 710mW/sr @ 700mA 71mW/sr @ 100mA 71mW/sr @ 1A 71mW/sr @ 350mA 740mW/sr @ 1A (Typ) 740mW/sr @ 500mA 750mW/cm² @ 1000mA (Typ) 750mW/sr @ 1A 750mW/sr @ 1A (Typ) 750mW/sr @ 500mA 755mW/sr @ 700mA 75mW/sr @ 100mA 76mW/sr @ 100mA 770mW/sr @ 1A (Typ) 780mW/sr @ 1.5A 780mW/sr @ 1A 780mW/sr @ 1A (Typ) 786mW/sr @ 1A 7mW/sr @ 1000mA 7mW/sr @ 100mA 7mW/sr @ 20mA 7mW/sr @ 20mA (Typ) 7mW/sr @ 50mA 7mW/sr @ 65mA 7mW/sr @ 70mA 8.4mW/sr @ 50mA 8.5mW/cm² @ 100mA 8.5mW/sr @ 50mA 800mW/cm² @ 1000mA (Typ) 800mW/sr @ 1.5A 800mW/sr @ 1A 800mW/sr @ 1A (Typ) 80mW/sr @ 100mA 80mW/sr @ 50mA 815mW/sr @ 1A 830mW/sr @ 500mA 830mW/sr @ 700mA 844mW/sr @ 1.5A 850mW/cm² @ 1000mA (Typ) 85mW/sr @ 100mA 875mW/sr @ 1.5A 890mW/sr @ 1A 8mW/cm² @ 100mA (Typ) 8mW/cm² @ 150mA (Typ) 8mW/sr @ 100mA 8mW/sr @ 100mA (Typ) 8mW/sr @ 20mA 8mW/sr @ 35mA 8mW/sr @ 50mA 9.62mW/sr @ 20mA 9.72mW/sr @ 20mA 9.9mW/sr @ 50mA 900mW/cm² @ 1000mA (Typ) 900mW/sr @ 1.5A 900mW/sr @ 1A 90mW/sr @ 100mA 90mW/sr @ 150mA 90mW/sr @ 70mA 910mW/sr @ 500mA 910mW/sr @ 700mA 92mW/sr @ 100mA (Typ) 950mW/cm² @ 700mA (Typ) 95mW/sr @ 350mA 95mW/sr @ 50mA 95mW/sr @ 50mA (Typ) 975mW/sr @ 1.5A 9mW/sr @ 100mA 9mW/sr @ 50mA 9mW/sr @ 50mA (Typ) 9mW/sr @ 70mA	- 1020nm 1020nm (1005nm ~ 1035nm) 1030nm 1040nm 1040nm (1000nm ~ 1100nm) 1040nm (1025nm ~ 1055nm) 1050nm 1050nm (1000nm ~ 1100nm) 1050nm (1030nm ~ 1070nm) 1060nm 1060nm (1040nm ~ 1080nm) 1070nm 1100nm 1100nm (1070nm ~ 1130nm) 1140nm 1140nm (1110nm ~ 1170nm) 1195nm 11µm (2µm ~ 20µm) 1200nm 1200nm (1150nm ~ 1250nm) 1210nm 1300nm 1300nm (1250nm ~ 1350nm) 1300nm (1260nm ~ 1340nm) 1300nm (1270nm ~ 1330nm) 1300nm, 950nm, 850nm, 670nm 1310nm 1350nm 1445nm 1450nm 1450nm (1400nm ~ 1500nm) 1460nm 1500nm 1545nm 1550nm 1550nm (1500nm ~ 1600nm) 1550nm (1510nm ~ 1590nm) 1635nm 1650nm 1650nm (1600nm ~ 1700nm) 1720nm 1735nm 1760nm 1870nm 1885nm 1900nm 1900nm (1850nm ~ 1950nm) 2100nm 2200nm 2300nm 234nm (231nm ~ 237nm) 235nm (230nm ~ 240nm) 236nm 237nm 250nm (245nm ~ 255nm) 255nm 255nm (250nm ~ 260nm) 258nm 260nm (255nm ~ 265nm) 260nm ~ 270nm 265nm 265nm (259nm ~ 269nm) 265nm (260nm ~ 270nm) 265nm ~ 280nm 265nm ~ 285nm 270nm 270nm (260nm ~ 280nm) 270nm ~ 280nm 270nm ~ 285nm 272nm 272nm (265nm ~ 278nm) 273nm (265nm ~ 280nm) 273nm (268nm ~ 278nm) 273nm (270nm ~ 275nm) 273nm (270nm ~ 280nm) 274nm (265nm ~ 280nm) 274nm (270nm ~ 280nm) 275nm 275nm (265nm ~ 280nm) 275nm (270nm ~ 280nm) 277nm 278nm 278nm (265nm ~ 285nm) 278nm (275nm ~ 280nm) 280nm 281nm (275nm ~ 286nm) 283nm (280nm ~ 286nm) 285nm 285nm (280nm ~ 290nm) 295nm 298nm (292nm ~ 303nm) 300nm ~ 315nm 305nm (290nm ~ 320nm) 308nm 308nm (300nm ~ 315nm) 310nm 325nm 340nm 345nm 345nm (340nm ~ 350nm) 355nm 357nm 3600nm 362nm 365nm 365nm (360nm ~ 370nm) 365nm ~ 370nm 365nm ~ 375nm 365nm, 370nm 367nm 367nm (360nm ~ 370nm) 367nm (365nm ~ 370nm) 368nm 368nm (365nm ~ 370nm) 369nm 370nm 370nm (365nm ~ 375nm) 370nm (375nm ~ 365nm) 370nm ~ 375nm 375nm 375nm ~ 380nm 377nm 378nm 380nm 380nm ~ 385nm 380nm ~ 390nm 380nm, 385nm 382nm 383nm 383nm (380nm ~ 385nm) 385nm 385nm (380nm ~ 390nm) 385nm ~ 390nm 385nm ~ 405nm 385nm ~ 410nm 388nm (385nm ~ 390nm) 390nm 390nm ~ 395nm 390nm ~ 400nm 390nm, 395nm 393nm (390nm ~ 395nm) 395nm 395nm (390nm ~ 400nm) 395nm ~ 400nm 398nm (395nm ~ 400nm) 400nm 400nm UVA, 275nm UVC 400nm ~ 405nm 400nm ~ 410nm 400nm, 405nm 402nm 403nm 403nm (400nm ~ 405nm) 405nm 405nm (400nm ~ 410nm) 405nm ~ 410nm 408nm (405nm ~ 410nm) 410nm 410nm ~ 415nm 410nm ~ 420nm 415nm 415nm (410nm ~ 420nm) 415nm ~ 420nm 420nm 420nm (415nm ~ 425nm) 420nm ~ 425nm 425nm 425nm (420nm ~ 430nm) 425nm ~ 430nm 428nm 4300nm 430nm 447nm 450nm 450nm (445nm ~ 455nm) 457nm ~ 463nm 460nm 460nm (x3), 400nm 466nm 470nm 470nm (465nm ~ 475nm) 470nm (467nm ~ 473nm) 4µm (1µm ~ 6µm) 4µm (2µm ~ 6µm) 502nm 520nm 525nm 525nm (515nm ~ 535nm) 525nm, 660nm, 950nm 526nm, 660nm, 950nm 527nm 530nm, 660nm, 950nm 536nm, 660nm, 950nm 560nm 560nm (550nm ~ 570nm) 562nm 570nm 574nm 590nm 595nm 597nm 6.5µm (2µm ~ 11µm) 600nm 610nm 620nm 622nm (617nm ~ 627nm) 630nm 635nm 640nm 643nm 650nm 650nm (640nm ~ 660nm) 657nm 660nm 660nm (650nm ~ 670nm) 660nm, 526nm, 950nm 660nm, 905nm 663nm, 905nm 670nm 670nm (660nm ~ 680nm) 680nm 680nm (670nm ~ 690nm) 685nm 690nm 700nm 720nm 725nm (715nm ~ 735nm) 730nm 730nm (720nm ~ 740nm) 735nm 740nm 740nm (730nm ~ 750nm) 750nm 755nm 760nm 760nm (750nm ~ 770nm) 765nm 770nm 770nm (x3) 770nm (x6) 771nm 780nm 7µm (2µm ~ 11µm) 800nm (790nm ~ 810nm) 810nm 810nm (795nm ~ 825nm) 810nm (800nm ~ 820nm) 810nm (805nm ~ 820nm) 815nm 820nm 830nm 835nm 845nm 845nm (820nm ~ 870nm) 850nm 850nm (830nm ~ 870nm) 850nm (835nm ~ 870nm) 850nm (840nm ~ 860nm) 850nm (840nm ~ 870nm) 850nm (x2), 810nm (x2), 770nm (x2) 850nm ~ 860nm 850nm, 810nm, 770nm 853nm 854nm (850nm ~ 858nm) 855nm 855nm (835nm ~ 875nm) 855nm (840nm ~ 870nm) 855nm (845nm ~ 865nm) 856nm 860nm 860nm (850nm ~ 870nm) 860nm, 950nm 865nm (850nm ~ 880nm) 870nm 870nm (860nm ~ 900nm) 875nm 880nm 880nm (850nm ~ 900nm) 880nm (865nm ~ 895nm) 880nm (870nm ~ 885nm) 880nm (x6) 880nm, 660nm 885nm 890nm 890nm (870nm ~ 910nm) 890nm (875nm ~ 905nm) 8µm (2µm ~ 14µm) 900nm 905nm 905nm (895nm ~ 915nm) 905nm, 660nm 920nm 927nm 930nm 935nm 940nm 940nm (920nm ~ 960nm) 940nm (925nm ~ 955nm) 940nm (930nm ~ 950nm) 940nm (930nm ~ 960nm) 940nm, 660nm 940nm, 880nm, 660nm 940nm, 905nm, 660nm 943nm 945nm 945nm (925nm ~ 955nm) 945nm (930nm ~ 960nm) 945nm (935nm ~ 955nm) 945nm (940nm ~ 950nm) 950nm 950nm (920nm ~ 980nm) 950nm (930nm ~ 970nm) 950nm (x6) 950nm, 810nm, 670nm 950nm, 850nm, 810nm, 770nm, 670nm 980nm 980nm (965nm ~ 995nm) UV-VIS VIS-NIR	- 0.73V 0.75V 0.77V 0.7V 0.84V 0.85V 0.86V 0.87V 0.88V 0.8V 0.8V, 1.25V, 1.45V, 1.8V 0.91V 0.92V 0.93V 0.95V 0.96V 0.99V 0.9V 1.03V 1.05V 1.06V 1.08V 1.15V 1.18V 1.1V 1.22V 1.23V 1.24V 1.25V 1.25V (Max) 1.25V, 1.45V, 1.5V, 1.65V, 1.8V 1.25V, 1.4V 1.25V, 1.6V, 1.8V 1.27V 1.28V 1.28V, 1.5V 1.29V 1.2V 1.2V, 1.3V, 1.4V 1.2V, 1.4V 1.2V, 1.4V, 2.6V 1.2V, 1.5V 1.2V, 1.8V 1.2V, 2.1V 1.2V, 2.6V 1.32V 1.33V 1.34V 1.35V 1.38V 1.3V 1.3V (x6) 1.3V ~ 1.5V 1.3V ~ 1.6V 1.3V ~ 1.7V 1.3V, 1.2V, 1.8V 1.3V, 1.4V 1.3V, 1.4V, 2.6V 1.3V, 1.5V 1.3V, 1.5V, 1.8V 1.3V, 1.7V 1.3V, 1.8V 1.3V, 1.9V, 2.35V 1.3V, 1.9V, 2.3V 1.3V, 1.9V, 2.6V 1.3V, 2.1V, 3.2V 1.3V, 2.1V, 3V 1.42V 1.44V 1.45V 1.45V, 1.66V 1.45V, 1.6V 1.45V, 1.7V 1.45V, 1.8V 1.45V, 1.8V, 4.1V 1.46V 1.475V 1.47V 1.48V 1.49V 1.4V 1.4V (x2), 1.55V (x2), 1.6V (x2) 1.4V (x6) 1.4V ~ 1.7V 1.4V ~ 1.8V 1.4V ~ 2.2V 1.4V, 1.55V 1.4V, 1.55V, 1.6V 1.4V, 1.6V 1.4V, 2.2V 1.4V, 2V 1.51V 1.52V 1.54V 1.55V 1.56V 1.57V 1.58V 1.59V 1.5V 1.5V (Max) 1.5V ~ 1.8V 1.5V ~ 2.3V 1.5V, 1.6V 1.5V, 2.5V 1.64V 1.65V 1.66V 1.675V 1.6V 1.6V (Max) 1.6V (x3) 1.6V (x6) 1.6V, 1.9V, 2.4V 1.75V 1.76V 1.79V 1.7V 1.7V (Max) 1.85V 1.8V 1.8V (Max) 1.8V, 1.26V 1.95V 1.9V 10V (Max) 11.64V 11.6V 12.4V 12V 13.1V 13.2V 13.4V 13.5V 13.8V 14.5V 14.8V 14V 15.2V 15.5V 16.4V 18.3V 18V 1V 2.03V 2.05V 2.06V 2.0V 2.1V 2.2V 2.3V 2.4V 2.5V 2.65V 2.6V (Max) 2.73V 2.75V 2.7V 2.7V ~ 3.3V 2.7V, 2.9V, 3.1V, 3.8V 2.85V 2.8V 2.8V (Max) 2.8V ~ 3.4V 2.8V, 3V, 3.2V, 3.9V 2.95V 2.9V 20.2V 20.9V 21V 22V 24.2V 2V 3.05V 3.15V 3.1V 3.1V, 3.4V, 3.7V 3.25V 3.2V 3.35V 3.3V 3.3V, 3.6V 3.45V 3.4V 3.4V, 3.8V 3.55V 3.5V 3.5V, 3.8V 3.65V 3.6V 3.7V 3.8V 3.8V (Max) 3.9V 3.9V, 10.5V (x3) 3V 3V ~ 3.6V 3V, 6V 4.1V 4.2V 4.35V 4.3V 4.55V 4.5V 4.65V 4.6V 4.72V 42V 43.5V 44V 49V 4V 4V (Max) 5.2V 5.35V 5.5V 5.6V 5.75V 5.7V 5.85V 5.8V 5.9V 5V 6.1V 6.25V 6.2V 6.3V 6.45V 6.5V 6.6V 6.75V 6.8V 6.9V 6V 7.2V 7.4V 7.5V 7.6V 7.8V 7V 8V 8V (Max) 9V	- 100° 104° 105° 10° 110° 110° x 90° 112° 113° 114° 115° 116° 117° 11° 120° 120°, 160° 120°/160° 125° 125°, 145° 12° 130° 130°, 155° 135° 136° 138° 139° 140° 145° 146° 14° 150° 15° 15°, 72° 160° 16° 16°, 70° 17° 180° 18° 200° 20° 20°, 70° 20°, 80° 22° 240° 24° 25° 260° 26° 28° 30° 32° 34° 35° 35°, 65° 36° 37° 38° 4.5° 40° 42° 44° 45° 46° 48° 4° 50° 51°, 71° 54° 55° 55°, 80° 56° 5° 60° 60°/120° 61° 61°, 78° 62.5° 62° 64° 65° 66° 66°/86° 68° 6° 70° 70°, 90° 72° 74° 75° 75°, 90° 76° 7° 80° 85° 8° 90° 95° 95° x 58° 97°	- Side View Side View, Dual Top View Universal	- -10°C ~ 100°C -10°C ~ 45°C -10°C ~ 50°C -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 80°C -10°C ~ 80°C (TC) -10°C ~ 85°C -10°C ~ 85°C (TA) -20°C ~ 100°C (TA) -20°C ~ 60°C -20°C ~ 70°C (TA) -20°C ~ 80°C -20°C ~ 80°C (TA) -20°C ~ 85°C -20°C ~ 85°C (TA) -20°C ~ 90°C (TA) -25°C ~ 100°C (TA) -25°C ~ 60°C (TA) -25°C ~ 65°C (TA) -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C (TA) -25°C ~ 85°C -25°C ~ 85°C (TA) -30°C ~ 100°C -30°C ~ 100°C (TA) -30°C ~ 125°C (TC) -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 80°C (TA) -30°C ~ 85°C -30°C ~ 85°C (TA) -30°C ~ 85°C (TC) -40°C ~ 100°C -40°C ~ 100°C (TA) -40°C ~ 105°C -40°C ~ 105°C (TA) -40°C ~ 105°C (TC) -40°C ~ 110°C -40°C ~ 110°C (TA) -40°C ~ 120°C -40°C ~ 120°C (TA) -40°C ~ 120°C (TC) -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 125°C (TC) -40°C ~ 135°C -40°C ~ 135°C (TA) -40°C ~ 135°C (TJ) -40°C ~ 55°C -40°C ~ 60°C -40°C ~ 65°C -40°C ~ 70°C (TA) -40°C ~ 75°C -40°C ~ 80°C -40°C ~ 80°C (TA) -40°C ~ 85°C -40°C ~ 85°C (TA) -40°C ~ 90°C (TA) -40°C ~ 95°C (TA) -45°C ~ 85°C -45°C ~ 85°C (TA) -55°C ~ 100°C -55°C ~ 100°C (TA) -55°C ~ 125°C (TA) -5°C ~ 50°C -5°C ~ 55°C -5°C ~ 55°C (TC) -65°C ~ 125°C -65°C ~ 125°C (TA) -65°C ~ 150°C -65°C ~ 150°C (TA) 0°C ~ 35°C 0°C ~ 40°C 0°C ~ 50°C (TA) 0°C ~ 60°C 0°C ~ 70°C (TA) 0°C ~ 80°C 100°C 100°C (TJ) 105°C (TJ) 10°C ~ 60°C 110°C 115°C 115°C (TJ) 120°C (TJ) 125°C 125°C (TJ) 130°C (TJ) 145°C (TJ) 150°C (TJ) 5°C ~ 60°C 60°C (TC) 60°C (TJ) 65°C (TJ) 70°C (TJ) 85°C 85°C (TJ) 95°C 95°C (TJ)	- Automotive	- AEC-Q100 AEC-Q101 AEC-Q102	- Chassis Mount Heat Sink Screw Mount Surface Mount Surface Mount, Bottom Entry Surface Mount, Right Angle Through Hole Through Hole, Right Angle

모두 초기화

모두 적용

결과

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	유형	전류 - DC 순방향(If)(최대)	방사 강도(Ie) 최소 @ If	파장	전압 - 정방향(Vf)(일반)	시야각	방향	작동 온도	등급	자격	장착 유형
GL514 EMITTER IR 950NM 150MA TO-18 Sharp Microelectronics	-	RFQ	데이터시트	-	TO-18-2 Metal Can	-	Obsolete	Infrared (IR)	150mA	-	950nm	1.35V	14°	Top View	-40°C ~ 125°C (TA)	-	-	Through Hole
GL453E00000F EMITTER IR 950NM 50MA RADIAL Sharp Microelectronics	-	RFQ	데이터시트	-	Radial	-	Obsolete	Infrared (IR)	50mA	-	950nm	1.2V	46°	Side View, Dual	-25°C ~ 85°C (TA)	-	-	Through Hole
SFH 480-2 EMITTER IR 880NM 200MA RADIAL ams-OSRAM USA INC.	-	RFQ	데이터시트	-	Radial	Bulk	Obsolete	Infrared (IR)	200mA	40mW/sr @ 100mA	880nm	1.5V	12°	Top View	-40°C ~ 125°C (TA)	-	-	Through Hole
SFH 487 P EMITTER IR 880NM 100MA T 3/4 ams-OSRAM USA INC.	-	RFQ	데이터시트	-	T 3/4	Bulk	Obsolete	Infrared (IR)	100mA	2mW/sr @ 100mA	880nm	1.5V	130°	Top View	-40°C ~ 100°C (TA)	-	-	Through Hole

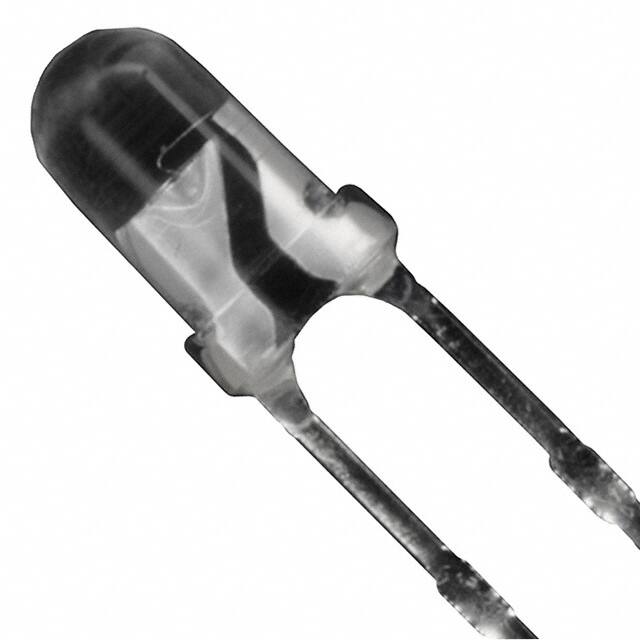

LN69 EMITTER IR 940NM 50MA T-1 Panasonic Electronic Components	-	RFQ	데이터시트	-	T-1	Bulk	Obsolete	Infrared (IR)	50mA	3.5mW/sr @ 50mA	940nm	1.3V	30°	Top View	-25°C ~ 85°C (TA)	-	-	Through Hole
LN75X EMITTER IR 880NM 100MA RADIAL Panasonic Electronic Components	-	RFQ	데이터시트	-	Radial	-	Obsolete	Infrared (IR)	100mA	6mW/sr @ 50mA	880nm	1.5V	50°	Side View	-25°C ~ 85°C (TA)	-	-	Through Hole
LNA2402L EMITTER IR 950NM 100MA TO-18 Panasonic Electronic Components	-	RFQ	데이터시트	-	TO-18-2 Metal Can	-	Obsolete	Infrared (IR)	100mA	5mW/sr @ 100mA	950nm	1.3V	16°	Top View	-25°C ~ 100°C (TA)	-	-	Through Hole
LNA2902L EMITTER IR 950NM 100MA T 1 3/4 Panasonic Electronic Components	-	RFQ	데이터시트	-	T 1 3/4	Bulk	Obsolete	Infrared (IR)	100mA	9mW/sr @ 50mA	950nm	1.4V	40°	Top View	-25°C ~ 85°C (TA)	-	-	Through Hole
LNA4801L EMITTER IR 860NM 100MA T-1 Panasonic Electronic Components	-	RFQ	데이터시트	-	T-1	Bulk	Obsolete	Infrared (IR)	100mA	12mW/sr @ 50mA	860nm	1.6V	44°	Top View	-25°C ~ 85°C (TA)	-	-	Through Hole
F5D1B EMITTER IR 880NM 100MA TO-46 onsemi	-	RFQ	데이터시트	-	TO-46-2 Lens Top Metal Can	Bulk	Obsolete	Infrared (IR)	100mA	-	880nm	1.7V	16°	Top View	-65°C ~ 125°C (TA)	-	-	Through Hole
PDI-E808-A EMITTER IR 880NM 100MA T 1 3/4 Advanced Photonix	-	RFQ	데이터시트	-	T 1 3/4	Tray	Obsolete	Infrared (IR)	100mA	-	880nm	1.5V	-	Top View	-65°C ~ 125°C (TA)	-	-	Through Hole
QEE123E3R0 EMITTER IR 880NM 50MA RADIAL onsemi	-	RFQ	데이터시트	-	Radial, Side View	Tape & Reel (TR)	Obsolete	Infrared (IR)	50mA	8mW/sr @ 100mA	880nm	1.7V	50°	Side View	-40°C ~ 100°C (TA)	-	-	Through Hole
QEB441TR EMITTER VISIBLE 730NM 100MA PLCC onsemi	-	RFQ	데이터시트	-	2-PLCC	Tape & Reel (TR)	Obsolete	Visible	100mA	2mW/sr @ 100mA	730nm	2.1V	120°	Top View	-55°C ~ 100°C (TA)	-	-	Surface Mount
SFH 4205-Z EMITTER IR 950NM 100MA SMD ams-OSRAM USA INC.	-	RFQ	데이터시트	-	2-SMD, Boomerang	Tape & Reel (TR)	Obsolete	Infrared (IR)	100mA	4mW/sr @ 100mA	950nm	1.5V	120°	Side View	-40°C ~ 100°C (TA)	-	-	Surface Mount
IRL 80A EMITTER IR 950NM 60MA RADIAL ams-OSRAM USA INC.	-	RFQ	데이터시트	-	Radial	Bulk	Obsolete	Infrared (IR)	60mA	0.4mW/sr @ 20mA	950nm	1.5V	60°	Side View	-40°C ~ 100°C (TA)	-	-	Through Hole

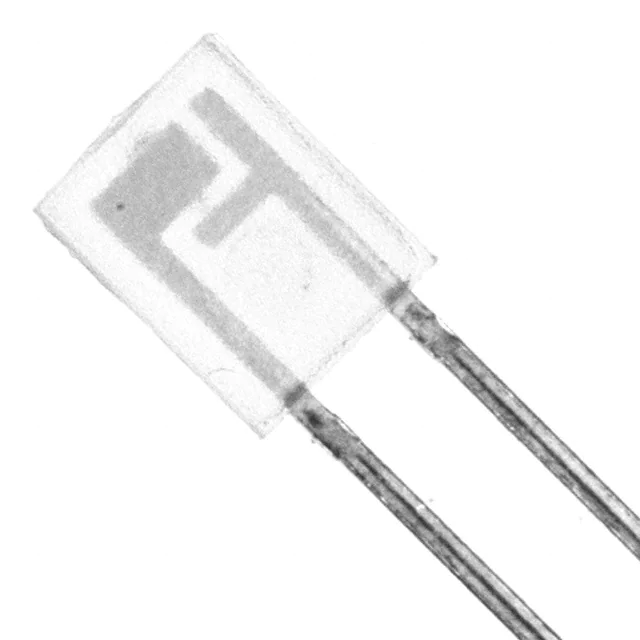

IRL 81A EMITTER IR 860NM 100MA RADIAL ams-OSRAM USA INC.	-	RFQ	데이터시트	-	Radial	Bulk	Obsolete	Infrared (IR)	100mA	25mW/sr @ 20mA	860nm	1.3V	24°	Side View	-40°C ~ 100°C (TA)	-	-	Through Hole
LD 242-2/3 EMITTER IR 950NM 300MA TO-18 ams-OSRAM USA INC.	-	RFQ	데이터시트	-	TO-18-2 Metal Can	Bulk	Obsolete	Infrared (IR)	300mA	4mW/sr @ 100mA	950nm	1.3V	80°	Top View	-40°C ~ 80°C (TA)	-	-	Through Hole
SFH 400 EMITTER IR 950NM 300MA TO-18 ams-OSRAM USA INC.	-	RFQ	데이터시트	-	TO-18-2 Metal Can	Bulk	Obsolete	Infrared (IR)	300mA	36mW/sr @ 100mA	950nm	1.3V	12°	Top View	-40°C ~ 125°C (TA)	-	-	Through Hole
SFH 401 EMITTER IR 950NM 300MA TO-18 ams-OSRAM USA INC.	-	RFQ	데이터시트	-	TO-18-2 Metal Can	Bulk	Obsolete	Infrared (IR)	300mA	36mW/sr @ 100mA	950nm	1.3V	30°	Top View	-40°C ~ 100°C (TA)	-	-	Through Hole
SFH 405 EMITTER IR 950NM 40MA RADIAL ams-OSRAM USA INC.	-	RFQ	데이터시트	-	Radial	Bulk	Obsolete	Infrared (IR)	40mA	1.6mW/sr @ 40mA	950nm	1.25V	32°	Top View	-40°C ~ 80°C (TA)	-	-	Through Hole

Total 4008 Record«Prev 1... 151 152 153 154155156 157 158...201 Next»
