LED COB, 엔진, 모듈, 스트립
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 색상 | CCT(K) | 파장 | 구성 | 전류/온도에서의 광속 | 전류 - 테스트 | 온도 - 테스트 | 전압 - 정방향(Vf)(일반) | 루멘/와트 @ 전류 - 테스트 | 전류 - 최대 | CRI(연색지수) | 시야각 | 기능 | 크기/치수 | 높이 | 발광 표면(LES) | 렌즈 유형 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0M053-CEG0840T6PULSAR STAR, 1-UP, XE-G,4000K,28 |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | White, Neutral | 4000K | - | Starboard | 307lm (Typ) | 1A | 25°C | 3V | 102 lm/W | 3A | 80 | - | - | - | - | - | Flat |
|
|
0M053-CEG0830T5PULSAR STAR, 1-UP, XE-G,3000K,26 |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | White, Warm | 3000K | - | Starboard | 280lm (Typ) | 1A | 25°C | 3V | 93 lm/W | 3A | 80 | - | - | - | - | - | Flat |
|
|
0M053-CEG0827T4PULSAR STAR, 1-UP, XE-G,2700K,24 |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | White, Warm | 2700K | - | Starboard | 263lm (Typ) | 1A | 25°C | 3V | 88 lm/W | 3A | 80 | - | - | - | - | - | Flat |
|
|
0M053-CGAPCAPULSAR STAR, 1-UP, XE-G,PC AMBER |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | Amber | - | - | Starboard | 220lm (Typ) | 1A | 25°C | 3.05V | 72 lm/W | 3A | - | - | - | - | - | - | Flat |
|
|
0M053-CGAPCYPULSAR STAR, 1-UP, XE-G,PC-YELLO |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | Yellow | - | - | Starboard | 380lm (Typ) | 1A | 25°C | 3.05V | 125 lm/W | 3A | - | - | - | - | - | - | Flat |
|
|
0M053-CGAPCRPULSAR STAR, 1-UP, XE-G,PC-RED, |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | Red | - | - | Starboard | 40lm (Typ) | 1A | 25°C | 3.05V | 13 lm/W | 3A | - | - | - | - | - | - | Flat |
|
|
0M053-CGABLUPULSAR STAR, 1-UP, XE-G,BLUE,47 |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | Blue | - | 475nm (465nm ~ 485nm) | Starboard | 74lm (Typ) | 1A | 25°C | 3.05V | 24 lm/W | 3A | - | - | - | - | - | - | Flat |
|
|
0M053-CGAGRPULSAR STAR, 1-UP, XE-G,GREEN,52 |
0 | - |
|
- |
XLamp® XE-G | Bag | Active | LED Module | Green | - | 528nm (520nm ~ 535nm) | Starboard | 320lm (Typ) | 1A | 25°C | 3.05V | 105 lm/W | 3A | - | - | - | - | - | - | Flat |
|

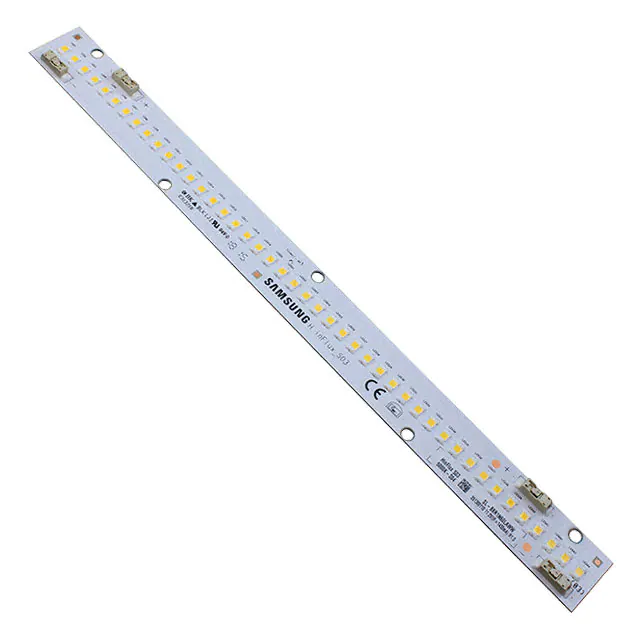

SL-B8R1N60LAWWLED MOD H INFLUX LNR STRP 5000K |
0 | - |
|
데이터시트 |
H inFlux | Tray | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 3060lm (Typ) | 1.43A | 55°C | 11.2V | 191 lm/W | 2.2A | 80 | 118° | - | 280.00mm L x 24.00mm W | 5.20mm | - | Flat |
|
|
SL-B8U1N60LAWWLED MOD H INFLUX LNR STRP 3500K |
0 | - |
|
데이터시트 |
H inFlux | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2890lm (Typ) | 1.43A | 55°C | 11.2V | 181 lm/W | 2.2A | 80 | 118° | - | 280.00mm L x 24.00mm W | 5.20mm | - | Flat |
|

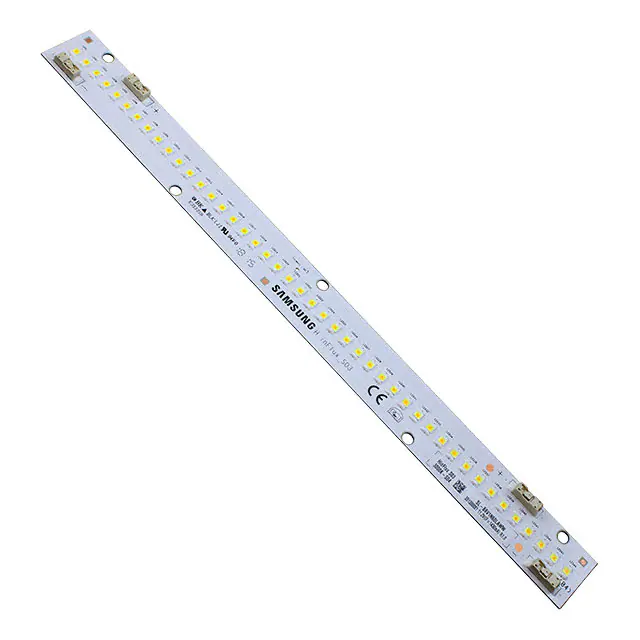

SL-B8V1N60LAWWLED MOD H INFLUX LNR STRP 3000K |
0 | - |
|
데이터시트 |
H inFlux | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 2820lm (Typ) | 1.43A | 55°C | 11.2V | 176 lm/W | 2.2A | 80 | 118° | - | 280.00mm L x 24.00mm W | 5.20mm | - | Flat |
|
CXA1310-0000-000N00K240HLED COB XLAMP NEUT WHT SQU 4000K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 36V | 99 lm/W | 525mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00K450HLED COB XLAMP COOL WHT SQU 5000K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 36V | 106 lm/W | 525mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00J227HLED COB XLAMP WARM WHT SQU 2700K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 700mA | 85°C | 18V | 86 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00J430HLED COB XLAMP WARM WHT SQU 3000K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 92 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00J435HLED COB XLAMP WARM WHT SQU 3500K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 92 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00K450HLED COB XLAMP COOL WHT SQU 5000K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 700mA | 85°C | 18V | 106 lm/W | 1.05A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0HK240HLED COB XLAMP NEUT WHT SQU 4000K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0HK250HLED COB XLAMP COOL WHT SQU 5000K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0YG227HLED COB XLAMP WARM WHT SQU 2700K |
0 | - |
|
데이터시트 |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 700mA | 85°C | 18V | 64 lm/W | 1.05A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
