LED COB, 엔진, 모듈, 스트립
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 색상 | CCT(K) | 파장 | 구성 | 전류/온도에서의 광속 | 전류 - 테스트 | 온도 - 테스트 | 전압 - 정방향(Vf)(일반) | 루멘/와트 @ 전류 - 테스트 | 전류 - 최대 | CRI(연색지수) | 시야각 | 기능 | 크기/치수 | 높이 | 발광 표면(LES) | 렌즈 유형 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SST-90-W57S-T11-N3201LED COB SST-90 COOL WH SQ 5700K |
0 | - |
|
데이터시트 |
SST-90 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 975lm (950lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 95 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|

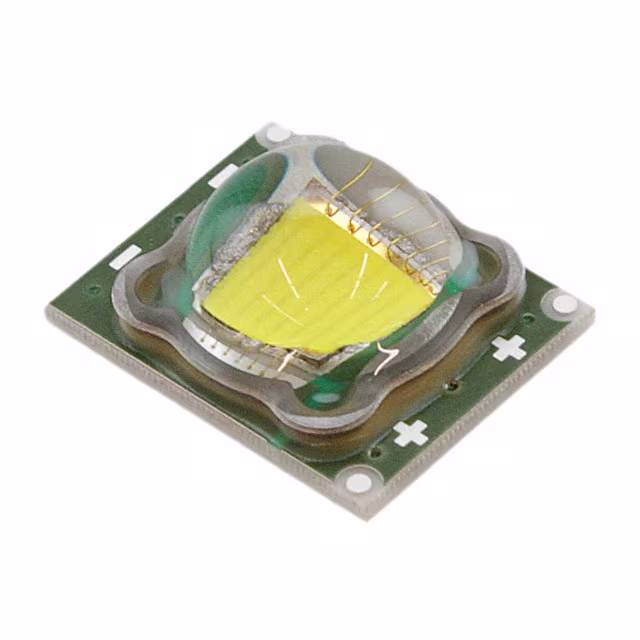

SST-50-W40S-F21-J3501LED COB SST-50 NEUT WH SQ 4000K |
0 | - |
|
데이터시트 |
SST-50 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 488lm (475lm ~ 500lm) | 1.75A | 25°C | 3.2V | 87 lm/W | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia | Domed |
|
CBT-140-WDH-C15-QB220LED MOD CBT-140 WHITE RECT |
0 | - |
|
데이터시트 |
CBT-140 | Tray | Obsolete | LED Module | - | - | - | Rectangle | 2340lm (2260lm ~ 2420lm) | 21A | 40°C | 3.6V | 31 lm/W | 28A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
CBT-140-WTH-C15-PB720LED MOD CBT-140 WM WHT SQ 3190K |
0 | - |
|
데이터시트 |
CBT-140 | Tray | Obsolete | LED Module | White, Warm | 2725K ~ 3190K | - | Square | 2033lm (1965lm ~ 2100lm) | 21A | 85°C | 3.6V | 27 lm/W | 21A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
|
CBT-140-WCS-C15-TB120LED MOD CBT-140 CL WHT SQ 8500K |
0 | - |
|
데이터시트 |
CBT-140 | Tray | Obsolete | LED Module | White, Cool | 6020K ~ 8500K | - | Square | 3560lm (3440lm ~ 3680lm) | 21A | 85°C | 3.6V | 47 lm/W | 21A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
|
CBT-140-WTH-C15-PB721LED MOD CBT-140 WM WHT SQ 3190K |
0 | - |
|
데이터시트 |
CBT-140 | Tray | Obsolete | LED Module | White, Warm | 2725K ~ 3190K | - | Square | 2033lm (1965lm ~ 2100lm) | 21A | 85°C | 3.6V | 27 lm/W | 21A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
|
CBT-140-WCS-C15-TB121LED MOD CBT-140 CL WHT SQ 8500K |
0 | - |
|
데이터시트 |
CBT-140 | Tray | Obsolete | LED Module | White, Cool | 6020K ~ 8500K | - | Square | 3560lm (3440lm ~ 3680lm) | 21A | 85°C | 3.6V | 47 lm/W | 21A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|

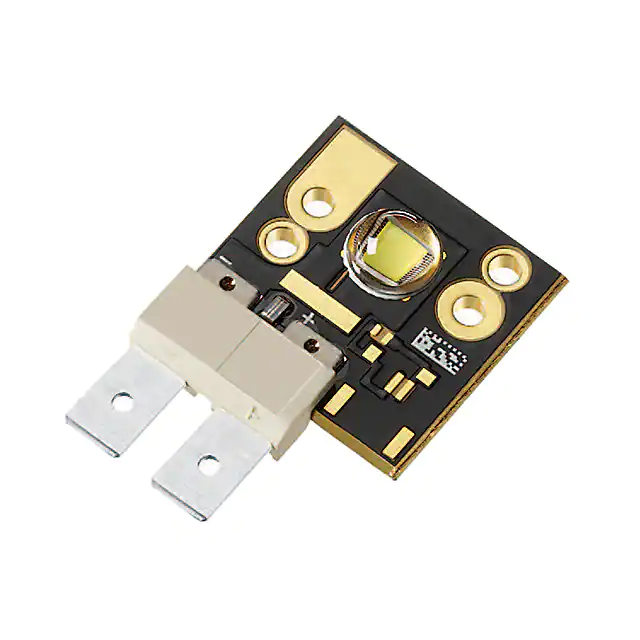

CST-90-WDLS-C13-GN150LED MOD CST-90 COOL WH SQ 5700K |
0 | - |
|
데이터시트 |
CST-90 | Tray | Obsolete | LED Module | White, Cool | 5700K | - | Square | 925lm (850lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia | Domed |
|
CBT-90-W57H-C11-KB200LED MOD CBT-90 CL WH RECT 5700K |
0 | - |
|
데이터시트 |
CBT-90 | Tray | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 92 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CBT-140-WDH-C15-RB221LED MOD CBT-140 COOL WHT RECT |
0 | - |
|
데이터시트 |
CBT-140 | Tray | Obsolete | LED Module | White, Cool | - | - | Rectangle | 2690lm (2600lm ~ 2780lm) | 21A | 90°C | 3.6V | 36 lm/W | 28A | 90 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
|
CST-90-W40S-C12-GL500LED MOD CST-90 NEUT WH SQ 4000K |
0 | - |
|
데이터시트 |
CST-90 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Square | 650lm (600lm ~ 700lm) | 3.15A | 25°C | 3.25V | 63 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia | Domed |
|

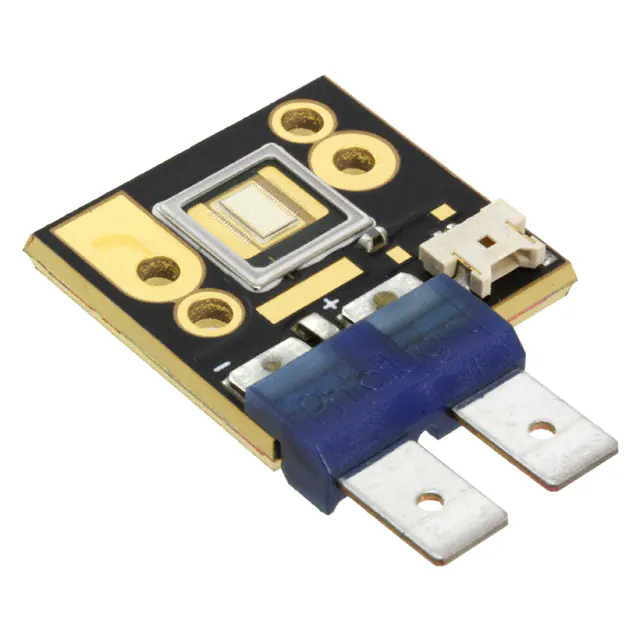

CBT-120-B-C11-KJ300LED MOD CBT-120 BLUE SQUARE |
0 | - |
|
데이터시트 |
CBT-120 | Tray | Obsolete | LED Module | Blue | - | 463nm (450nm ~ 475nm) | Square | - | 18A | - | 4.1V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
CBT-90-R-C11-HH100LED MOD CBT-90 RED RECT |
0 | - |
|
데이터시트 |
CBT-90 | Tray | Obsolete | LED Module | Red | - | - | Rectangle | 900lm (Typ) | 13.5A | 40°C | 2.5V | 27 lm/W | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

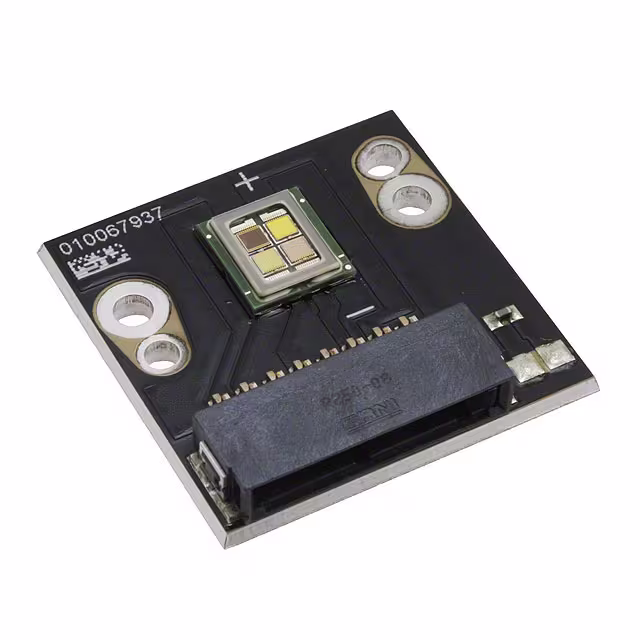

SBR-160-RGBW-R41-RE102LED MOD SBR-160 RGBW SQU 6500K |
0 | - |
|
데이터시트 |
SBR-160 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 623nm Red, 530nm Green, 458nm Blue | Square | 320lm (Typ) Red, 820lm (Typ) Green, 150lm (Typ) Blue, 730lm (Typ) White | 4A Red, 4A Green, 4A Blue, 4A White | 25°C | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White | 4A Red, 4A Green, 4A Blue, 4A White | - | - | With Connector | 36.00mm L x 36.00mm W | 8.72mm | - | Flat |
|
|
CBT-90-W57H-C11-KB201LED MOD CBT-90 CL WH RECT 5700K |
0 | - |
|
데이터시트 |
CBT-90 | Tray | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 92 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CBT-120-B-C11-KJ301LED MOD CBT-120 BLUE SQUARE |
0 | - |
|
데이터시트 |
CBT-120 | Tray | Obsolete | LED Module | Blue | - | 463nm (455nm ~ 470nm) | Square | - | 18A | - | 4.1V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
CBT-120-R-C11-HJ101LED MOD CBT-120 RED SQUARE |
0 | - |
|
데이터시트 |
CBT-120 | Tray | Discontinued at Digi-Key | LED Module | Red | - | 621nm (619nm ~ 623nm) | Square | - | 18A | - | 2.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
CBT-40-G-C21-JD200LED MOD CBT-40 GREEN RECT |
0 | - |
|
데이터시트 |
CBT-40 | Tray | Obsolete | LED Module | Green | - | 528nm (510nm ~ 545nm) | Rectangle | 650lm (Typ) | 5.9A | 40°C | 4.5V | 24 lm/W | 12A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
CBT-120-G-C11-JJ200LED MOD CBT-120 GREEN SQUARE |
0 | - |
|
데이터시트 |
CBT-120 | Tray | Obsolete | LED Module | Green | - | 528nm (510nm ~ 545nm) | Square | - | 18A | - | 4.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
|
CBT-120-G-C11-JJ201LED MOD CBT-120 GREEN SQUARE |
0 | - |
|
데이터시트 |
CBT-120 | Tray | Obsolete | LED Module | Green | - | 530nm (520nm ~ 540nm) | Square | - | 18A | - | 4.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
