LED COB, 엔진, 모듈, 스트립
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 색상 | CCT(K) | 파장 | 구성 | 전류/온도에서의 광속 | 전류 - 테스트 | 온도 - 테스트 | 전압 - 정방향(Vf)(일반) | 루멘/와트 @ 전류 - 테스트 | 전류 - 최대 | CRI(연색지수) | 시야각 | 기능 | 크기/치수 | 높이 | 발광 표면(LES) | 렌즈 유형 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-W0401-00Q00LED COB ES WH STARBRD 3000K |
0 | - |
|
데이터시트 |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 440lm (Typ) | 700mA | 25°C | 9.5V | 66 lm/W | 1.5A | 82 (Typ) | 120° | - | 20.04mm L x 20.04 mm W | 3.50mm | - | Domed |
|
|
BXRA-W0402-00Q00LED COB ES WH STARBRD 3000K |
0 | - |
|
데이터시트 |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 460lm (Typ) | 700mA | 25°C | 9V | 73 lm/W | 1.5A | 82 (Typ) | 120° | - | 20.04mm L x 20.04 mm W | 3.50mm | - | Domed |
|
BXRA-C0802-00E00LED COB ES COOL WHT RECT 5600K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Rectangle | - | 700mA | - | - | - | 1.5A | - | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
|
BXRA-W0802-00Q00LED COB ES WARM WHT RECT 3000K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 930lm (Typ) | 1.05A | 25°C | 12.2V | 73 lm/W | 2A | 82 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
|
BXRA-C1202-00E00LED COB ES COOL WHT RECT 5600K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Rectangle | - | 1.05A | - | - | - | 2A | - | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
|
BXRA-W1202-00Q00LED COB ES WARM WHT RECT 3000K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 1320lm (Typ) | 1.2A | 25°C | 15.1V | 73 lm/W | 2.5A | 82 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
|
BXRA-C2002-00E00LED COB ES COOL WHT RECT 5600K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Rectangle | - | 1.5A | - | - | - | 2.5A | - | 120° | - | - | - | - | Domed |
|
BXRA-C0360-00E00LED COB LS CL WHT SQUARE 5600K |
0 | - |
|
데이터시트 |
LS | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 400lm (Typ) | 350mA | 25°C | 13.2V | 87 lm/W | 600mA | 65 (Typ) | 120° | - | 13.80mm L x 18.00mm W | 3.00mm | - | Domed |
|
|
BXRA-W0240-00Q00LED COB LS WARM WHT SQU 3000K |
0 | - |
|
데이터시트 |
LS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 265lm (Typ) | 350mA | 25°C | 13.2V | 57 lm/W | 600mA | 82 | 120° | - | 13.80mm L x 18.00mm W | 3.00mm | - | Domed |
|
|
BXRA-W0260-00Q00LED COB LS WARM WHT SQU 3000K |
0 | - |
|
데이터시트 |
LS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 295lm (Typ) | 350mA | 25°C | 12.6V | 67 lm/W | 600mA | 82 (Typ) | 120° | - | 13.80mm L x 18.00mm W | 3.00mm | - | Domed |
|
BXRA-C4500-00E00LED COB RS CL WHT SQUARE 5600K |
0 | - |
|
데이터시트 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 5000lm (Typ) | 2.1A | 25°C | 25.6V | 93 lm/W | 3A | 65 (Typ) | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-W3000-00Q00LED COB RS WARM WHT SQU 3000K |
0 | - |
|
데이터시트 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3400lm (Typ) | 2.1A | 25°C | 25.6V | 54 lm/W | 3A | 82 (Typ) | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|

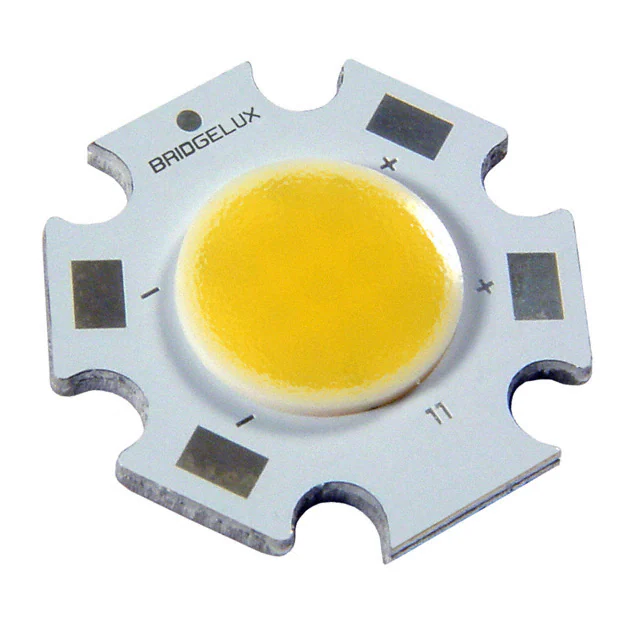

BXRA-N0402-00L00LED COB ES WH STARBRD 4100K |
0 | - |
|
데이터시트 |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Starboard | 440lm (Typ) | 600mA | 25°C | 8.9V | 82 lm/W | 1.5A | 80 (Typ) | 120° | - | 20.04mm L x 20.04 mm W | 3.50mm | - | Domed |
|
|
BXRA-N0802-00L00LED COB ES NEUT WHT RECT 4100K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Rectangle | 1020lm (Typ) | 1.05A | 25°C | 12.2V | 80 lm/W | 2A | 80 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
|
BXRA-N1203-00L00LED COB ES NEUT WHT RECT 4100K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Rectangle | 1530lm (Typ) | 1.05A | 25°C | 18.3V | 80 lm/W | 2A | 80 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
|
BXRA-N3500-00L00LED COB RS NEUT WHT SQU 4100K |
0 | - |
|
데이터시트 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Square | 3800lm (Typ) | 2.1A | 25°C | 25.6V | 71 lm/W | 3A | 80 (Typ) | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-W0241-00Q00LED COB LS WARM WHT SQU 3000K |
0 | - |
|
데이터시트 |
LS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 700mA | - | - | - | 1.2A | - | 120° | - | - | - | - | Domed |
|
|
BXRA-C0361-00E00LED COB LS CL WHT SQUARE 5600K |
0 | - |
|
데이터시트 |
LS | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | - | 350mA | - | 13.2V | - | 600mA | 65 (Typ) | 120° | - | 13.80mm L x 18.00mm W | 3.00mm | - | Domed |
|
|
BXRA-W1203-00Q00LED COB ES WARM WHT RECT 3000K |
0 | - |
|
데이터시트 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 1370lm (Typ) | 1.05A | 25°C | 18.3V | 71 lm/W | 2A | 82 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - | Domed |
|
BXRA-W0403-00Q00LED COB ES WH STARBRD 3000K |
0 | - |
|
데이터시트 |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | - | 250mA | - | - | - | 500mA | - | 120° | - | - | - | - | Domed |
