IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지

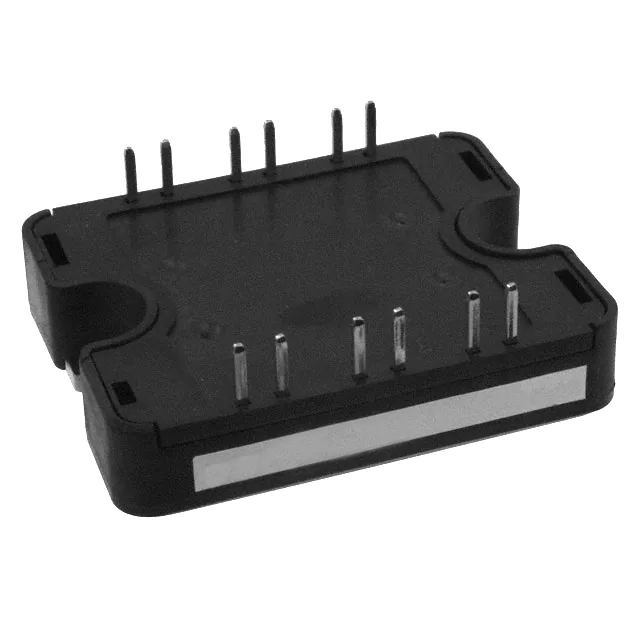

APTGT100DA60T1G IGBT MODULE 600V 150A 340W SP1 Microchip Technology	4,003	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Single	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP1
A2C50S65M2-F IGBT MOD 650V 50A 208W ACEPACK2 STMicroelectronics	6,074	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	650 V	50 A	208 W	2.3V @ 15V, 50A	100 µA	4.15 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	ACEPACK™ 2
MUBW30-06A7 IGBT MODULE 600V 50A 180W E2 IXYS	8,359	-	RFQ	-	-	E2	Box	Obsolete	NPT	Three Phase Inverter with Brake	600 V	50 A	180 W	2.3V @ 15V, 30A	600 µA	1.6 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E2
MIXA30W1200TED IGBT MODULE 1200V 43A 150W E2 IXYS	5,576	-	RFQ	-	-	E2	Box	Active	PT	Three Phase Inverter with Brake	1200 V	43 A	150 W	2.1V @ 15V, 25A	2.1 mA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E2
APT100GT120JR IGBT MOD 1200V 123A 570W ISOTOP Microchip Technology	8,804	-	RFQ	-	Thunderbolt IGBT®	SOT-227-4, miniBLOC	Tube	Active	NPT	Single	1200 V	123 A	570 W	3.7V @ 15V, 100A	100 µA	6.7 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP®
NXH80T120L2Q0P2G IC MODULE PIM 1200V 80A onsemi	9,293	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Level Inverter	1200 V	67 A	158 W	2.85V @ 15V, 80A	300 µA	19.4 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	20-PIM/Q0PACK (55x32.5)

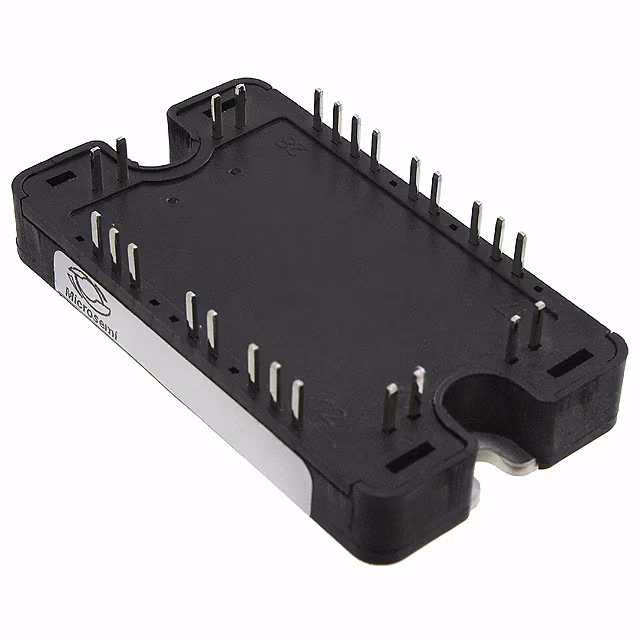

APTGF90H60T3G IGBT MODULE 600V 120A 416W SP3 Microchip Technology	2,054	-	RFQ	-	-	SP3	Bulk	Obsolete	NPT	Full Bridge Inverter	600 V	120 A	416 W	2.45V @ 15V, 100A	250 µA	4.4 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP3
FS75R07N2E4BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	4,392	-	RFQ	-	EconoPACK™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	650 V	75 A	250 W	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONO2B
MUBW35-06A6 IGBT MODULE 600V 38A 104W E1 IXYS	5,798	-	RFQ	-	-	E1	Box	Obsolete	NPT	Three Phase Inverter with Brake	600 V	38 A	104 W	2.5V @ 15V, 30A	1 mA	1.6 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E1
APTGT75DH120TG IGBT MODULE 1200V 110A 357W SP4 Microsemi Corporation	5,813	-	RFQ	-	-	SP4	Bulk	Obsolete	Trench Field Stop	Asymmetrical Bridge	1200 V	110 A	357 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
NXH80T120L3Q0S3TG PIM GENERATION3 Q0PACK 1200V, 80 onsemi	9,671	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Level Inverter	1200 V	75 A	188 W	2.4V @ 15V, 80A	300 µA	18150 pF @ 20 V	Standard	Yes	175°C (TJ)	Chassis Mount	20-PIM/Q0PACK (55x32.5)
CM75E3U-24H IGBT MOD 1200V 75A 600W Powerex Inc.	4,916	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Single	1200 V	75 A	600 W	3.7V @ 15V, 75A	1 mA	11 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MUBW35-12E7 IGBT MODULE 1200V 52A 225W E2 IXYS	9,569	-	RFQ	-	-	E2	Box	Obsolete	NPT	Three Phase Inverter with Brake	1200 V	52 A	225 W	2.8V @ 15V, 35A	400 µA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E2
FP25R12N2T7B16BPSA1 LOW POWER ECONO Infineon Technologies	7,096	-	RFQ	-	TRENCHSTOP™	Module	Tray	Active	Trench Field Stop	-	-	-	-	-	-	-	Standard	No	-	Chassis Mount	AG-EASY2B
IRG7T100HF12A IGBT MOD 1200V 200A POWIR 34 Infineon Technologies	4,776	-	RFQ	-	-	POWIR® 34 Module	Box	Obsolete	-	Half Bridge	1200 V	200 A	575 W	2.2V @ 15V, 100A	1 mA	13.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	POWIR® 34
VS-GT140DA60U IGBT MOD 600V 200A 652W SOT227 Vishay General Semiconductor - Diodes Division	8,591	-	RFQ	-	-	SOT-227-4, miniBLOC	Bulk	Obsolete	Trench	Single	600 V	200 A	652 W	2V @ 15V, 100A	100 µA	-	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SOT-227
FP35R12W2T7PB11BPSA1 EASY STANDARD Infineon Technologies	2,627	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FMG2G150US60 IGBT MODULE 600V 150A 595W 7PMHA onsemi	9,361	-	RFQ	-	-	7PM-HA	Box	Obsolete	-	Half Bridge	600 V	150 A	595 W	2.7V @ 15V, 150A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	7PM-HA
FS75R07N2E4B11BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	4,928	-	RFQ	-	EconoPACK™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	650 V	75 A	250 W	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONO2B
FS35R12KE3GBPSA1 LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies	2,556	-	RFQ	-	-	Module	Tray	Active	-	Full Bridge Inverter	1200 V	55 A	200 W	2.15V @ 15V, 35A	5 mA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	AG-ECONO2B

Total 2945 Record«Prev 1... 70 71 72 737475 76 77...148 Next»
