IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지
VS-GT400TH60N IGBT MOD 600V 530A INT-A-PAK Vishay General Semiconductor - Diodes Division	7,555	-	RFQ	-	-	Double INT-A-PAK (3 + 8)	Bulk	Active	Trench	Half Bridge	600 V	530 A	1600 W	2.05V @ 15V, 400A	5 mA	30.8 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GT50TP120N IGBT MOD 1200V 100A INT-A-PAK Vishay General Semiconductor - Diodes Division	2,541	-	RFQ	-	-	INT-A-PAK (3 + 4)	Bulk	Obsolete	Trench	Half Bridge	1200 V	100 A	405 W	2.35V @ 15V, 50A	5 mA	6.24 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount	INT-A-PAK
VS-GT50TP60N IGBT MOD 600V 85A 208W INT-A-PAK Vishay General Semiconductor - Diodes Division	4,039	-	RFQ	-	-	INT-A-PAK (3 + 4)	Bulk	Obsolete	Trench	Half Bridge	600 V	85 A	208 W	2.1V @ 15V, 50A	1 mA	3.03 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount	INT-A-PAK
VS-100MT060WDF IGBT MODULE 600V 121A 462W MTP Vishay General Semiconductor - Diodes Division	2,573	-	RFQ	-	-	16-MTP Module	Tray	Obsolete	-	-	600 V	121 A	462 W	2.29V @ 15V, 60A	100 µA	9.5 nF @ 30 V	Standard	Yes	150°C (TJ)	Chassis Mount	MTP
VS-20MT120UFAPBF IGBT MODULE 1200V 20A 240W MTP Vishay General Semiconductor - Diodes Division	6,748	-	RFQ	-	-	16-MTP Module	Tray	Obsolete	NPT	Full Bridge Inverter	1200 V	20 A	240 W	4.66V @ 15V, 40A	250 µA	3.79 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-20MT120UFP IGBT MODULE 1200V 40A 240W MTP Vishay General Semiconductor - Diodes Division	8,024	-	RFQ	-	-	16-MTP Module	Tray	Obsolete	NPT	Full Bridge Inverter	1200 V	40 A	240 W	4.66V @ 15V, 40A	250 µA	3.79 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-25MT060WFAPBF IGBT MODULE 600V 69A 195W MTP Vishay General Semiconductor - Diodes Division	9,873	-	RFQ	-	-	16-MTP Module	Tray	Obsolete	-	Full Bridge Inverter	600 V	69 A	195 W	3.25V @ 15V, 50A	250 µA	5.42 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-40MT120UHAPBF IGBT MODULE 1200V 80A 463W MTP Vishay General Semiconductor - Diodes Division	7,296	-	RFQ	-	-	12-MTP Module	Tube	Obsolete	NPT	Half Bridge	1200 V	80 A	463 W	4.91V @ 15V, 80A	250 µA	8.28 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-40MT120UHTAPBF IGBT MODULE 1200V 80A 463W MTP Vishay General Semiconductor - Diodes Division	4,861	-	RFQ	-	-	12-MTP Module	Tray	Obsolete	NPT	Half Bridge	1200 V	80 A	463 W	4.91V @ 15V, 80A	250 µA	8.28 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP

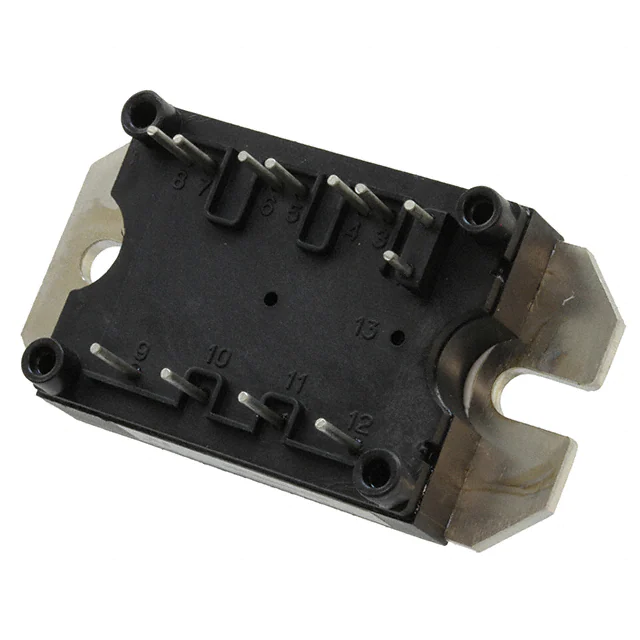

VS-50MT060WHTAPBF IGBT MODULE 600V 114A 658W MTP Vishay General Semiconductor - Diodes Division	8,417	-	RFQ	-	-	12-MTP Module	Tray	Obsolete	-	Half Bridge	600 V	114 A	658 W	3.2V @ 15V, 100A	400 µA	7.1 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-70MT060WHTAPBF IGBT MODULE 600V 100A 347W MTP Vishay General Semiconductor - Diodes Division	9,501	-	RFQ	-	-	12-MTP Module	Tray	Obsolete	NPT	Half Bridge	600 V	100 A	347 W	3.4V @ 15V, 140A	700 µA	8 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-70MT060WSP IGBT MODULE 600V 96A 378W MTP Vishay General Semiconductor - Diodes Division	4,258	-	RFQ	-	-	12-MTP Module	Tray	Obsolete	-	Single	600 V	96 A	378 W	2.15V @ 15V, 40A	100 µA	7.43 nF @ 30 V	Single Phase Bridge Rectifier	Yes	150°C (TJ)	Chassis Mount	MTP
FPF1C2P5MF07AM IGBT MODULE 620V 39A 231W F1 onsemi	6,785	-	RFQ	-	-	F1 Module	Tray	Obsolete	-	Full Bridge Inverter	620 V	39 A	231 W	1.6V @ 15V, 30A	25 µA	-	Single Phase Bridge Rectifier	No	-40°C ~ 150°C (TJ)	Chassis Mount	F1
VS-ETF150Y65U IGBT MOD 650V 142A EMIPAK-2B Vishay General Semiconductor - Diodes Division	3,153	-	RFQ	-	-	EMIPAK-2B	Tray	Obsolete	Trench	Three Level Inverter	650 V	142 A	417 W	2.06V @ 15V, 100A	100 µA	6.6 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount	EMIPAK-2B
VS-GB55LA120UX IGBT MOD 1200V 84A 431W SOT227 Vishay General Semiconductor - Diodes Division	9,410	-	RFQ	-	HEXFRED®	SOT-227-4, miniBLOC	Tube	Obsolete	NPT	Single	1200 V	84 A	431 W	-	50 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GB55NA120UX IGBT MOD 1200V 84A 431W SOT227 Vishay General Semiconductor - Diodes Division	3,593	-	RFQ	-	HEXFRED®	SOT-227-4, miniBLOC	Tube	Obsolete	NPT	Single	1200 V	84 A	431 W	-	50 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GB75LA60UF IGBT MOD 600V 109A 447W SOT227 Vishay General Semiconductor - Diodes Division	3,735	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	NPT	Single	600 V	109 A	447 W	2V @ 15V, 35A	50 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GB75NA60UF IGBT MOD 600V 109A 447W SOT227 Vishay General Semiconductor - Diodes Division	5,896	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	NPT	Single	600 V	109 A	447 W	2V @ 15V, 35A	50 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GT105LA120UX IGBT MOD 1200V 134A 463W SOT227 Vishay General Semiconductor - Diodes Division	8,276	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	NPT	Single	1200 V	134 A	463 W	-	75 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GT105NA120UX IGBT MOD 1200V 134A 463W SOT227 Vishay General Semiconductor - Diodes Division	5,693	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	Trench	Single	1200 V	134 A	463 W	-	75 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227

Total 2945 Record«Prev 1... 125 126 127 128129130 131 132...148 Next»
