IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지
APTGLQ300A120G IGBT MODULE 1200V 500A 1500W SP6 Microchip Technology	2,921	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	500 A	1500 W	2.42V @ 15V, 300A	200 µA	17.6 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6
CM200TL-24NF IGBT MOD 1200V 200A 1160W Powerex Inc.	2,626	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Three Phase Inverter	1200 V	200 A	1160 W	3.1V @ 15V, 200A	1 mA	35 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module

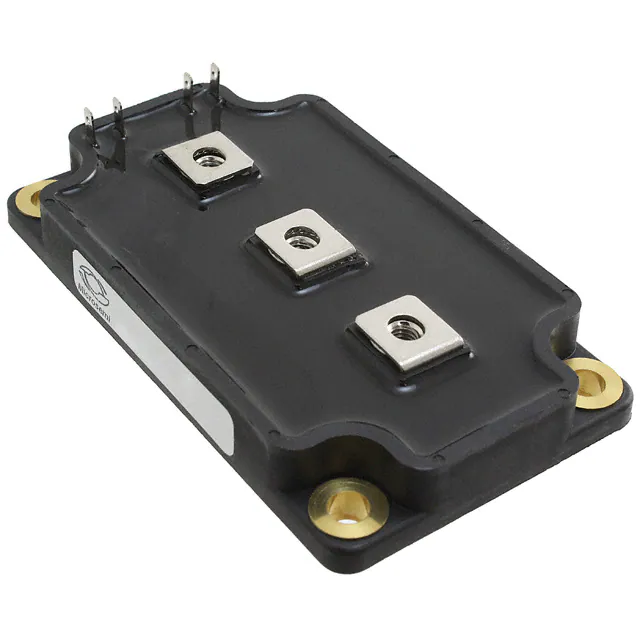

APTGT450A60G IGBT MODULE 600V 550A 1750W SP6 Microchip Technology	2,368	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Half Bridge	600 V	550 A	1750 W	1.8V @ 15V, 450A	500 µA	37 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6
APTGLQ150H120G IGBT MODULE 1200V 250A 750W SP6 Microchip Technology	9,960	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Full Bridge	1200 V	250 A	750 W	2.4V @ 15V, 150A	100 µA	8.8 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6
CM600DY-24A IGBT MOD 1200V 600A 3670W Powerex Inc.	8,696	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	1200 V	600 A	3670 W	3V @ 15V, 600A	1 mA	94 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT150DH170G IGBT MODULE 1700V 250A 890W SP6 Microchip Technology	3,603	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Asymmetrical Bridge	1700 V	250 A	890 W	2.4V @ 15V, 150A	350 µA	13.5 nF @ 25 V	Standard	No	-	Chassis Mount	SP6
NVH640S75L4SPC AUTOMOTIVE 750V, 640A SSDC POWER onsemi	5,928	-	RFQ	-	-	Module	Bulk	Active	-	Three Phase Inverter	750 V	640 A	680 W	1.64V @ 15V, 450A	500 µA	47000 pF @ 30 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SSDC33
NVH640S75L4SPB AUTOMOTIVE 750V, 640A SSDC POWER onsemi	8,832	-	RFQ	-	-	Module	Bulk	Active	Field Stop	Three Phase Inverter	750 V	450 A	680 W	1.64V @ 15V, 450A	500 µA	47000 pF @ 30 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SSDC33
APTGTQ150TA65TPG IGBT MODULE 650V 150A 365W SP6P Microchip Technology	8,376	-	RFQ	-	-	Module	Bulk	Active	-	Three Phase Inverter	650 V	150 A	365 W	2.2V @ 15V, 150A	150 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP6-P

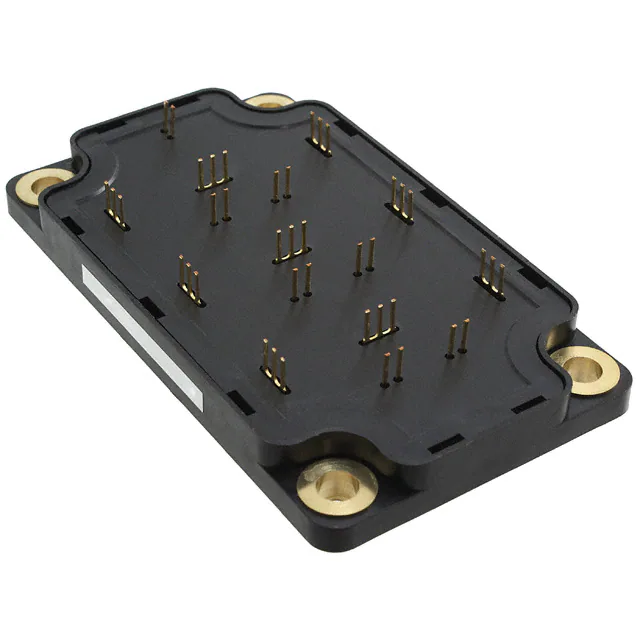

APTGL120TA120TPG IGBT MODULE 1200V 140A 517W SP6P Microchip Technology	5,384	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Three Phase	1200 V	140 A	517 W	2.15V @ 15V, 100A	250 µA	6.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP6-P
APTGL120TDU120TPG IGBT MODULE 1200V 140A 517W SP6P Microchip Technology	7,795	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Triple, Dual - Common Source	1200 V	140 A	517 W	2.15V @ 15V, 100A	250 µA	6.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP6-P
APTGT100TA120TPG IGBT MODULE 1200V 140A 480W SP6P Microchip Technology	4,821	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Three Phase	1200 V	140 A	480 W	2.1V @ 15V, 100A	250 µA	7.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP6-P
NVH660S75L4SPFB AUTOMOTIVE 750V, 660A SSDC POWER onsemi	6,719	-	RFQ	-	-	Module	Bulk	Active	Field Stop	Three Phase Inverter	750 V	660 A	733 W	1.44V @ 15V, 450A	500 µA	63000 pF @ 30 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SSDC33
NVH660S75L4SPFC AUTOMOTIVE 750V, 660A SSDC POWER onsemi	9,136	-	RFQ	-	-	Module	Bulk	Active	-	Three Phase Inverter	750 V	660 A	733 W	1.44V @ 15V, 450A	500 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SSDC33
CM600DU-5F IGBT MOD 250V 600A 1100W Powerex Inc.	7,520	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	250 V	600 A	1100 W	1.7V @ 10V, 600A	1 mA	170 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT300A120G IGBT MODULE 1200V 420A 1380W SP6 Microchip Technology	8,196	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	420 A	1380 W	2.1V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SP6
APTGT300DU120G IGBT MODULE 1200V 420A 1380W SP6 Microchip Technology	8,419	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Dual, Common Source	1200 V	420 A	1380 W	2.1V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SP6
APTGL700U120D4G IGBT MODULE 1200V 910A 3000W D4 Microchip Technology	7,507	-	RFQ	-	-	D4	Bulk	Active	Trench Field Stop	Single	1200 V	910 A	3000 W	2.2V @ 15V, 600A	4 mA	37.2 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D4
MG800J2YS50A IGBT MOD 600V 800A 2900W Powerex Inc.	2,280	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	600 V	800 A	2900 W	3V @ 15V, 800A	1 mA	93 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount	Module
CM800DU-12H IGBT MOD 600V 800A 1500W Powerex Inc.	2,878	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	600 V	800 A	1500 W	3.15V @ 15V, 800A	2 mA	70.4 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module

Total 2945 Record«Prev 1... 104 105 106 107108109 110 111...148 Next»
