고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

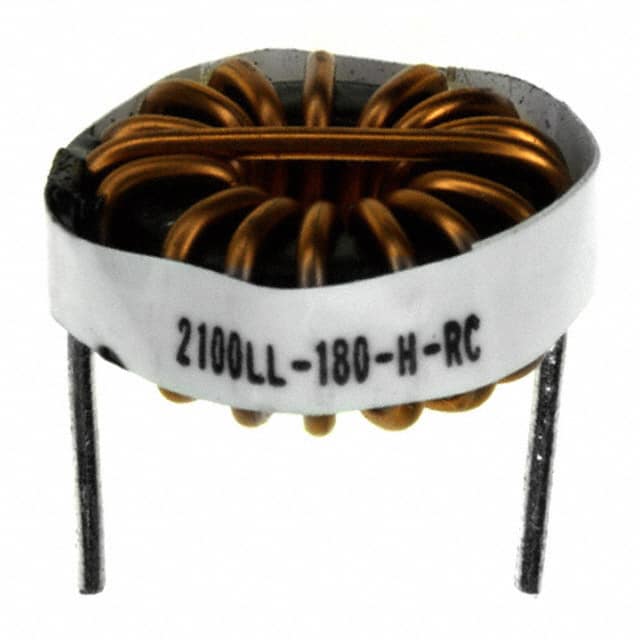

2100LL-180-H-RCFIXED IND 18UH 10.1A 7 MOHM TH |
582 | - |
|
데이터시트 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 18 µH | ±15% | 10.1 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-680-H-RCFIXED IND 68UH 4.7A 30 MOHM TH |
566 | - |
|
데이터시트 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 68 µH | ±15% | 4.7 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-220-V-RCFIXED IND 22UH 7.5A 12 MOHM TH |
545 | - |
|
데이터시트 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 22 µH | ±15% | 7.5 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
VLM10555T-2R5M8R0-2FIXED IND 2.5UH 8A 7.71 MOHM SMD |
366 | - |
|
데이터시트 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 8 A | 15A | Shielded | 7.71mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-4R3M7R2-2FIXED IND 4.3UH 7.2A 9.55MOHM SM |
312 | - |
|
데이터시트 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 7.2 A | 9A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-3R3M7R2-2FIXED IND 3.3UH 7.2A 9.55MOHM SM |
302 | - |
|
데이터시트 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.2 A | 12A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
1025-84KFIXED IND 470UH 36MA 42 OHM TH |
652 | - |
|
데이터시트 |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 36 mA | - | Unshielded | 42Ohm Max | 30 @ 790kHz | 6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHLE5050FHER3R3M5AFIXED IND 3.3UH 20.2A 5.44 MOHM |
235 | - |
|
데이터시트 |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 20.2 A | 16.7A | Shielded | 5.44mOhm Max | - | 17.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
DRA127-821-RFIXED IND 820UH 637MA 1.54OHM SM |
168 | - |
|
데이터시트 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 637 mA | 1.22A | Shielded | 1.54Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
PE-92104NLFIXED IND 70UH 3A 52 MOHM TH |
555 | - |
|
데이터시트 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|
744323150FIXED IND 1.5UH 12A 6.6 MOHM SMD |
2,266 | - |
|
데이터시트 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 12 A | 18A | Shielded | 6.6mOhm | - | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
|
744323100FIXED IND 1UH 14A 4.79 MOHM SMD |
872 | - |
|
데이터시트 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 14 A | 21A | Shielded | 4.79mOhm | - | 69MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
|
744323033FIXED IND 330NH 18A 2.17MOHM SMD |
746 | - |
|
데이터시트 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 18 A | 36A | Shielded | 2.17mOhm | - | 119MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
|
744323020FIXED IND 200NH 22A 0.82MOHM SMD |
707 | - |
|
데이터시트 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±20% | 22 A | 50A | Shielded | 0.82mOhm | - | 216MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
|
744323068FIXED IND 680NH 14A 4.79MOHM SMD |
551 | - |
|
데이터시트 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 14 A | 21A | Shielded | 4.79mOhm | - | 51MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
IHA102EBFIXED IND 100UH 2.1A 160 MOHM TH |
218 | - |
|
데이터시트 |
IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | - | Unshielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - |
|
|
744323056FIXED IND 560NH 18A 2.17MOHM SMD |
199 | - |
|
데이터시트 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 18 A | 33A | Shielded | 2.17mOhm | - | 106MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
2200HT-471-H-RCFIXED IND 470UH 2.8A 210 MOHM TH |
252 | - |
|
데이터시트 |
2200HT | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±15% | 2.8 A | - | Shielded | 210mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
2200HT-471-V-RCFIXED IND 470UH 2.8A 210 MOHM TH |
157 | - |
|
데이터시트 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 2.8 A | - | Shielded | 210mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-560-V-RCFIXED IND 56UH 6.1A 46 MOHM TH |
139 | - |
|
데이터시트 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 6.1 A | - | Shielded | 46mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
