고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

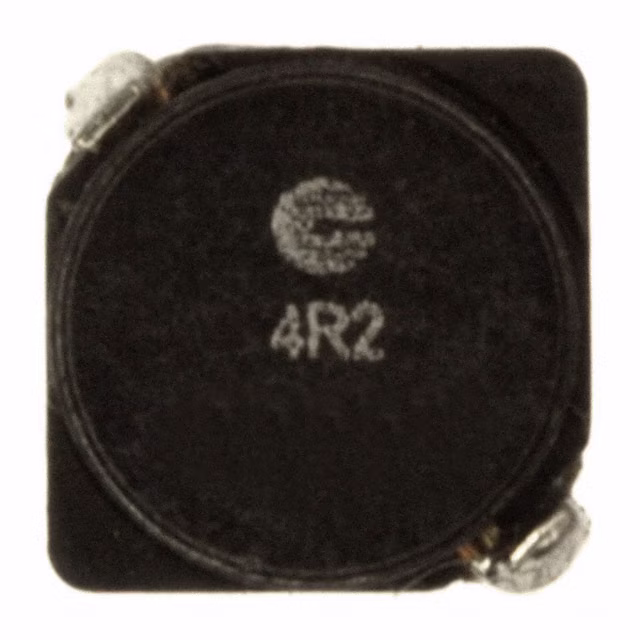

SD6030-4R2-RFIXED IND 4.1UH 3.11A 31MOHM SMD |
1,980 | - |
|
데이터시트 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.1 µH | ±30% | 3.11 A | 2.2A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
SPM6550T-R47M-HZFIXED IND 470NH 26.1A 2.97 MOHM |
1,410 | - |
|
데이터시트 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 26.1 A | 15.3A | Shielded | 2.97mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
1.2mm.jpg)
|
78438334056FIXED IND 5.6UH 1A 389 MOHM SMD |
1,000 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 5.6 µH | ±30% | 1 A | 3A | Shielded | 389mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
1.5mm.jpg)
|
78438335033FIXED IND 3.3UH 1.7A 131MOHM SMD |
1,000 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 3.3 µH | ±30% | 1.7 A | 3.2A | Shielded | 131mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
78438334015FIXED IND 1.5UH 2A 96 MOHM SMD |
999 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.5 µH | ±30% | 2 A | 5.7A | Shielded | 96mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
784383350068FIXED IND 680NH 4.1A 30 MOHM SMD |
995 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±30% | 4.1 A | 8.1A | Shielded | 30mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
784383340056FIXED IND 560NH 3.6A 34.8MOHM SM |
994 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 560 nH | ±30% | 3.6 A | 8.5A | Shielded | 34.8mOhm Max | - | 108MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438334012FIXED IND 1.2UH 2.65A 66MOHM SMD |
993 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.2 µH | ±30% | 2.65 A | 6A | Shielded | 66mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
784383340068FIXED IND 680NH 3.5A 43.2MOHM SM |
987 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±30% | 3.5 A | 7.7A | Shielded | 43.2mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438335068FIXED IND 6.8UH 1.1A 287MOHM SMD |
983 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±30% | 1.1 A | 2.4A | Shielded | 287mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
78438334022FIXED IND 2.2UH 1.8A 115MOHM SMD |
979 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 2.2 µH | ±30% | 1.8 A | 5A | Shielded | 115mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438334033FIXED IND 3.3UH 1.4A 179.7 MOHM |
975 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 3.3 µH | ±30% | 1.4 A | 4A | Shielded | 179.7mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438334047FIXED IND 4.7UH 1.1A 307.8 MOHM |
948 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±30% | 1.1 A | 3.8A | Shielded | 307.8mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) |
|
|
784383340047FIXED IND 470NH 4A 26.4 MOHM SMD |
815 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 4 A | 9.4A | Shielded | 26.4mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
784383350082FIXED IND 820NH 3.5A 35 MOHM SMD |
745 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 820 nH | ±30% | 3.5 A | 7A | Shielded | 35mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
78438335100FIXED IND 10UH 850MA 513MOHM SMD |
680 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 10 µH | ±30% | 850 mA | 2A | Shielded | 513mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
744304022FIXED IND 220NH 24A 0.00017OHM |
663 | - |
|
데이터시트 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 24 A | 23A | Shielded | 0.17mOhm | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1240 | 0.453" L x 0.465" W (11.50mm x 11.80mm) | 0.161" (4.10mm) |
1mm.jpg)
|
78438333022FIXED IND 2.2UH 1.4A 172MOHM SMD |
560 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 2.2 µH | ±30% | 1.4 A | 3.9A | Shielded | 172mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
784383340033FIXED IND 330NH 4.8A 22.8MOHM SM |
482 | - |
|
데이터시트 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 330 nH | ±30% | 4.8 A | 11.1A | Shielded | 22.8mOhm Max | - | 140MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
744305033FIXED IND 330NH 26A 0.000155OHM |
340 | - |
|
데이터시트 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 nH | ±20% | 26 A | 27.7A | Shielded | 0.155mOhm | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1350 | 0.531" L x 0.524" W (13.50mm x 13.30mm) | 0.205" (5.20mm) |
