고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D1040L150FIXED IND 15UH 5.7A 51.2MOHM SMD |
1,012 | - |
|
데이터시트 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 5.7 A | 8.5A | Shielded | 51.2mOhm Max | - | 8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
SBC6-2R7-872FIXED IND 2.7UH 8.7A 10 MOHM TH |
987 | - |
|
데이터시트 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 8.7 A | 22.6A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
B82476B1224M100FIXED IND 220UH 880MA 530MOHM SM |
986 | - |
|
데이터시트 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 880 mA | 800mA | Unshielded | 530mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
MPX1D0520LR33FIXED IND 330NH 13.4A 6.2MOHM SM |
948 | - |
|
데이터시트 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 13.4 A | 16A | Shielded | 6.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
SBC6-100-462FIXED IND 10UH 4.6A 30 MOHM TH |
913 | - |
|
데이터시트 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.6 A | 10.9A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
MWSA1004S-R30MTFIXED IND 300NH 35A 1.1MOHM SMD |
790 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 300 nH | ±20% | 35 A | 45A | Shielded | 1.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
3631B821KLFIXED IND 820UH 350MA 1.7OHM SMD |
777 | - |
|
데이터시트 |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±10% | 350 mA | - | Shielded | 1.7Ohm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
VCMT104T-6R8MN5FIXED IND 6.8UH 8.5A 21.5MOHM SM |
711 | - |
|
데이터시트 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 8.5 A | 8.5A | Unshielded | 21.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
125CDMCCDS-1R5MCFIXED IND 1.5UH 22A 3.3MOHM SMD |
611 | - |
|
데이터시트 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 22 A | 38A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
P1167.223NLFIXED IND 22UH 1.4A 105 MOHM SMD |
590 | - |
|
데이터시트 |
P1167NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 1.4 A | 1.4A | Shielded | 105mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
B82476B1332M100FIXED IND 3.3UH 5.9A 13.5MOHM SM |
504 | - |
|
데이터시트 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.9 A | 6.4A | Unshielded | 13.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
MWSA1004S-R68MTFIXED IND 680NH 23A 2.4MOHM SMD |
440 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | 23 A | 30A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-R80MTFIXED IND 800NH 23A 2.7MOHM SMD |
417 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 800 nH | ±20% | 23 A | 29A | Shielded | 2.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-680MTFIXED IND 68UH 2.5A 195MOHM SMD |
370 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 68 µH | ±20% | 2.5 A | 3A | Shielded | 195mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-150MTFIXED IND 15UH 6.5A 45 MOHM SMD |
365 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 15 µH | ±20% | 6.5 A | 7A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-330MTFIXED IND 33UH 4.4A 92 MOHM SMD |
309 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 33 µH | ±20% | 4.4 A | 4.8A | Shielded | 92mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-R36MTFIXED IND 360NH 30A 1.2MOHM SMD |
294 | - |
|
데이터시트 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 360 nH | ±20% | 30 A | 45A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
MPX1D0530L3R3FIXED IND 3.3UH 5.5A 42.8MOHM SM |
135 | - |
|
데이터시트 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 5.5 A | 5.5A | Shielded | 42.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
FP1105R1-R10-RFIXED IND 100NH 46A 0.35MOHM SMD |
6,659 | - |
|
데이터시트 |
FLAT-PAC, FP1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 46 A | 81A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.193" (4.90mm) |
|

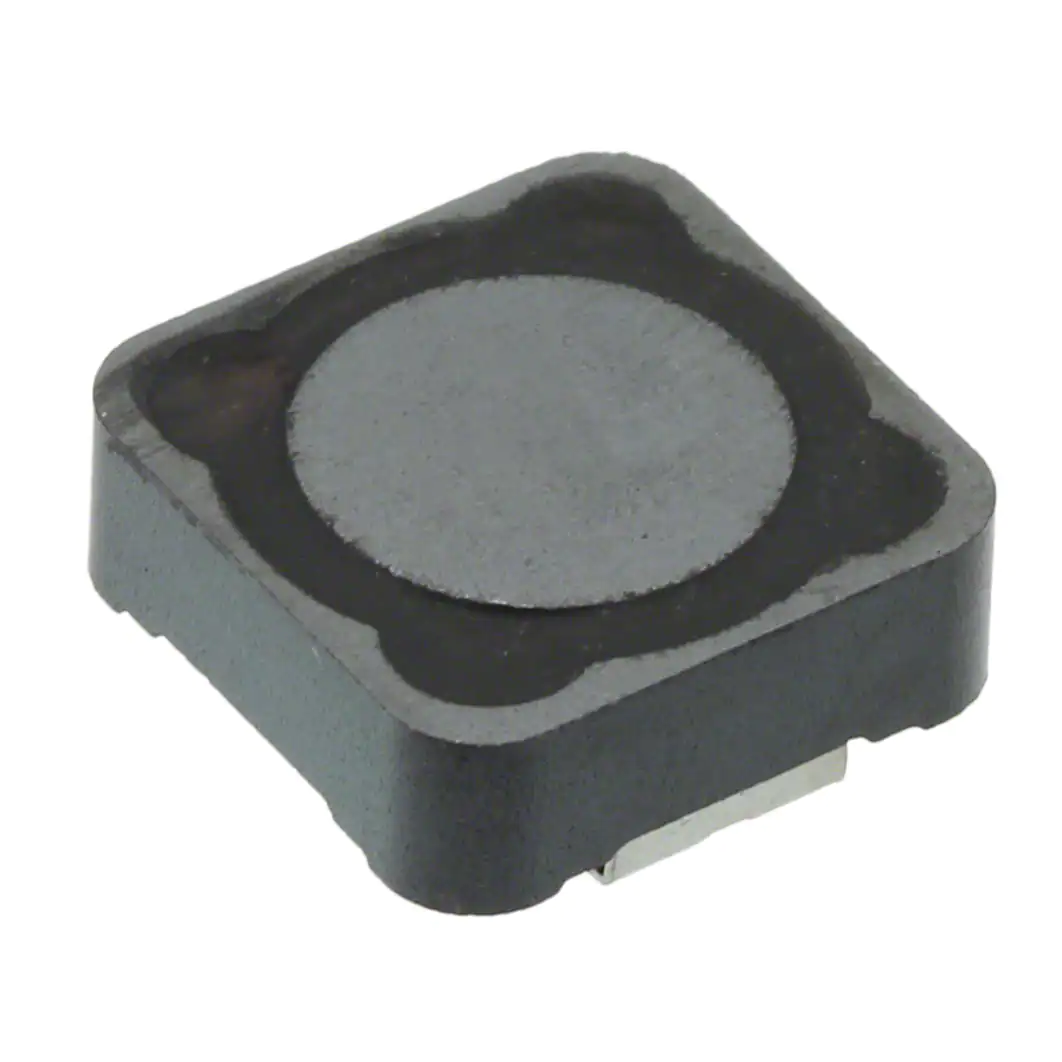

PA4303.154NLTFIXED IND 150UH 950MA 462MOHM SM |
5,079 | - |
|
데이터시트 |
PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 950 mA | - | Shielded | 462mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
