고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

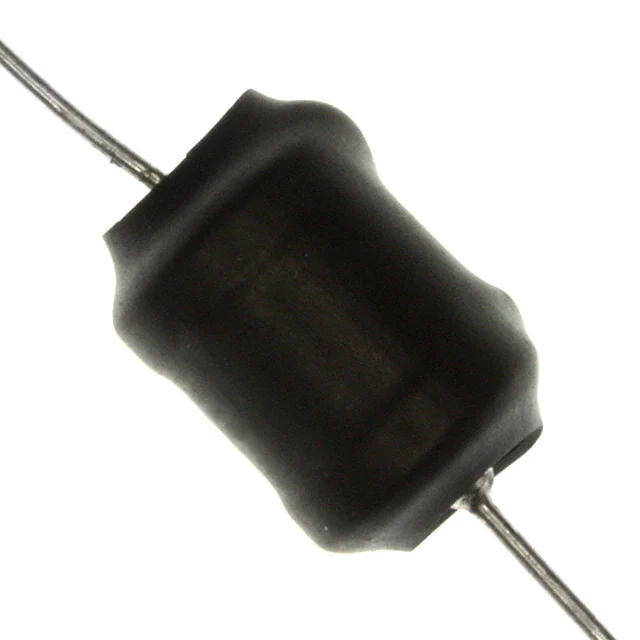

18225CFIXED IND 2.2MH 300MA 2.2 OHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 300 mA | - | Unshielded | 2.2Ohm Max | 108 @ 50kHz | 1.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18254CFIXED IND 250UH 800MA 255MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 250 µH | ±10% | 800 mA | - | Unshielded | 255mOhm Max | 50 @ 100kHz | 3.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18333CFIXED IND 33UH 2A 40 MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 33 µH | ±10% | 2 A | - | Unshielded | 40mOhm Max | 48 @ 500kHz | 11.5MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18335CFIXED IND 3.3MH 220MA 3.5 OHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 3.3 mH | ±10% | 220 mA | - | Unshielded | 3.5Ohm Max | 143 @ 50kHz | 800kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18474CFIXED IND 470UH 600MA 465MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 470 µH | ±10% | 600 mA | - | Unshielded | 465mOhm Max | 56 @ 100kHz | 2.2MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18475CFIXED IND 4.7MH 200MA 4.6 OHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 4.7 mH | ±10% | 200 mA | - | Unshielded | 4.6Ohm Max | 128 @ 40kHz | 700kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18684CFIXED IND 680UH 530MA 630MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 680 µH | ±10% | 530 mA | - | Unshielded | 630mOhm Max | 55 @ 100kHz | 2MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18685CFIXED IND 6.8MH 150MA 7 OHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 6.8 mH | ±10% | 150 mA | - | Unshielded | 7Ohm Max | 144 @ 40kHz | 600kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
40100CFIXED IND 10UH 3A 23 MOHM SMD |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tray | Obsolete | Toroidal | - | 10 µH | - | 3 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
|
40101CFIXED IND 100UH 940MA 177MOHM SM |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tray | Obsolete | Toroidal | - | 100 µH | - | 940 mA | - | Unshielded | 177mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
|
40151CFIXED IND 150UH 760MA 273MOHM SM |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tray | Obsolete | Toroidal | - | 150 µH | - | 760 mA | - | Unshielded | 273mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
|
40221CFIXED IND 220UH 670MA 405MOHM SM |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tray | Obsolete | Toroidal | - | 220 µH | - | 670 mA | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
|
40331CFIXED IND 330UH 540MA 610MOHM SM |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tray | Obsolete | Toroidal | - | 330 µH | - | 540 mA | - | Unshielded | 610mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
|
40470CFIXED IND 47UH 1.42A 79MOHM SMD |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tube | Obsolete | Toroidal | - | 47 µH | - | 1.42 A | - | Unshielded | 79mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
|
404R7CFIXED IND 4.7UH 4.4A 19MOHM SMD |
0 | - |
|
데이터시트 |
4000 | Nonstandard | Tray | Obsolete | Toroidal | - | 4.7 µH | - | 4.4 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.555" W (14.22mm x 14.10mm) | 0.345" (8.76mm) |
|
41100CFIXED IND 10UH 4.7A 24 MOHM SMD |
0 | - |
|
데이터시트 |
4100 | Nonstandard | Tray | Obsolete | Toroidal | - | 10 µH | - | 4.7 A | - | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.690" L x 0.660" W (17.53mm x 16.76mm) | 0.390" (9.90mm) |
|
|
41101CFIXED IND 100UH 1.47A 158MOHM SM |
0 | - |
|
데이터시트 |
4100 | Nonstandard | Tray | Obsolete | Toroidal | - | 100 µH | - | 1.47 A | - | Unshielded | 158mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.690" L x 0.660" W (17.53mm x 16.76mm) | 0.390" (9.90mm) |
|
|
41150CFIXED IND 15UH 4A 28 MOHM SMD |
0 | - |
|
데이터시트 |
4100 | Nonstandard | Tray | Obsolete | Toroidal | - | 15 µH | - | 4 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.690" L x 0.660" W (17.53mm x 16.76mm) | 0.390" (9.90mm) |
|
|
41151CFIXED IND 150UH 1.16A 247MOHM SM |
0 | - |
|
데이터시트 |
4100 | Nonstandard | Tray | Obsolete | Toroidal | - | 150 µH | - | 1.16 A | - | Unshielded | 247mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.690" L x 0.660" W (17.53mm x 16.76mm) | 0.390" (9.90mm) |
|
|
41220CFIXED IND 22UH 3.3A 33 MOHM SMD |
0 | - |
|
데이터시트 |
4100 | Nonstandard | Tube | Obsolete | Toroidal | - | 22 µH | - | 3.3 A | - | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.690" L x 0.660" W (17.53mm x 16.76mm) | 0.390" (9.90mm) |
