고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CIH10T6N8JNCFIXED IND 6.8NH 700MA 220MOHM SM |
0 | - |
|
데이터시트 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 6.8 nH | ±5% | 700 mA | - | Unshielded | 220mOhm Max | 10 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T33NJNCFIXED IND 33NH 500MA 550MOHM SMD |
0 | - |
|
데이터시트 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 33 nH | ±5% | 500 mA | - | Unshielded | 550mOhm Max | 12 @ 100MHz | 1.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T39NJNCFIXED IND 39NH 400MA 600MOHM SMD |
0 | - |
|
데이터시트 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 39 nH | ±5% | 400 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T56NJNCFIXED IND 56NH 400MA 750MOHM SMD |
0 | - |
|
데이터시트 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 56 nH | ±5% | 400 mA | - | Unshielded | 750mOhm Max | 12 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR12JNCFIXED IND 120NH 300MA 1.2OHM SMD |
0 | - |
|
데이터시트 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 120 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR27JNCFIXED IND 270NH 200MA 1.5OHM SMD |
0 | - |
|
데이터시트 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 270 nH | ±5% | 200 mA | - | Unshielded | 1.5Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
LGJ7045TS-680MR75-HFIXED IND 68UH 760MA 270MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 760 mA | 750mA | Shielded | 270mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-6R8M1R9-HFIXED IND 6.8UH 2.04A 39MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.04 A | 1.9A | Shielded | 39mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

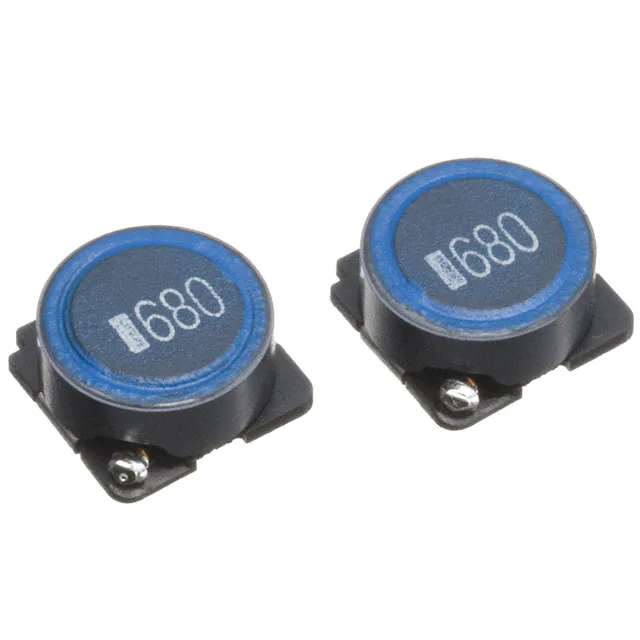

LGJ10145TS-680M1R2-HFIXED IND 68UH 1.3A 140 MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.2A | Shielded | 140mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
LGJ12565TS-101M1R6-HFIXED IND 100UH 1.9A 123MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.9 A | 1.6A | Shielded | 123mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-150M4R2-HFIXED IND 15UH 4.4A 23.7MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.4 A | 4.2A | Shielded | 23.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
LGJ12575TS-101M1R9-HFIXED IND 100UH 1.9A 125MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.9 A | 1.9A | Shielded | 125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-330M3R2-HFIXED IND 33UH 3.4A 39.5MOHM SMD |
0 | - |
|
데이터시트 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 3.2A | Shielded | 39.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
ETQ-P2H0R3BFAFIXED IND 290NH 36A 540 MOHM SMD |
0 | - |
|
- |
PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | - | 290 nH | ±20% | 36 A | - | Shielded | 540mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
55014722400FIXED IND 4.7UH 180MA 2.6 OHM |
0 | - |
|
- |
5501 | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 180 mA | - | Unshielded | 2.6Ohm Max | 20 @ 7.9MHz | 140MHz | - | - | 7.9 MHz | - | - | - | - | - |
|
|
55031024400FIXED IND 1UH 230MA 2.7 OHM |
0 | - |
|
데이터시트 |
5503 | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±2% | 230 mA | - | Unshielded | 2.7Ohm Max | - | 450MHz | - | - | 35 MHz | - | - | - | - | - |
|
|
CDEP106NP-100MC-88FIXED IND 10UH 6.5A 15.9MOHM SMD |
0 | - |
|
데이터시트 |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | 4.3A | Shielded | 15.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
|
CDEP106NP-1R2MC-50FIXED IND 1.2UH 13.5A 3.44 MOHM |
0 | - |
|
데이터시트 |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 13.5 A | 19.2A | Shielded | 3.44mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
|
CDEP106NP-1R4MC-88FIXED IND 1.4UH 17.5A 2.3MOHM SM |
0 | - |
|
데이터시트 |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 17.5 A | 12A | Shielded | 2.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
|
CDEP106NP-1R8MC-50FIXED IND 1.8UH 11.5A 5.04 MOHM |
0 | - |
|
데이터시트 |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 11.5 A | 16A | Shielded | 5.04mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
