고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

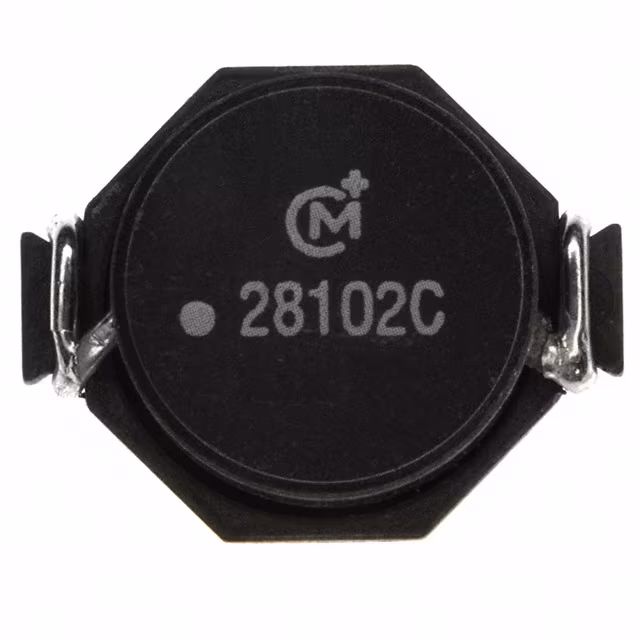

28102CFIXED IND 1UH 15.5A 2.6 MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | - | 15.5 A | - | Unshielded | 2.6mOhm Max | 45.6 @ 1MHz | 104MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

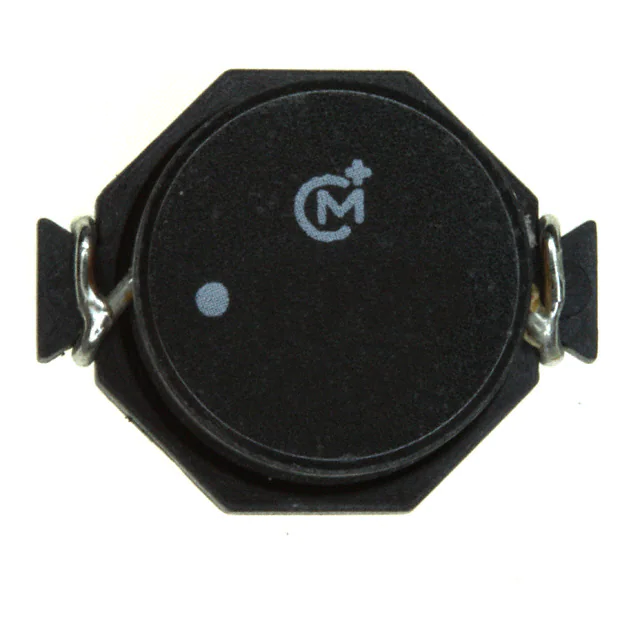

28103CFIXED IND 10UH 5.9A 18 MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | - | 5.9 A | - | Unshielded | 18mOhm Max | 31.1 @ 1MHz | 22.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

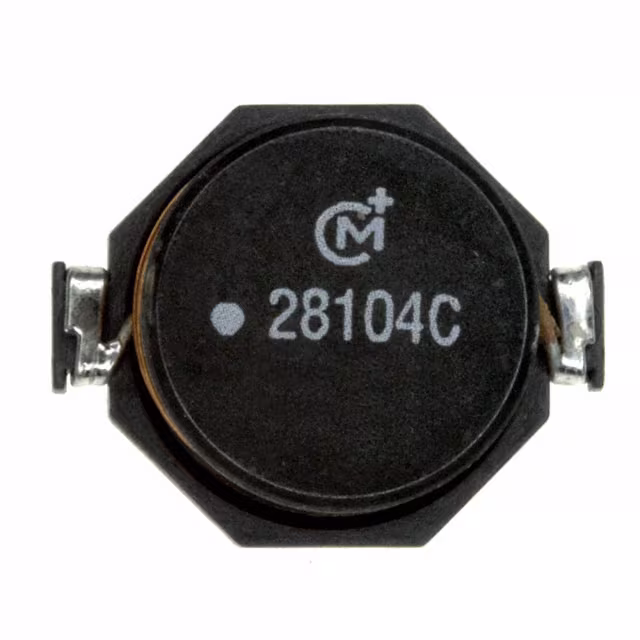

28104CFIXED IND 100UH 1.8A 174MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | - | 1.8 A | - | Unshielded | 174mOhm Max | 21.4 @ 800kHz | 7.7MHz | - | -40°C ~ 125°C | 800 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

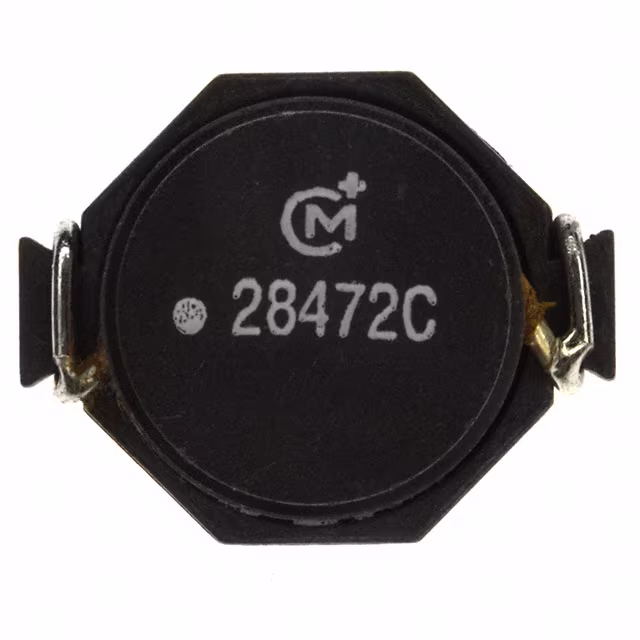

28472CFIXED IND 4.7UH 8.3A 10 MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | - | 8.3 A | - | Unshielded | 10mOhm Max | 33.3 @ 1MHz | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
28473CFIXED IND 47UH 2.66A 86 MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | - | 2.66 A | - | Unshielded | 86mOhm Max | 31.5 @ 1MHz | 10.4MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

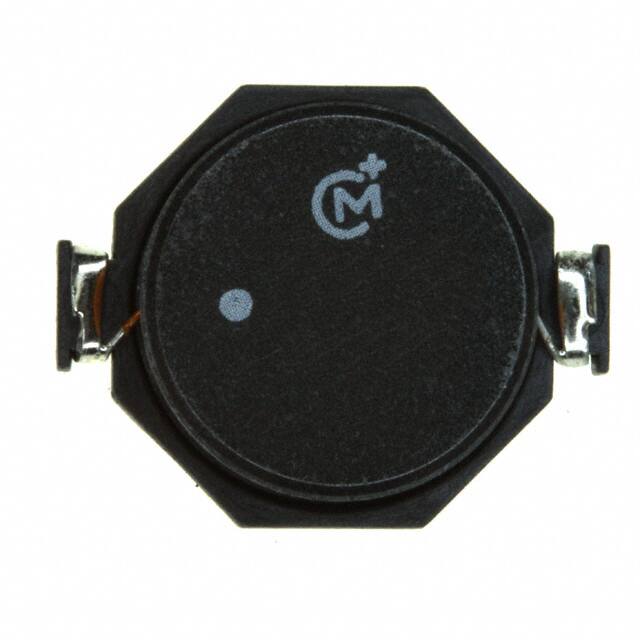

28474CFIXED IND 470UH 780MA 816MOHM SM |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | - | 780 mA | - | Unshielded | 816mOhm Max | 31.7 @ 800kHz | 4.3MHz | - | -40°C ~ 125°C | 800 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

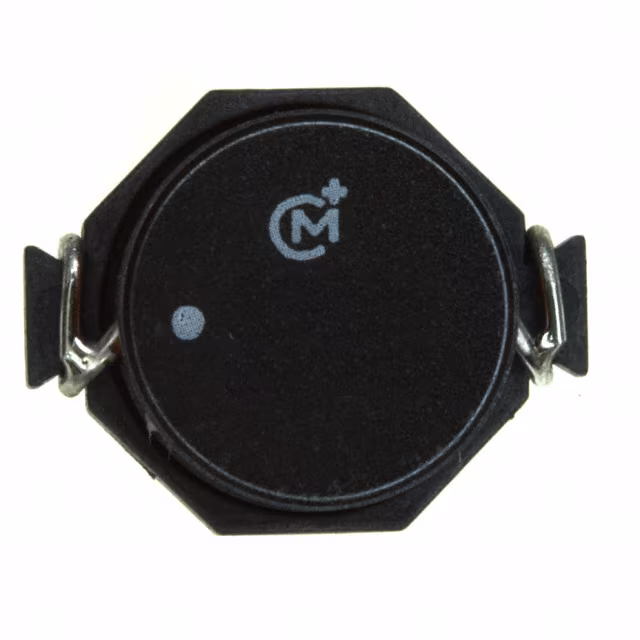

28682CFIXED IND 6.8UH 6.8A 14 MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | - | 6.8 A | - | Unshielded | 14mOhm Max | 31.2 @ 1MHz | 29MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

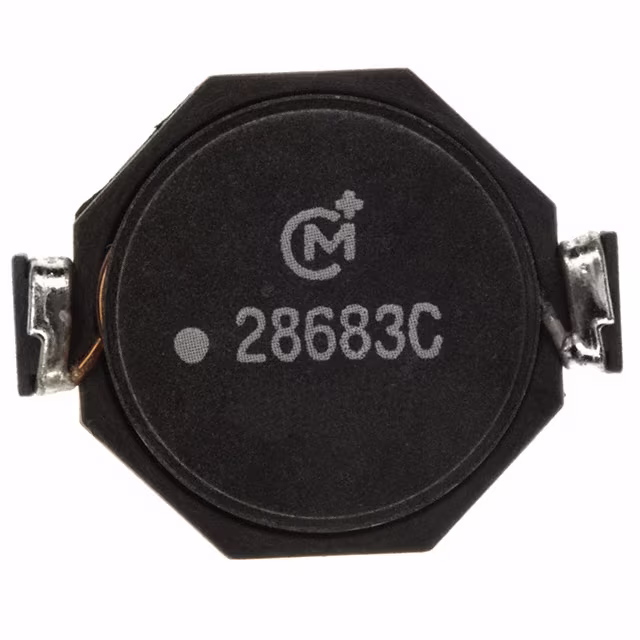

28683CFIXED IND 68UH 2.16A 122MOHM SMD |
0 | - |
|
데이터시트 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | - | 2.16 A | - | Unshielded | 122mOhm Max | 33.9 @ 1MHz | 8.6MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
35112CFIXED IND 1.1UH 8A 15 MOHM SMD |
0 | - |
|
데이터시트 |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.1 µH | ±25% | 8 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35152CFIXED IND 1.5UH 6.5A 19 MOHM SMD |
0 | - |
|
데이터시트 |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±25% | 6.5 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35251CFIXED IND 250NH 15.5A 4.5MOHM SM |
0 | - |
|
데이터시트 |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 250 nH | ±25% | 15.5 A | - | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|

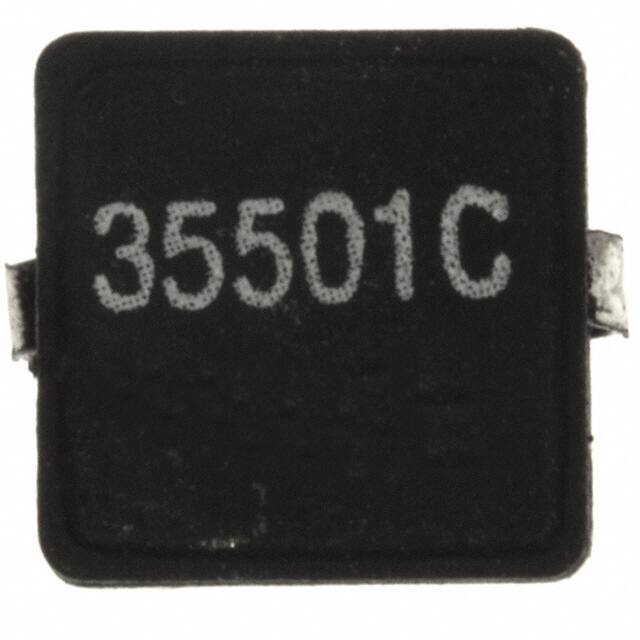

35501CFIXED IND 500NH 11.5A 7 MOHM SMD |
0 | - |
|
데이터시트 |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 500 nH | ±25% | 11.5 A | - | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35801CFIXED IND 800NH 9.5A 10 MOHM SMD |
0 | - |
|
데이터시트 |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 800 nH | ±25% | 9.5 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
18473CFIXED IND 47UH 1.65A 55 MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 47 µH | ±10% | 1.65 A | - | Unshielded | 55mOhm Max | 55 @ 500kHz | 8.5MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18334CFIXED IND 330UH 730MA 335MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 330 µH | ±10% | 730 mA | - | Unshielded | 335mOhm Max | 58 @ 100kHz | 3MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18224CFIXED IND 220UH 900MA 230MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 220 µH | ±10% | 900 mA | - | Unshielded | 230mOhm Max | 46 @ 100kHz | 3.5MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18223CFIXED IND 22UH 2.42A 25 MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 22 µH | ±10% | 2.42 A | - | Unshielded | 25mOhm Max | 59 @ 500kHz | 11.8MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18153CFIXED IND 15UH 3A 18 MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 15 µH | ±10% | 3 A | - | Unshielded | 18mOhm Max | 55 @ 500kHz | 15.9MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18105CFIXED IND 1MH 440MA 1 OHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 1 mH | ±10% | 440 mA | - | Unshielded | 1Ohm Max | 94 @ 50kHz | 1.6MHz | - | 0°C ~ 70°C | 50 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18104CFIXED IND 100UH 1.2A 100 MOHM TH |
0 | - |
|
데이터시트 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 40 @ 100kHz | 7.4MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
