고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,95mm.jpg)
|
LK2125R15M-TFIXED IND 150NH 270MA 200MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 150 nH | ±20% | 270 mA | - | Unshielded | 200mOhm Max | 20 @ 25MHz | 200MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R18K-TFIXED IND 180NH 270MA 250MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 180 nH | ±10% | 270 mA | - | Unshielded | 250mOhm Max | 20 @ 25MHz | 185MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R18M-TFIXED IND 180NH 270MA 250MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 180 nH | ±20% | 270 mA | - | Unshielded | 250mOhm Max | 20 @ 25MHz | 185MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R22K-TFIXED IND 220NH 250MA 300MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 220 nH | ±10% | 250 mA | - | Shielded | 300mOhm Max | 20 @ 25MHz | 170MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R22M-TFIXED IND 220NH 250MA 300MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 220 nH | ±20% | 250 mA | - | Unshielded | 300mOhm Max | 20 @ 25MHz | 170MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R27M-TFIXED IND 270NH 250MA 350MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 270 nH | ±20% | 250 mA | - | Unshielded | 350mOhm Max | 20 @ 25MHz | 150MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R33K-TFIXED IND 330NH 250MA 400MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±10% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R33M-TFIXED IND 330NH 250MA 400MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R39K-TFIXED IND 390NH 200MA 450MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 390 nH | ±10% | 200 mA | - | Unshielded | 450mOhm Max | 25 @ 25MHz | 135MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R47K-TFIXED IND 470NH 200MA 500MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±10% | 200 mA | - | Unshielded | 500mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R56K-TFIXED IND 560NH 150MA 550MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±10% | 150 mA | - | Unshielded | 550mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R56M-TFIXED IND 560NH 150MA 550MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±20% | 150 mA | - | Unshielded | 550mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R68K-TFIXED IND 680NH 150MA 600MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±10% | 150 mA | - | Shielded | 600mOhm Max | 25 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R68M-TFIXED IND 680NH 150MA 600MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±20% | 150 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,45mm.jpg)
|
LK2125R82K-TFIXED IND 820NH 150MA 650MOHM SM |
0 | - |
|
데이터시트 |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 820 nH | ±10% | 150 mA | - | Shielded | 650mOhm Max | 25 @ 25MHz | 100MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NP04SZB3R3NFIXED IND 3.3UH 2A 60 MOHM SMD |
0 | - |
|
데이터시트 |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±30% | 2 A | 2.2A | Shielded | 60mOhm Max | - | 30MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
PG0322.122NLFIXED IND 1.2UH 32MA 1.674 MOHM |
0 | - |
|
- |
PG0322NL | Radial, Horizontal - Corner Terminals | - | Obsolete | Wirewound | - | 1.2 µH | ±15% | 32 mA | 30A | Unshielded | 1.674mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.374" (9.50mm) |
|

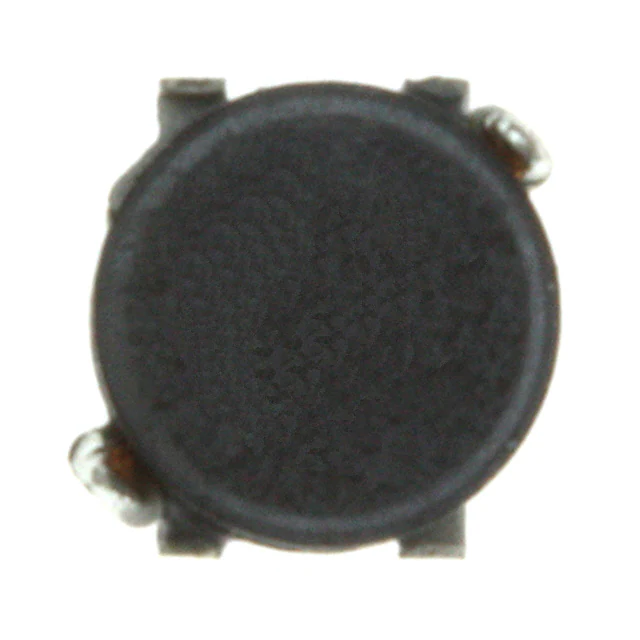

B82468A4103MFIXED IND 10UH 750MA 330 MOHM |
0 | - |
|
데이터시트 |
B82468A4 | Nonstandard | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | 10 µH | ±20% | 750 mA | 900mA | Unshielded | 330mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W x 0.055" H (3.00mm x 3.00mm x 1.40mm) | - |
|
B82468A4222MFIXED IND 2.2UH 1.48A 87MOHM SMD |
0 | - |
|
데이터시트 |
B82468A4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.48 A | 1.9A | Unshielded | 87mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
PG0087.333NLFIXED IND 33UH 650MA 386MOHM SMD |
0 | - |
|
데이터시트 |
PG0087NL | Nonstandard, Corner Terminals | Tray | Active | - | - | 33 µH | ±20% | 650 mA | 650mA | Shielded | 386mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
