고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

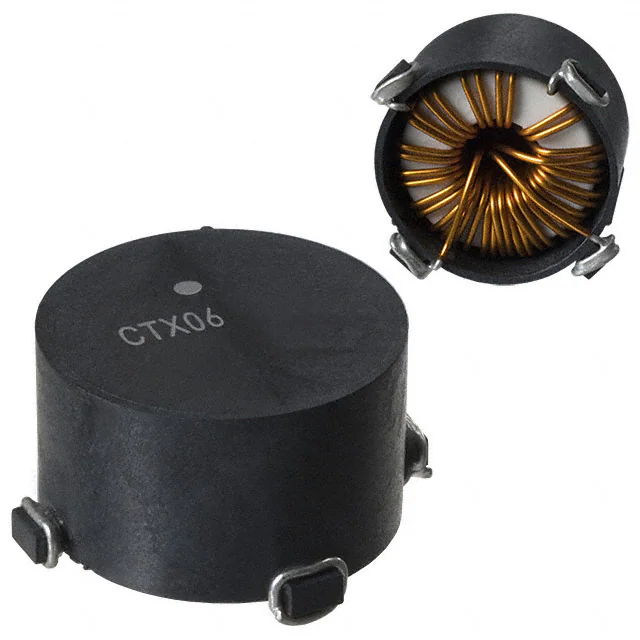

CTX06-14620FIXED IND 47UH 7.1A 16.6MOHM SMD |
0 | - |
|
데이터시트 |
CTX | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | - | 7.1 A | - | Unshielded | 16.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|
|
CTX06-14621FIXED IND 33UH 7.7A 14.1MOHM SMD |
0 | - |
|
데이터시트 |
CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±0.25% | 7.7 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|
|
CTX06-14622FIXED IND 22UH 8.5A 11.7MOHM SMD |
0 | - |
|
데이터시트 |
CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±0.25% | 8.5 A | - | Unshielded | 11.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|
B82442A1102K000FIXED IND 1UH 1.8A 24 MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.8 A | - | Unshielded | 24mOhm Max | 10 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442A1103K000FIXED IND 10UH 690MA 168MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 690 mA | - | Unshielded | 168mOhm Max | 10 @ 2.52MHz | 19MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

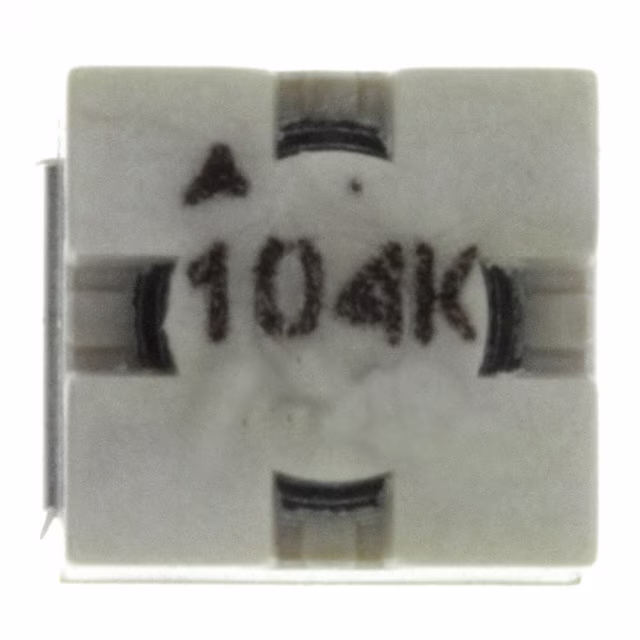

B82442A1104K000FIXED IND 100UH 250MA 1.28OHM SM |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 250 mA | - | Unshielded | 1.28Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
.JPG)
|
B82442A1105K000FIXED IND 1MH 85MA 12 OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 85 mA | - | Unshielded | 12Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1106K000FIXED IND 10MH 25MA 120 OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 25 mA | - | Unshielded | 120Ohm Max | 30 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 125°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

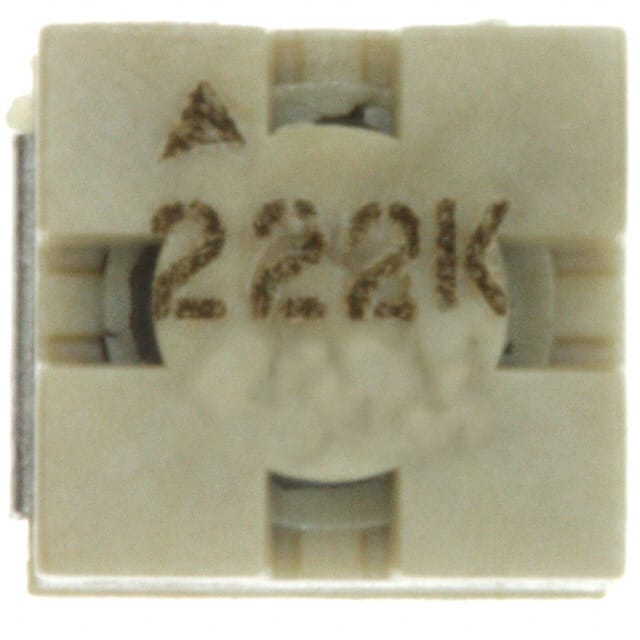

B82442A1222K000FIXED IND 2.2UH 1.3A 48 MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1.3 A | - | Unshielded | 48mOhm Max | 10 @ 7.96MHz | 42MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1223K000FIXED IND 22UH 480MA 350MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 480 mA | - | Unshielded | 350mOhm Max | 10 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1224K000FIXED IND 220UH 170MA 2.72OHM SM |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 170 mA | - | Unshielded | 2.72Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1225K000FIXED IND 2.2MH 55MA 28 OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 55 mA | - | Unshielded | 28Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1472K000FIXED IND 4.7UH 950MA 88MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 950 mA | - | Unshielded | 88mOhm Max | 10 @ 7.96MHz | 29MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1473K000FIXED IND 47UH 340MA 680MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 340 mA | - | Unshielded | 680mOhm Max | 10 @ 2.52MHz | 8.5MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442A1474K000FIXED IND 470UH 120MA 5.6OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 120 mA | - | Unshielded | 5.6Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442A1475K000FIXED IND 4.7MH 36MA 62.4OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 36 mA | - | Unshielded | 62.4Ohm Max | 30 @ 252kHz | 900kHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442H1102K000FIXED IND 1UH 2.5A 24 MOHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 2.5 A | - | Unshielded | 24mOhm Max | 10 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1104K000FIXED IND 100UH 350MA 1.28OHM SM |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 350 mA | - | Unshielded | 1.28Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1105K000FIXED IND 1MH 120MA 12 OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 120 mA | - | Unshielded | 12Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1106K000FIXED IND 10MH 35MA 120 OHM SMD |
0 | - |
|
데이터시트 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 35 mA | - | Unshielded | 120Ohm Max | 30 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 150°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
