고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6PM7R5NFIXED IND 7.5UH 1.3A 70 MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 7.5 µH | ±30% | 1.3 A | - | Shielded | 70mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM100MFIXED IND 10UH 1A 85 MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1 A | - | Shielded | 85mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM120MFIXED IND 12UH 950MA 110MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 950 mA | - | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM220MFIXED IND 22UH 700MA 200MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 700 mA | - | Shielded | 200mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM330MFIXED IND 33UH 550MA 290MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 550 mA | - | Shielded | 290mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM470MFIXED IND 47UH 440MA 360MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 440 mA | - | Shielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM820MFIXED IND 82UH 360MA 680MOHM SMD |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 360 mA | - | Shielded | 680mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM101MFIXED IND 100UH 320MA 970MOHM SM |
0 | - |
|
데이터시트 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 320 mA | - | Shielded | 970mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|

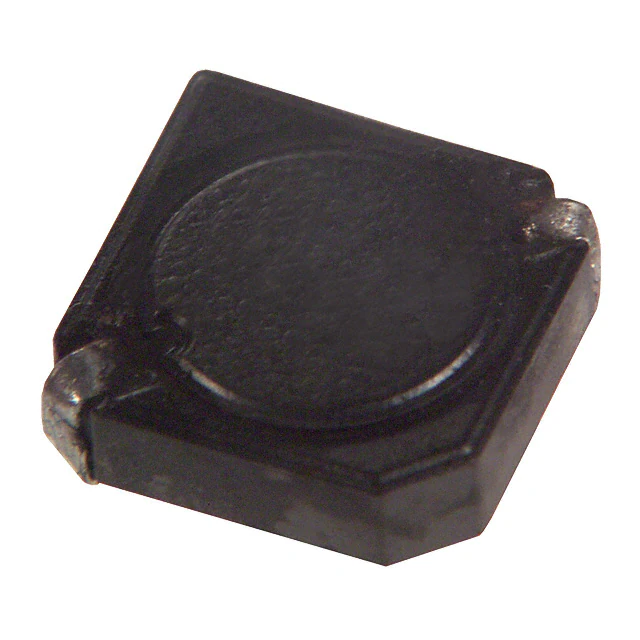

ELL-6PV4R7NFIXED IND 4.7UH 1.7A 44 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.7 A | - | Shielded | 44mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PV6R8NFIXED IND 6.8UH 1.25A 55MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.25 A | - | Shielded | 55mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PV100MFIXED IND 10UH 1A 85 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 85mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PV101MFIXED IND 100UH 340MA 750MOHM SM |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 340 mA | - | Shielded | 750mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
ELL-ATV2R2NFIXED IND 2.2UH 6.2A 6.3MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.2 A | - | Shielded | 6.3mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV3R3NFIXED IND 3.3UH 5.35A 8.8MOHM SM |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.35 A | - | Shielded | 8.8mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV5R1NFIXED IND 5.1UH 4.35A 14MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.1 µH | ±30% | 4.35 A | - | Shielded | 14mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV6R8NFIXED IND 6.8UH 4A 16 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4 A | - | Shielded | 16mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV8R2NFIXED IND 8.2UH 3.7A 18 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3.7 A | - | Shielded | 18mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV220MFIXED IND 22UH 2.2A 45 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | - | Shielded | 45mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV270MFIXED IND 27UH 2A 56 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2 A | - | Shielded | 56mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV101MFIXED IND 100UH 1A 180 MOHM SMD |
0 | - |
|
데이터시트 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | - | Shielded | 180mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
