고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616ABERR47MA1IHLP-1616AB-A1 .47 20% ER E3 |
4,128 | - |
|
데이터시트 |
IHLP-1616AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 5 A | 13A | Shielded | 22mOhm Max | - | 101MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
SBC3-2R2-602FIXED IND 2.2UH 6A 20 MOHM TH |
3,579 | - |
|
데이터시트 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6 A | 7.2A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
VLCF5024T-101MR28-2FIXED IND 100UH 280MA 838MOHM SM |
3,440 | - |
|
데이터시트 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 280 mA | 280mA | Shielded | 838mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|

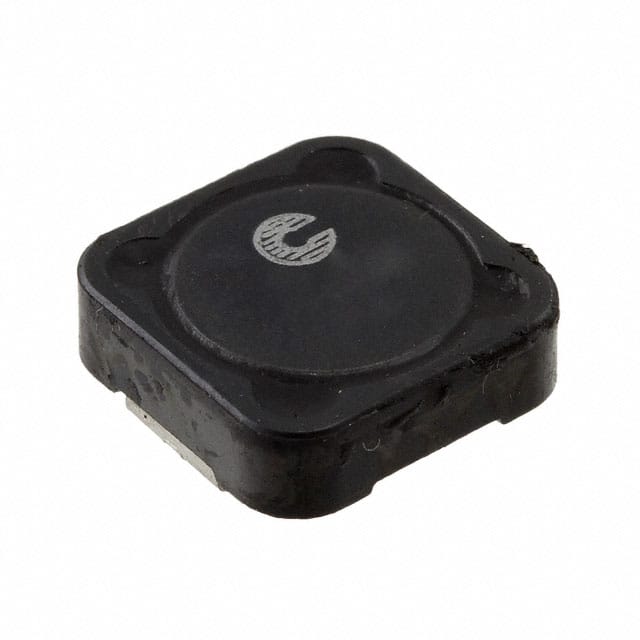

DR124-1R0-RFIXED IND 1UH 13.9A 3.6 MOHM SMD |
3,119 | - |
|
데이터시트 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 13.9 A | 18A | Shielded | 3.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
0512CDMCCDS-2R2MCFIXED IND 2.2UH 3.6A 72.6MOHM SM |
3,076 | - |
|
데이터시트 |
0512CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.6 A | 4.8A | Shielded | 72.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.047" (1.20mm) |
|
SLF7045T-3R3M2R2-HFIXED IND 3.3UH 2.2A 33.6MOHM SM |
2,376 | - |
|
데이터시트 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 2.2A | Shielded | 33.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SLF7045T-150M1R5-HFIXED IND 15UH 1.5A 81.6MOHM SMD |
2,344 | - |
|
데이터시트 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.5 A | 1.5A | Shielded | 81.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SBC3-471-491FIXED IND 470UH 490MA 1.02OHM TH |
2,009 | - |
|
데이터시트 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 490 mA | 460mA | Unshielded | 1.02Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.453" (11.50mm) |
|
SLF7045T-330M1R1-HFIXED IND 33UH 1.1A 144 MOHM SMD |
1,919 | - |
|
데이터시트 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.1A | Shielded | 144mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

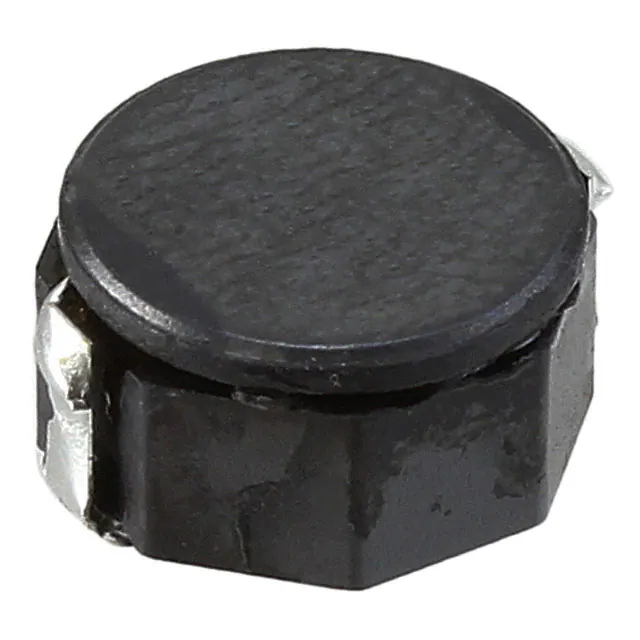

CDRH8D43HPNP-220NCFIXED IND 22UH 1.5A 125 MOHM SMD |
1,700 | - |
|
데이터시트 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.5 A | 3A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
PA4990.151HLTFIXED IND 150NH 77A 0.125MOHM SM |
1,576 | - |
|
데이터시트 |
PA4990 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 77 A | 83A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7447706331FIXED IND 330UH 1.05A 450MOHM SM |
1,575 | - |
|
데이터시트 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 1.05 A | 1.4A | Shielded | 450mOhm Max | - | 2.6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH127L125NP-7R5NCFIXED IND 7.5UH 7A 16.3MOHM SMD |
1,448 | - |
|
데이터시트 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 7.5 µH | ±30% | 7 A | 9.2A | Shielded | 16.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
VLCF5024T-1R8N1R8-2FIXED IND 1.8UH 1.86A 26MOHM SMD |
1,103 | - |
|
데이터시트 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 1.86 A | 1.86A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|
MWLA0603S-R33MTFIXED IND 0.33UH 3.9MOHM 32000MA |
961 | - |
|
데이터시트 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 20 A | 32A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
SWPA8040S100MTFIXED IND 10UH 3.3A 38 MOHM SMD |
939 | - |
|
데이터시트 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 4.1A | Shielded | 38mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
SDR1806-150MLFIXED IND 15UH 4.3A 35 MOHM SMD |
864 | - |
|
데이터시트 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.3 A | 8A | Unshielded | 35mOhm Max | 20 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
CDRH127L125NP-471MCFIXED IND 470UH 950MA 731MOHM SM |
783 | - |
|
데이터시트 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 470 µH | ±20% | 950 mA | 1.2A | Shielded | 731mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
AMPLA5030S-6R8MTFIXED IND 6.8UH 4A 76.2 MOHM SMD |
777 | - |
|
데이터시트 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 4 A | 4.3A | Shielded | 76.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
7447706022FIXED IND 2.2UH 10.2A 8.5MOHM SM |
702 | - |
|
데이터시트 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 10.2 A | 16.5A | Shielded | 8.5mOhm Max | - | 40.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
