고정 인덕터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744383350068HTHIGH TEMP POWER INDUCTOR 3015; 0 |
2,000 | - |
|
데이터시트 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 680 nH | ±30% | 6.8 A | 7.4A | Shielded | 25.5mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335010HTHIGH TEMP POWER INDUCTOR 3015; 1 |
2,000 | - |
|
데이터시트 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 1 µH | ±20% | 4.5 A | 5.9A | Shielded | 53.2mOhm Max | - | 73MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335047HTHIGH TEMP POWER INDUCTOR 3015; 4 |
1,997 | - |
|
데이터시트 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 4.7 µH | ±20% | 2.2 A | 3.2A | Shielded | 187.4mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335033HTHIGH TEMP POWER INDUCTOR 3015; 3 |
1,990 | - |
|
데이터시트 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 3.3 µH | ±20% | 2.7 A | 4A | Shielded | 133mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335022HTHIGH TEMP POWER INDUCTOR 3015; 2 |
1,960 | - |
|
데이터시트 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 2.2 µH | ±20% | 3.2 A | 5A | Shielded | 96mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335100HTHIGH TEMP POWER INDUCTOR 3015; 1 |
1,855 | - |
|
데이터시트 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 10 µH | ±20% | 1.2 A | 2.4A | Shielded | 549.5mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
PA0512.700NLTFIXED IND 72NH 31A 0.32 MOHM SMD |
3,120 | - |
|
데이터시트 |
PA0512NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 72 nH | ±20% | 31 A | 58A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
P1167.334NLTFIXED IND 330UH 350MA 1.47OHM SM |
2,455 | - |
|
데이터시트 |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 350 mA | 350mA | Shielded | 1.47Ohm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
P1167.183NLTFIXED IND 18UH 1.5A 73 MOHM SMD |
2,228 | - |
|
데이터시트 |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 1.5 A | 1.5A | Shielded | 73mOhm Max | - | 18MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
P1166.681NLTFIXED IND 680NH 5.5A 6 MOHM SMD |
1,200 | - |
|
데이터시트 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±30% | 5.5 A | 5.9A | Shielded | 6mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|

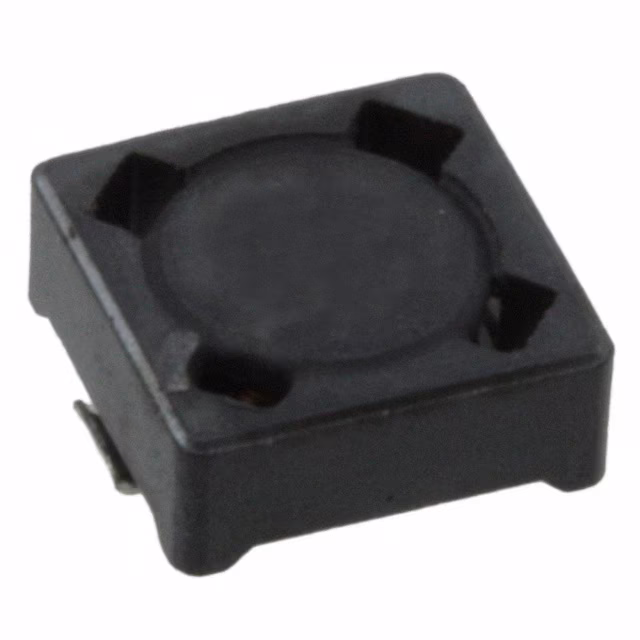

P1166.153NLTFIXED IND 15UH 1.4A 92 MOHM SMD |
1,200 | - |
|
데이터시트 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.4 A | 1.5A | Shielded | 92mOhm Max | - | 22MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.682NLTFIXED IND 6.8UH 2.1A 40 MOHM SMD |
1,176 | - |
|
데이터시트 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 2.1 A | 2.1A | Shielded | 40mOhm Max | - | 38MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.473NLTFIXED IND 47UH 830MA 260MOHM SMD |
1,035 | - |
|
데이터시트 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 830 mA | 830mA | Shielded | 260mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.124NLTFIXED IND 120UH 530MA 645MOHM SM |
1,015 | - |
|
데이터시트 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 530 mA | 550mA | Shielded | 645mOhm Max | - | 7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.223NLTFIXED IND 22UH 1.2A 126 MOHM SMD |
969 | - |
|
데이터시트 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.2 A | 1.2A | Shielded | 126mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
PA4304.104NLTFIXED IND 100UH 1.3A 160MOHM SMD |
900 | - |
|
데이터시트 |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PCMB105T-R47MSFIXED IND 470NH 36A 1.1 MOHM SMD |
480 | - |
|
데이터시트 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 36 A | 50A | Unshielded | 1.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.189" (4.80mm) |
|
VLBU1024660R12MFFIXED IND 120NH 55A 0.23MOHM SMD |
207 | - |
|
데이터시트 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 55 A | 55A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.236" (6.00mm) |
|
1210-102JFIXED IND 1UH 515MA 700 MOHM SMD |
1,000 | - |
|
데이터시트 |
1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 515 mA | - | Unshielded | 700mOhm Max | 30 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210-682JFIXED IND 6.8UH 321MA 1.8OHM SMD |
500 | - |
|
데이터시트 |
1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±5% | 321 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
