전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
ADCM-S05R5SA126QB CAPACITOR 12F 5.5V TH Abracon LLC	-	RFQ	데이터시트	ADCM-S05R5S	Bulk	Active	12 F	-10%, +20%	5.5 V	90mOhm @ 1kHz	-	PC Pins	Through Hole	Radial	0.701" (17.80mm)	1.004" L x 0.512" W (25.50mm x 13.00mm)	1.457" (37.00mm)	-40°C ~ 70°C
B1325-2R5106-R CAP 10F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	데이터시트	B	Bulk	Obsolete	10 F	-20%, +80%	2.5 V	60mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	1.118" (28.40mm)	-25°C ~ 70°C
MAL223531008E3 CAP ALUM 50F 3V 2000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Box	Active	50 F	-20%, +50%	3 V	14mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C

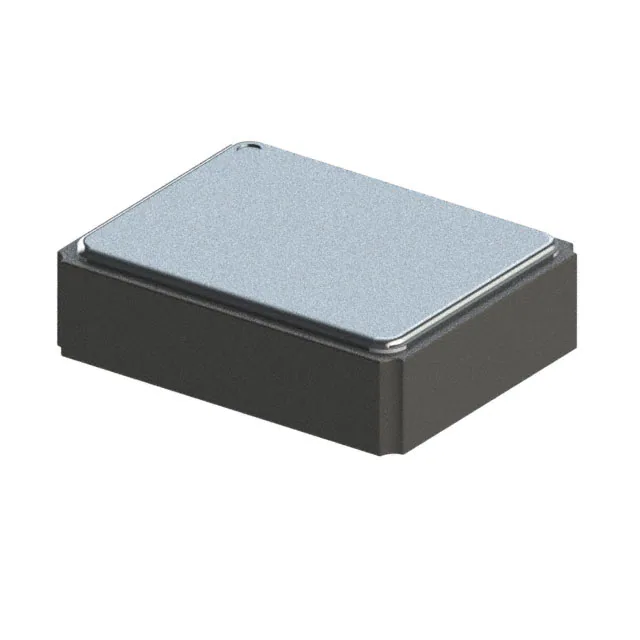

CPX3225A752D CAP 7.5MF 2.6V SURFACE MNT Seiko Instruments	-	RFQ	데이터시트	CPX	Tape & Reel (TR)	Obsolete	7.5 mF	-	2.6 V	25Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	1210 (3225 Metric)	-	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.035" (0.90mm)	-30°C ~ 70°C
MAL219642474E3 CAP 470MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	196 DLC	Bulk	Active	470 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.512" Dia (13.00mm)	0.295" (7.50mm)	-25°C ~ 70°C
MAL222050007E3 CAP ALUM 25F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	25 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
TV1020-3R0605-AP CAP 6.0F 3.0V TV SERIES CYL Eaton - Electronics Division	-	RFQ	-	TV	Tape & Box (TB)	Active	6 F	-10%, +30%	3 V	35mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.878" (22.30mm)	-40°C ~ 65°C
ADCM-S06R0SA126RB CAPACITOR 12F 6V TH Abracon LLC	-	RFQ	데이터시트	ADCM-S06R0S	Bulk	Active	12 F	0%, +30%	6 V	90mOhm @ 1kHz	-	PC Pins	Through Hole	Radial	0.945" (24.00mm)	1.280" L x 0.650" W (32.50mm x 16.50mm)	1.142" (29.00mm)	-40°C ~ 65°C
MAL222030007E3 CAP ALUM 25F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	25 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
CHT-5R4L105R-TW 5.4V 1F 16818 T/DA EDLC CDA (Zhifengwei Technology)	-	RFQ	데이터시트	CHT		Active	1 F	-10%, +30%	5.4 V	240mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	-	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.768" (19.50mm)	-40°C ~ 85°C
SCCV40E506MRB SUPERCAP CYLINDRICAL KYOCERA AVX	-	RFQ	-	SCC	Bulk	Active	50 F	±20%	3 V	-	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.634" (41.50mm)	-40°C ~ 65°C
CHZ-2R5336R-TW 2.5V 33F 16*35 EDLC CDA (Zhifengwei Technology)	-	RFQ	데이터시트	CHZ		Active	33 F	-10%, +30%	2.5 V	19mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.437" (36.50mm)	-40°C ~ 85°C
MAL222030002E3 CAP ALUM 30F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	30 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
PB-5R0V474 CAP 470MF -20% +80% 5V T/H Eaton - Electronics Division	-	RFQ	데이터시트	PB	Bulk	Obsolete	470 mF	-20%, +80%	5 V	1Ohm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.571" (14.50mm)	-25°C ~ 70°C
JJD0E408MSEGBB CAP 4000F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	데이터시트	EVerCAP® JJD	Bulk	Obsolete	4000 F	±20%	2.5 V	2.2mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.126" (28.60mm)	2.500" Dia (63.50mm)	6.024" (153.00mm)	-25°C ~ 60°C
CHT-5R4L255R-TW 5.4V 2.5F 201022 T/DA EDLC CDA (Zhifengwei Technology)	-	RFQ	데이터시트	CHT		Active	2.5 F	-10%, +30%	5.4 V	150mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	-	0.787" L x 0.394" W (20.00mm x 10.00mm)	0.925" (23.50mm)	-40°C ~ 85°C
MAL222050002E3 CAP ALUM 30F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	30 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
SCCV40B506SRBLE SUPERCAP CYLINDRICAL KYOCERA AVX	-	RFQ	데이터시트	SCC LE	Bulk	Active	50 F	-10%, +30%	2.7 V	9mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.634" (41.50mm)	-40°C ~ 65°C
SCAP,PBLL-1.0/5.4 CAP 1F -10% +20% 5.4V UCAP PACK Tecate Group	-	RFQ	데이터시트	PBLL	Bulk	Active	1 F	-10%, +20%	5.4 V	425mOhm @ 1kHz	1000 Hrs @ 85°C	Wire Leads with Connector	User Defined	Radial, Can	-	0.768" L x 0.709" W (19.50mm x 18.00mm)	0.374" (9.50mm)	-40°C ~ 85°C
SCMR18D105PSBB0H CAP 1F 0% +100% 5.4V T/H KYOCERA AVX	-	RFQ	데이터시트	SCM, High Reliability	Bulk	Last Time Buy	1 F	0%, +100%	5.4 V	250mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.728" L x 0.374" W (18.50mm x 9.50mm)	0.866" (22.00mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1... 94 95 96 979899 100 101...143 Next»
