전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
EDC334Z5R5H CAP 330MF -20% +80% 5.5V T/H Cornell Dubilier Knowles	3,895	-	RFQ	데이터시트	EDC	Bulk	Active	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.236" (6.00mm)	-25°C ~ 70°C
TPLC-3R8/20MR10X16 CAP LITH HYBRID 20F 3.8V T/H Tecate Group	332	-	RFQ	데이터시트	TPLC	Tray	Active	20 F	±20%	3.8 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.709" (18.00mm)	-15°C ~ 70°C
FC0V474ZFTBR24 CAP 470MF -20% +80% 3.5V SMD KEMET	30,452	-	RFQ	데이터시트	FC	Tape & Reel (TR)	Active	470 mF	-20%, +80%	3.5 V	25Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.413" Dia (10.50mm)	0.335" (8.50mm)	-25°C ~ 70°C
SCMR18F105PSBA0 CAP 1F 0% +100% 5.5V T/H KYOCERA AVX	695	-	RFQ	데이터시트	SCM	Bulk	Last Time Buy	1 F	0%, +100%	5.5 V	250mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.728" L x 0.374" W (18.50mm x 9.50mm)	0.866" (22.00mm)	-40°C ~ 65°C
BCAP0010 P270 S01 CAP 10F -10% +20% 2.7V T/H Maxwell Technologies	10,510	-	RFQ	데이터시트	-	Bulk	Active	10 F	-10%, +20%	2.7 V	30mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.240" (31.50mm)	-40°C ~ 65°C
TPLC-3R8/30MR10X16 CAP LITH HYBRID 30F 3.8V T/H Tecate Group	6,915	-	RFQ	데이터시트	TPLC	Tray	Active	30 F	±20%	3.8 V	260mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.709" (18.00mm)	-15°C ~ 70°C
DGH155Q5R5 CAP 1.5F -10%, +30% 5.5V TH Cornell Dubilier Knowles	6,035	-	RFQ	데이터시트	DGH	Bulk	Active	1.5 F	-10%, +30%	5.5 V	160mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.472" (12.00mm)	0.669" L x 0.335" W (17.00mm x 8.50mm)	0.984" (25.00mm)	-40°C ~ 85°C
RSCH11055R5L09015T CAP 1F -20% +80% 5.5V T/H Elna America	1,386	-	RFQ	데이터시트	DH	Bulk	Not For New Designs	1 F	-20%, +80%	5.5 V	30Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
TV1030-3R0106-R CAP 10F -10% +30% 3V T/H Eaton - Electronics Division	242	-	RFQ	데이터시트	TV	Bulk	Active	10 F	-10%, +30%	3 V	26mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.413" Dia (10.50mm)	1.240" (31.50mm)	-40°C ~ 85°C
EDS104Z5R5C CAP 100MF -20% +80% 5.5V T/H Cornell Dubilier Knowles	6,031	-	RFQ	데이터시트	EDS	Bulk	Active	100 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
FC0V224ZFTBR24 CAP 220MF -20% +80% 3.5V SMD KEMET	6,368	-	RFQ	데이터시트	FC	Tape & Reel (TR)	Active	220 mF	-20%, +80%	3.5 V	25Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.413" Dia (10.50mm)	0.217" (5.50mm)	-25°C ~ 70°C
FCS0V224ZFTBR24 CAP 220MF -20% +80% 3.5V SMD KEMET	1,177	-	RFQ	데이터시트	FC	Tape & Reel (TR)	Active	220 mF	-20%, +80%	3.5 V	50Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.421" Dia (10.70mm)	0.217" (5.50mm)	-25°C ~ 70°C
SCMR14C474PRBA0 CAP 470MF 0% +100% 5V T/H KYOCERA AVX	5,552	-	RFQ	데이터시트	SCM	Bulk	Active	470 mF	0%, +100%	5 V	300mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.630" (16.00mm)	-40°C ~ 65°C
FG0H474ZF CAP 470MF -20% +80% 5.5V T/H KEMET	253	-	RFQ	데이터시트	FG	Bulk	Active	470 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.571" Dia (14.50mm)	0.709" (18.00mm)	-25°C ~ 70°C
RSCH16845R5L09015T CAP 680MF -20% +80% 5.5V T/H Elna America	3,865	-	RFQ	데이터시트	DH	Bulk	Not For New Designs	680 mF	-20%, +80%	5.5 V	50Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
FCS0V474ZFTBR24 CAP 470MF -20% +80% 3.5V SMD KEMET	9,877	-	RFQ	데이터시트	FC	Tape & Reel (TR)	Active	470 mF	-20%, +80%	3.5 V	50Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.421" Dia (10.70mm)	0.335" (8.50mm)	-25°C ~ 70°C
SCMR14C474PSBA0H CAP 470MF 0% +100% 5V T/H KYOCERA AVX	867	-	RFQ	데이터시트	SCM, High Reliability	Bulk	Last Time Buy	470 mF	0%, +100%	5 V	300mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.728" L x 0.374" W (18.50mm x 9.50mm)	0.709" (18.00mm)	-40°C ~ 65°C

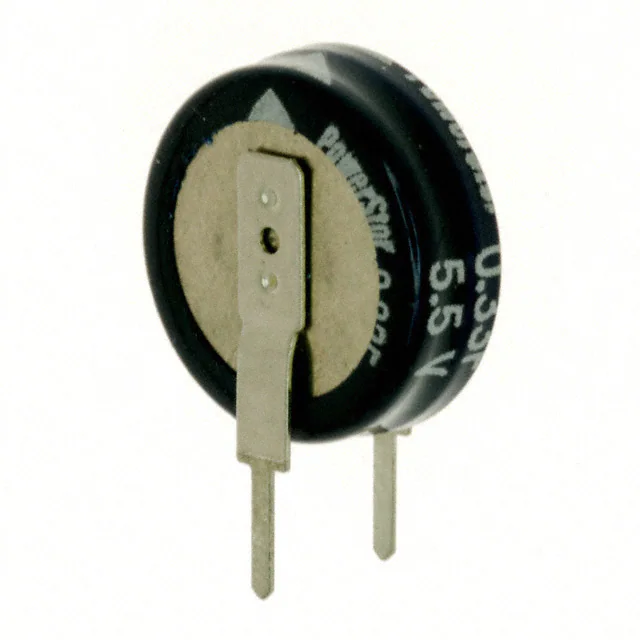

KR-5R5V334-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	1,525	-	RFQ	데이터시트	KR	Bulk	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.492" (12.50mm)	-25°C ~ 70°C
SCMS22D255PRBB0 CAP 2.5F 0% +100% 5.4V T/H KYOCERA AVX	3,103	-	RFQ	데이터시트	SCM	Bulk	Last Time Buy	2.5 F	0%, +100%	5.4 V	140mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.610" (15.50mm)	0.787" L x 0.394" W (20.00mm x 10.00mm)	0.945" (24.00mm)	-40°C ~ 65°C
SCMR18C105PRBA0 CAP 1F 0% +100% 5V T/H KYOCERA AVX	532	-	RFQ	데이터시트	SCM	Bulk	Last Time Buy	1 F	0%, +100%	5 V	200mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1 2 345 6 7...143 Next»
