전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
ADCN-T02R7SA367M CAP 360F 2.7V THROUGH HOLE Abracon LLC	-	RFQ	데이터시트	ADCN-T02R7S	Bulk	Active	360 F	±20%	2.7 V	5.4mOhm	-	PC Pins	Through Hole	Radial, Can	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.480" (63.00mm)	-40°C ~ 85°C
ADCN-S03R0SA367M CAP 360F 2.7V THROUGH HOLE Abracon LLC	-	RFQ	데이터시트	ADCN-S03R0	Bulk	Active	360 F	±20%	3 V	5.4mOhm	-	PC Pins	Through Hole	Radial, Can	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.480" (63.00mm)	-40°C ~ 65°C
ADCN-S03R0SA367Q CAP 360F 3V THROUGH HOLE Abracon LLC	-	RFQ	데이터시트	ADCN-S03R0	Bulk	Active	360 F	-10%, +30%	3 V	5.4mOhm	-	PC Pins	Through Hole	Radial, Can	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.480" (63.00mm)	-40°C ~ 65°C
JJC0E566MELB CAP 56F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Last Time Buy	56 F	±20%	2.5 V	70mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.181" Dia (30.00mm)	1.260" (32.00mm)	-25°C ~ 60°C
JJC0E686MELC CAP 68F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Last Time Buy	68 F	±20%	2.5 V	60mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.378" Dia (35.00mm)	1.260" (32.00mm)	-25°C ~ 60°C
PBLC-3R8/120MA2 CAP LITH HYBRID 120F 20% 3.8V Tecate Group	-	RFQ	데이터시트	PBLC™	Bulk	Active	120 F	±20%	3.8 V	-	1000 Hrs @ 70°C	Wire Leads	User Defined	Radial, Can	-	0.492" Dia (12.50mm)	0.984" (25.00mm)	-15°C ~ 70°C
JJC0E826MELA CAP 82F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Last Time Buy	82 F	±20%	2.5 V	60mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.984" Dia (25.00mm)	2.047" (52.00mm)	-25°C ~ 60°C
JJC0E336MELA CAP 33F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Obsolete	33 F	±20%	2.5 V	80mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.984" Dia (25.00mm)	1.260" (32.00mm)	-25°C ~ 60°C
MAL219690113E3 CAP 90F -20% +80% 2.8V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Bulk	Last Time Buy	90 F	-20%, +80%	2.8 V	30mOhm	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.984" (25.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.295" (7.50mm)	-20°C ~ 85°C
A1635-2R5475 CAP 4.7F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	데이터시트	A	Bulk	Obsolete	4.7 F	-20%, +80%	2.5 V	25mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.650" Dia (16.50mm)	1.496" (38.00mm)	-25°C ~ 70°C
MAL219691226E3 CAP 15F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	8.4 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.618" (15.70mm)	0.472" Dia x 0.591" L (12.00mm x 15.00mm)	0.472" (12.00mm)	-20°C ~ 85°C
JJC0E826MELB CAP 82F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Last Time Buy	82 F	±20%	2.5 V	60mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.181" Dia (30.00mm)	1.654" (42.00mm)	-25°C ~ 60°C
JJC0E276MELZ CAP 27F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Obsolete	27 F	±20%	2.5 V	90mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.260" (32.00mm)	-25°C ~ 60°C
B1840-2R5506-R CAP 50F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	데이터시트	B	Bulk	Obsolete	50 F	-20%, +80%	2.5 V	25mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.728" Dia (18.50mm)	1.654" (42.00mm)	-25°C ~ 70°C
MAL219691116E3 CAP 4F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	8.4 V	15Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.571" (14.50mm)	0.276" Dia x 0.591" L (7.00mm x 15.00mm)	0.276" (7.00mm)	-20°C ~ 70°C
JJC0E476MELZ CAP 47F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Obsolete	47 F	±20%	2.5 V	70mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.654" (42.00mm)	-25°C ~ 60°C
SCPB20A156SNA CAP 15F -10%, +30% 2.1V SMD KYOCERA AVX	-	RFQ	데이터시트	PrizmaCap™ SCP	Bulk	Active	15 F	-10%, +30%	2.1 V	30mOhm @ 1kHz	2000 Hrs @ 65°C	SMD (SMT) Tabs	Surface Mount	Nonstandard SMD	-	1.890" L x 1.772" W (48.00mm x 45.00mm)	0.079" (2.00mm)	-55°C ~ 65°C

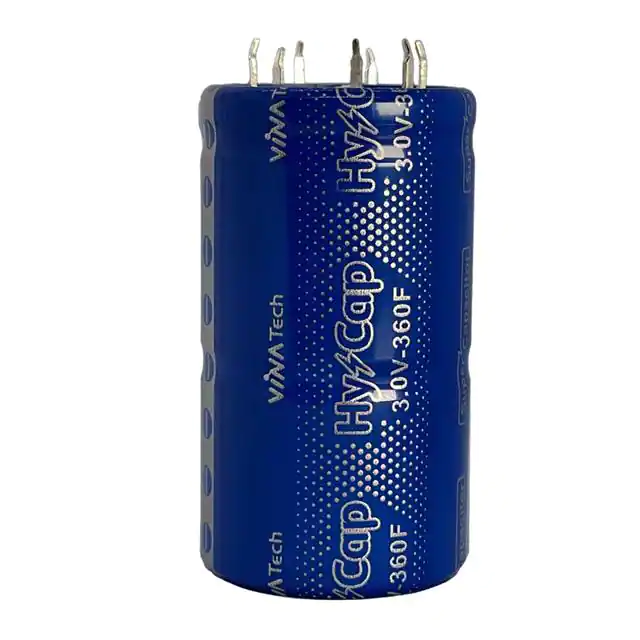

VEC3R0367QG 360F 3.0V 35*62 SNAPIN TYPE EDLC VINATech Co LTD	-	RFQ	데이터시트	-		Active	360 F	-10%, +30%	3 V	3mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.906" (23.00mm)	1.378" Dia (35.00mm)	2.520" (64.00mm)	-40°C ~ 65°C
AHCR-S04R0SA128Q CAP LITH HYBRID 1200F 4V T/H Abracon LLC	-	RFQ	데이터시트	AHCR-S04R0S	Tray	Active	1200 F	-10%, +30%	4 V	30mOhm	-	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.441" (62.00mm)	-25°C ~ 65°C
JJC0E476MELA CAP 47F 20% 2.5V T/H Nichicon	-	RFQ	데이터시트	EVerCAP® JC	Bulk	Obsolete	47 F	±20%	2.5 V	70mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.984" Dia (25.00mm)	1.457" (37.00mm)	-25°C ~ 60°C

Total 2853 Record«Prev 1... 101 102 103 104105106 107 108...143 Next»
