전류 감지 트랜스포머

전류 감지 트랜스포머는 전자 및 전기 시스템에서 전류를 감지, 모니터링 및 측정하는 데 사용되는 자기 부품입니다. 1차 전류 경로와 감지 회로 사이에 절연을 제공하여 전력 모니터링, 과부하 감지, 피드백 제어 및 보호 기능에 적합합니다. 주요 적용 분야는 전원 공급 장치, 모터 드라이브, 산업 제어 장비, 에너지 미터, 인버터, 배터리 시스템, 통신 장비 및 임베디드 애플리케이션입니다.

이 카테고리에는 전류 트랜스포머, 전류 감지 트랜스포머, AC 전류 감지 트랜스포머, PCB 전류 트랜스포머, 분할 코어 전류 트랜스포머 및 관련 자기 감지 부품이 포함됩니다. 이러한 제품은 전류 범위, 권선비, 주파수 범위, 절연 전압, 정확도, 부담 저항, 장착 방식, 패키지 스타일 및 애플리케이션 요구 사항을 기준으로 선택되는 경우가 많습니다.

TomatoElec은 Pulse Electronics, Bourns, Würth Elektronik, TDK, Murata, Triad Magnetics, Coilcraft, Hammond Manufacturing 등 주요 제조사의 정품 Current Sense Transformers를 공급합니다. 재고 기반 전자부품 공급업체이자 독립 유통업체로서 TomatoElec은 글로벌 고객을 위해 재고 지원, 정품 부품 소싱 및 BOM 소싱 서비스를 제공합니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	주파수 범위	유형	전류 정격(암페어)	인덕턴스	ET(볼트-시간)	권선비 - 1차:2차	전류 비율	DC 저항(DCR)	정격	장착 유형	크기/치수	높이 - 앉은 상태(최대)	종단 스타일

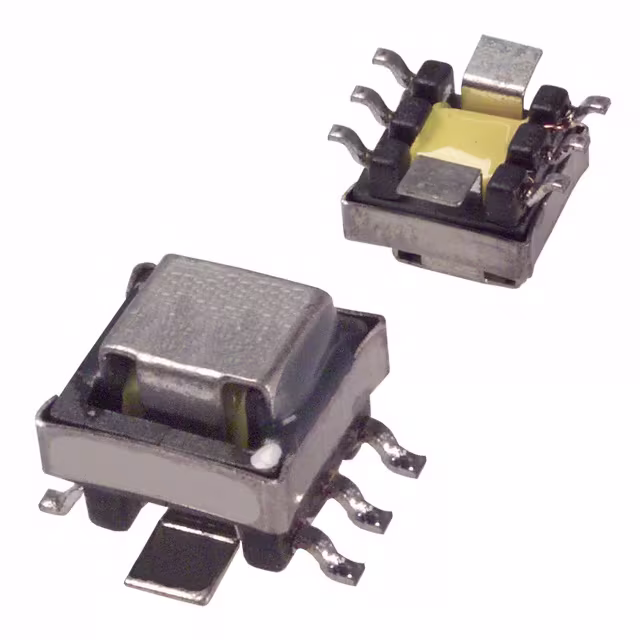

TCS-01 CURR SENSE XFMR 1:20 SMD Tamura	-	RFQ	데이터시트	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	80 µH	-	1:20	-	6mOhm Primary, 550mOhm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-02 CURR SENSE XFMR 1:30 SMD Tamura	-	RFQ	데이터시트	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	180 µH	-	1:30	-	6mOhm Primary, 870mOhm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-03 CURR SENSE XFMR 1:40 SMD Tamura	-	RFQ	데이터시트	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	320 µH	-	1:40	-	6mOhm Primary, 1.14Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-05 CURR SENSE XFMR 1:60 SMD Tamura	-	RFQ	데이터시트	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	720 µH	-	1:60	-	6mOhm Primary, 1.75Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-07 CURR SENSE XFMR 1:100 SMD Tamura	-	RFQ	데이터시트	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	2 mH	-	1:100	-	6mOhm Primary, 5.9Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-08 CURR SENSE XFMR 1:125 SMD Tamura	-	RFQ	데이터시트	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	3 mH	-	1:125	-	6mOhm Primary, 7.7Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
PA1005.060NL CURR SENSE XFMR 1:60 20A SMD Pulse Electronics	-	RFQ	데이터시트	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	720 µH	-	1:60	-	0.75mOhm Primary, 2.5Ohm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.040NL CURR SENSE XFMR 1:40 20A SMD Pulse Electronics	-	RFQ	데이터시트	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	320 µH	-	1:40	-	0.75mOhm Primary, 1.14Ohm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.030NL CURR SENSE XFMR 1:30 20A SMD Pulse Electronics	-	RFQ	데이터시트	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	180 µH	-	1:30	-	0.75mOhm Primary, 870mOhm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.020NL CURR SENSE XFMR 1:20 20A SMD Pulse Electronics	-	RFQ	데이터시트	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	80 µH	-	1:20	-	0.75mOhm Primary, 550mOhm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.040QNL CURR SENSE XFMR 1:40 20A SMD Pulse Electronics	-	RFQ	데이터시트	-	Tray	Active	50kHz ~ 1MHz	Invasive	20 A	320 µH	-	1:40	-	0.75mOhm Primary, 1.14Ohm Secondary	AEC-Q200	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing
CS-1100-R CURR SENSE XFMR 20A T/H Eaton - Electronics Division	-	RFQ	데이터시트	CS	Bulk	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	22.4 mH	-	-	100:1	1.3Ohm	-	Through Hole	0.675" L x 0.375" W (17.15mm x 9.53mm)	0.800" (20.32mm)	PC Pin
CS-1200-R CURR SENSE XFMR 40A T/H Eaton - Electronics Division	-	RFQ	데이터시트	CS	Bulk	Obsolete	20kHz ~ 100kHz	Non-Invasive (Solid Core)	40 A	89.7 mH	-	-	200:1	3.3Ohm	-	Through Hole	0.675" L x 0.375" W (17.15mm x 9.53mm)	0.800" (20.32mm)	PC Pin
CS-1050-R CURR SENSE XFMR 10A T/H Eaton - Electronics Division	-	RFQ	데이터시트	CS	Bulk	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	5.6 mH	-	-	50:1	600mOhm	-	Through Hole	0.675" L x 0.375" W (17.15mm x 9.53mm)	0.800" (20.32mm)	PC Pin
749252070 CURR SENSE XFMR 1:70 7A SMD Würth Elektronik	-	RFQ	데이터시트	WE-CST	Tape & Reel (TR)	Active	1MHz	Invasive	7 A	400 µH	31.5VµS	1:70	-	3mOhm Primary, 4.6Ohm Secondary	-	Surface Mount	0.185" L x 0.183" W (4.70mm x 4.65mm)	0.140" (3.55mm)	Gull Wing
AS-101 CURR SENSE XFMR 1:100 15A T/H Talema Group LLC	-	RFQ	데이터시트	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	25 mH	350VµS	1:100	-	1.1Ohm Secondary	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
55050C-R CURR SENSE XFMR 1:1:50 15A SMD Murata Power Solutions Inc.	-	RFQ	데이터시트	5500	Tape & Reel (TR)	Obsolete	50kHz ~ 500kHz	Invasive	15 A	3.8 mH	-	1:1:50	-	2.3mOhm Primary, 350mOhm Secondary	-	Surface Mount	0.575" L x 0.496" W (14.60mm x 12.60mm)	0.280" (7.10mm)	-
AS-102 CURR SENSE XFMR 1:200 15A T/H Talema Group LLC	-	RFQ	데이터시트	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	-	700VµS	1:200	-	4.5Ohm Secondary	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
B82801A0185A150 CURR SENSE XFMR 1:150 7A SMD EPCOS - TDK Electronics	-	RFQ	데이터시트	B82801A	Tape & Reel (TR)	Obsolete	50kHz ~ 1MHz	Invasive	7 A	1.84 mH	43.2VµS	1:150	-	2.5mOhm Primary, 21Ohm Secondary	-	Surface Mount	0.185" L x 0.138" W (4.70mm x 3.50mm)	0.138" (3.50mm)	J Lead
AS-103 CURR SENSE XFMR 1:300 15A T/H Talema Group LLC	-	RFQ	데이터시트	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	-	900VµS	1:300	-	10Ohm Secondary	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin

Total 2059 Record«Prev 1... 50 51 52 535455 56 57...103 Next»
