알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZS1J151PCAP ALUMHYB 150UF 20% 63V SMD |
791 | - |
|
데이터시트 |
ZS | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-SX0D471E4CAP ALUM POLY 470UF 20% 2V SMD |
108 | - |
|
데이터시트 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
63PZJ150M10X15CAP ALUM HYBRID 150UF 20% 63V TH |
953 | - |
|
데이터시트 |
PZJ | Bulk | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 3.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | Radial, Can |
|

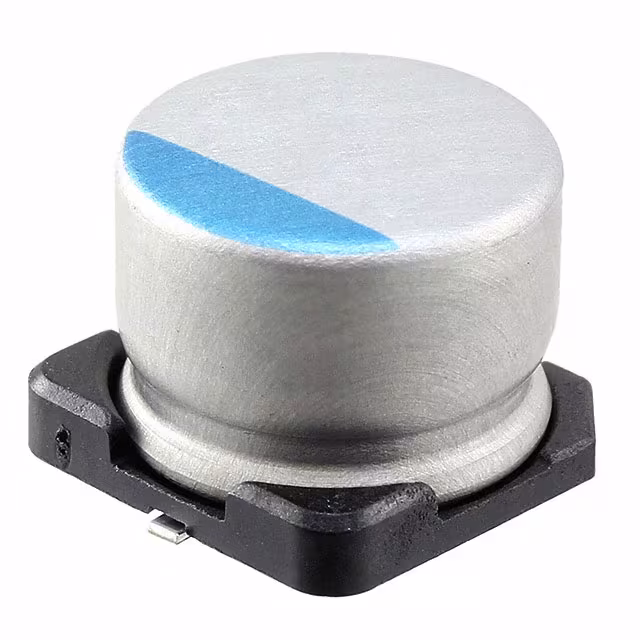

PCR1H820MCL1GSCAP ALUM POLY 82UF 20% 50V SMD |
6,546 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 34mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCV1H470MCL7GSCAP ALUM POLY 47UF 20% 50V SMD |
6,279 | - |
|
데이터시트 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
63SXV33MCAP ALUM POLY 33UF 20% 63V SMD |
2,956 | - |
|
데이터시트 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZA1J560PCAP ALUM HYBRID 56UF 20% 63V SMD |
3,470 | - |
|
데이터시트 |
ZA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZS1H221VCAP ALUMHYB 220UF 20% 50V SMD |
1,056 | - |
|
데이터시트 |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 555 mA @ 100 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
B40921A5567M000CAP ALUMHYB 560UF 20% 25V SMD |
226 | - |
|
데이터시트 |
B40921 | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCR1C471MCL6GSCAP ALUM POLY 470UF 20% 16V SMD |
8,701 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A700D157M006ATE010CAP ALUM POLY 150UF 20% 6.3V SMD |
3,226 | - |
|
데이터시트 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
PCR1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD |
3,194 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCR1H121MCL2GSCAP ALUM POLY 120UF 20% 50V SMD |
6,269 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-JZ0D561RBCAP ALUM POLY 560UF 20% 2V SMD |
1,750 | - |
|
데이터시트 |
SP-Cap JZ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 3mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.091" (2.30mm) | - | Surface Mount | 2917 (7343 Metric) |
|

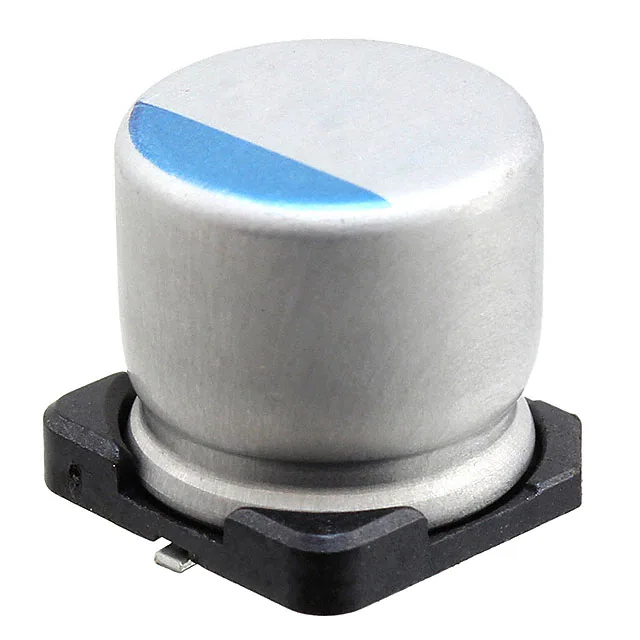

PCR1H121MCL1GSCAP ALUM POLY 120UF 20% 50V SMD |
7,985 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCV1J330MCL1GSCAP ALUM POLY 33UF 20% 63V SMD |
3,999 | - |
|
데이터시트 |
PCV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 31mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

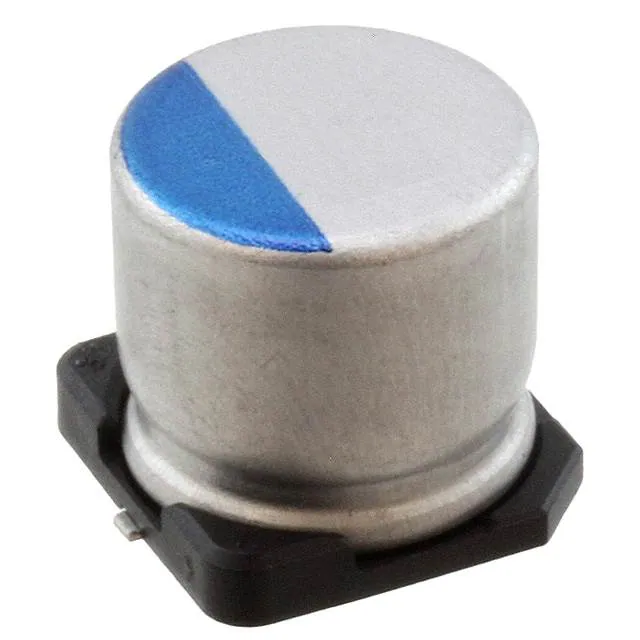

PCV1H470MCL2GSCAP ALUM POLY 47UF 20% 50V SMD |
500 | - |
|
데이터시트 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 37mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCV1E181MCL1GSCAP ALUM POLY 180UF 20% 25V SMD |
5,095 | - |
|
데이터시트 |
PCV | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZS1E102UVCAP ALUMHYB 1000UF 20% 25V SMD |
335 | - |
|
데이터시트 |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 1000 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCR1E331MCL1GSCAP ALUM POLY 330UF 20% 25V SMD |
3,364 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
