알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

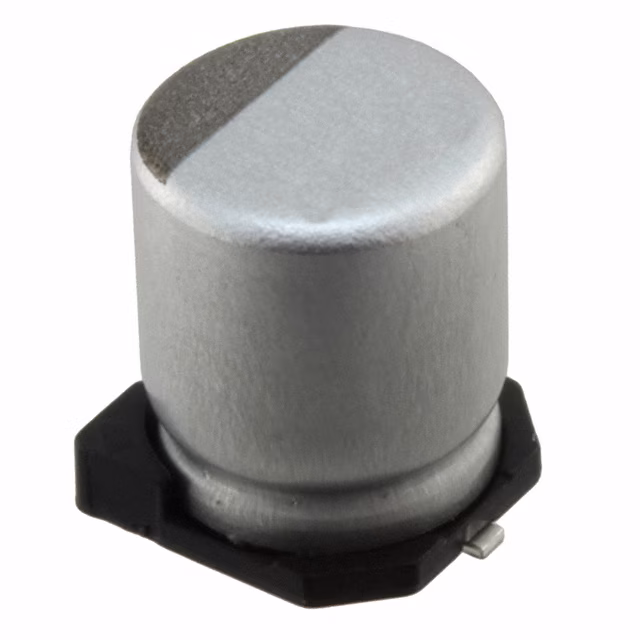

HHXA630ARA220MF80GCAP ALUM HYBRID 22UF 20% 63V SMD |
140 | - |
|
데이터시트 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
HT-Series.jpg)
|
RHT1D151MDN1CAP ALUM POLY 150UF 20% 20V TH |
5,800 | - |
|
데이터시트 |
FPCAP, RHT | Bulk | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 435 mA @ 120 Hz | 4.35 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole | Radial, Can |
|
875115655013CAP ALUM POLY 33UF 20% 35V SMD |
2,086 | - |
|
데이터시트 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
GYC1V680MCW1GSCAP ALUM HYBRID 68UF 20% 35V SMD |
1,773 | - |
|
데이터시트 |
GYC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 285 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
HHXE250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD |
1,350 | - |
|
데이터시트 |
HXE | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 377 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
RNU1C471MDN1PHCAP ALUM POLY 470UF 20% 16V TH |
678 | - |
|
데이터시트 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can |
|
APXE160ARA390ME61GCAP ALUM POLY 39UF 20% 16V SMD |
282 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.07 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
A755MS477M1CAAE013CAP ALUM POLY 470UF 20% 16V TH |
1,441 | - |
|
데이터시트 |
A755 | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
GYC1H680MCQ1GSCAP ALUM HYBRID 68UF 20% 50V SMD |
814 | - |
|
데이터시트 |
GYC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
HHXD250ARA331MJA0GCAP ALUMHYB 330UF 20% 25V SMD |
14,186 | - |
|
데이터시트 |
HXD | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 325 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCS0J391MCL1GSCAP ALUM POLY 390UF 20% 6.3V SMD |
1,720 | - |
|
데이터시트 |
PCS | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
-Photo-Taped-Size-G.jpg)
|
EEH-AZA1J560BCAP ALUM HYBRID 56UF 20% 63V TH |
1,481 | - |
|
데이터시트 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
|
EEH-AZA1J680BCAP ALUM HYBRID 68UF 20% 63V TH |
1,429 | - |
|
데이터시트 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 68 µF | ±20% | 63 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
16SEP150M+TCAP ALUM POLY 150UF 20% 16V TH |
650 | - |
|
데이터시트 |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 16 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
RNU1J330MDN1KXCAP ALUM POLY 33UF 20% 63V TH |
628 | - |
|
데이터시트 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 63 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
16SEPG270MCAP ALUM POLY 270UF 20% 16V TH |
505 | - |
|
데이터시트 |
OS-CON™, SEPG | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 290 mA @ 120 Hz | 5.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | - | Through Hole | Radial, Can |
|
A767KN336M1VLAE031CAP ALUM POLY 33UF 20% 35V SMD |
126 | - |
|
데이터시트 |
A767 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 35 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
35PEV68M6.3X8CAP ALUM HYBRID 68UF 20% 35V SMD |
1,635 | - |
|
데이터시트 |
PEV | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | - | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
PCF1C181MCL4GSCAP ALUM POLY 180UF 20% 16V SMD |
1,257 | - |
|
데이터시트 |
PCF | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
10SEP270M+TCAP ALUM POLY 270UF 20% 10V TH |
1,145 | - |
|
데이터시트 |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
