알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CX1D220RCAP ALUM POLY 22UF 20% 20V SMD |
6,495 | - |
|
데이터시트 |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 22 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|
20SEPF120M+TSSCAP ALUM POLY 120UF 20% 20V TH |
5,936 | - |
|
데이터시트 |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 120 µF | ±20% | 20 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | Radial, Can |
|
PLF1A101MDL4TDCAP ALUM POLY 100UF 20% 10V TH |
5,476 | - |
|
데이터시트 |
PLF | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
|
PLF1C101MDL4TDCAP ALUM POLY 100UF 20% 16V TH |
3,443 | - |
|
데이터시트 |
PLF | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
RL81C181MDN1KXCAP ALUM POLY 180UF 20% 16V TH |
3,329 | - |
|
데이터시트 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|

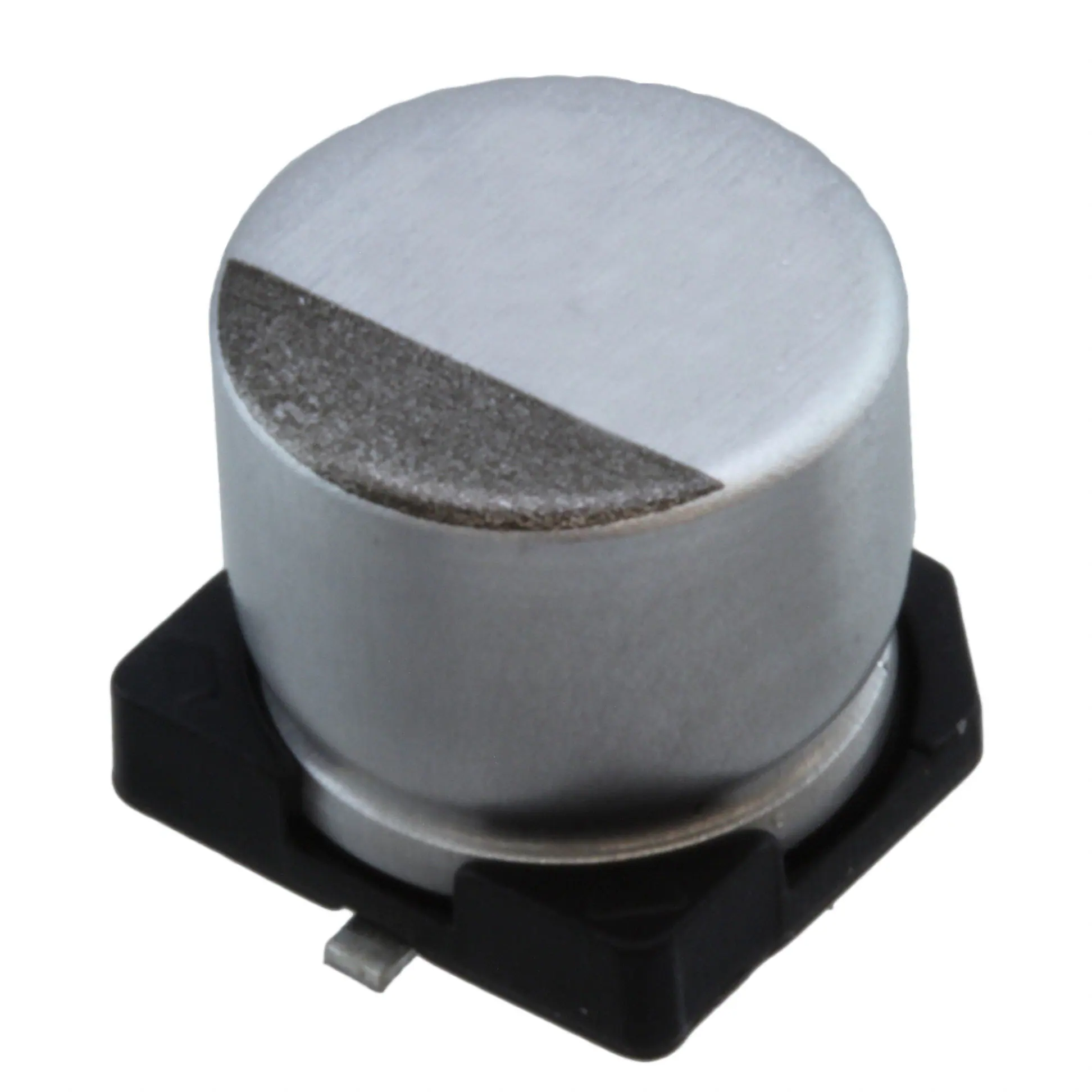

HHXB160ARA820MF61GCAP ALUM HYBRID 82UF 20% 16V SMD |
2,025 | - |
|
데이터시트 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 82 µF | ±20% | 16 V | 45mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
A768MS567M1ELAS017CAP ALUM POLY 560UF 20% 25V SMD |
1,815 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 25 V | 17mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

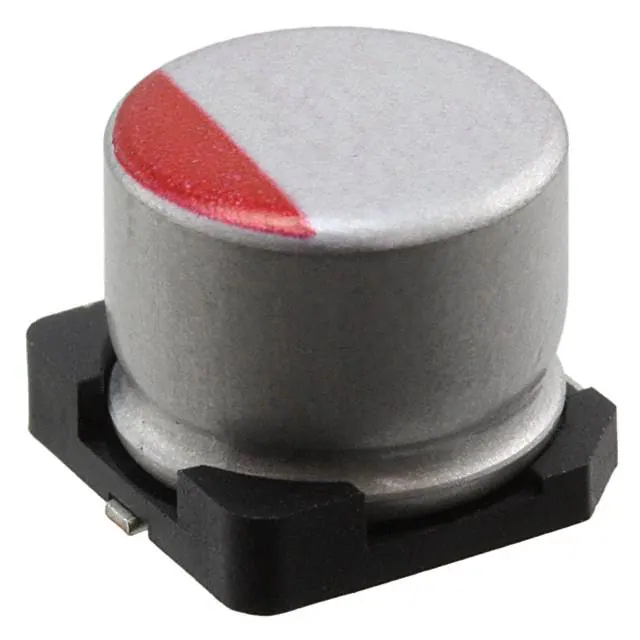

RPS1E220MCN1GSCAP ALUM POLY 22UF 20% 25V SMD |
945 | - |
|
데이터시트 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
RL80J102MDN1CAP ALUM POLY 1000UF 20% 6.3V TH |
317 | - |
|
데이터시트 |
FPCAP, RL8 | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
16SEP39MCAP ALUM POLY 39UF 20% 16V TH |
289 | - |
|
데이터시트 |
OS-CON™, SEP | Bulk | Active | Polymer | 39 µF | ±20% | 16 V | 50mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 81 mA @ 120 Hz | 1.62 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | Radial, Can |
|
PLF1C271MDO1TDCAP ALUM POLY 270UF 20% 16V TH |
3,954 | - |
|
데이터시트 |
PLF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | Radial, Can |
|
20SVF56MCAP ALUM POLY 56UF 20% 20V SMD |
2,568 | - |
|
데이터시트 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 44 mA @ 120 Hz | 880 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
HHXC630ARA470MHA0GCAP ALUM HYBRID 47UF 20% 63V SMD |
2,274 | - |
|
데이터시트 |
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
32SEPF22MCAP ALUM POLY 22UF 20% 32V TH |
184 | - |
|
데이터시트 |
OS-CON™, SEPF | Bulk | Active | Polymer | 22 µF | ±20% | 32 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | - | Through Hole | Radial, Can |
|
|
A768MS277M1VLAS022CAP ALUM POLY 270UF 20% 35V SMD |
3,786 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCF1C220MCL1GSCAP ALUM POLY 22UF 20% 16V SMD |
2,333 | - |
|
데이터시트 |
PCF | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.21 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
A750MV128M1CAAE012CAP ALUM POLY 1200UF 20% 16V TH |
2,185 | - |
|
데이터시트 |
A750 | Bulk | Active | Polymer | 1200 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | Radial, Can |
|
GYB1V680MCQ1GSCAP ALUM HYBRID 68UF 20% 35V SMD |
1,938 | - |
|
데이터시트 |
GYB | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
16SVPS22MCAP ALUM POLY 22UF 20% 16V SMD |
1,757 | - |
|
데이터시트 |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 90mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 53 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
GYA1V680MCQ1GSCAP ALUM HYBRID 68UF 20% 35V SMD |
1,600 | - |
|
데이터시트 |
GYA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
