알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-AZF1H101CAP ALUM HYBRID 100UF 20% 50V TH |
0 | - |
|
데이터시트 |
ZF | Bulk | Obsolete | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
EEH-AZF1J330CAP ALUM HYBRID 33UF 20% 63V TH |
0 | - |
|
데이터시트 |
ZF | Bulk | Obsolete | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 65 mA @ 100 Hz | 650 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
EEH-AZF1J560CAP ALUM HYBRID 56UF 20% 63V TH |
0 | - |
|
데이터시트 |
ZF | Bulk | Obsolete | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 126 mA @ 100 Hz | 840 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
ECASD90D567M4R5K00CAP ALUM POLY 560UF 20% 2V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

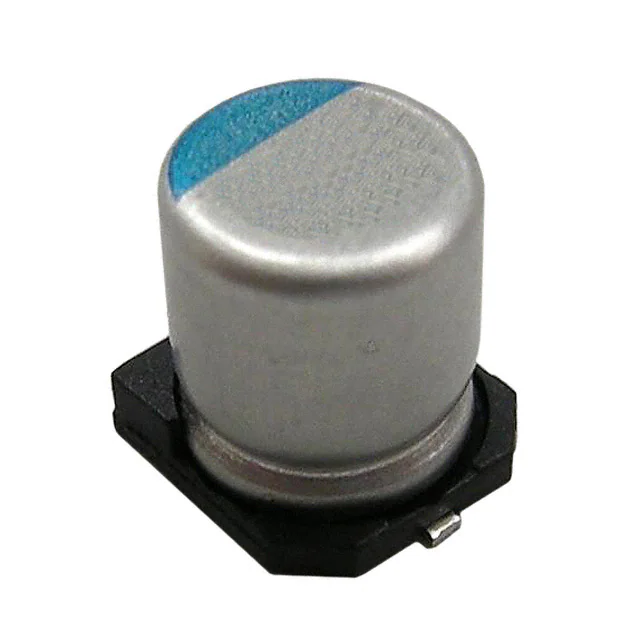

APXJ200ARA151MFA0GCAP ALUM POLY 150UF 20% 20V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXJ | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 150 µF | ±20% | 20 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
APSJ2R5ELL471ME08SCAP ALUM POLY 470UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
NPCAP™-PSJ | Bulk | Discontinued at Digi-Key | Polymer | 470 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 520 mA @ 120 Hz | 5.2 A @ 100 kHz | - | 0.079" (2.00mm) | 0.213" Dia (5.40mm) | 0.374" (9.50mm) | - | Through Hole | Radial, Can |
|
|
APSJ2R5ELL561MF08JCAP ALUM POLY 560UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
NPCAP™-PSJ | Bulk | Discontinued at Digi-Key | Polymer | 560 µF | ±20% | 2.5 V | 4mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 650 mA @ 120 Hz | 6.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole | Radial, Can |
|
|
APXJ250ARA820MFA0GCAP ALUM POLY 82UF 20% 25V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXJ | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 82 µF | ±20% | 25 V | 28mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
APSJ2R5ELL561MF08SCAP ALUM POLY 560UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
NPCAP™-PSJ | Bulk | Discontinued at Digi-Key | Polymer | 560 µF | ±20% | 2.5 V | 4.5mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 620 mA @ 120 Hz | 6.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole | Radial, Can |
|
ECASD40D277M009KA0CAP ALUM POLY |
0 | - |
|
데이터시트 |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OCV470M1CTR-0606SCAP ALUM POLY 47UF 20% 16V SMD |
0 | - |
|
데이터시트 |
OCV | Strip | Active | Polymer | 47 µF | ±20% | 16 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 82.5 mA @ 120 Hz | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
HBV221M1ETR-0810SCAP ALUM HYB 220UF 20% 25V SMD |
0 | - |
|
- |
HBV | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HBW221M1ETR-0810SCAP ALUM HYB 220UF 20% 25V SMD |
0 | - |
|
- |
HBW | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBW471M1CTR-1010SCAP ALUM HYB 470UF 20% 16V SMD |
0 | - |
|
- |
HBW | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBW331M1ETR-1010SCAP ALUM HYB 330UF 20% 25V SMD |
0 | - |
|
- |
HBW | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PHA225KLP4110QE1CAP ALUM HYB 1100UF 10-30% 40V |
0 | - |
|
데이터시트 |
PHA225 | Bulk | Discontinued at Digi-Key | Hybrid | 1100 µF | -10%, +30% | 40 V | 80mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | Axial, Can |
|
|
PHA225MLP3560QE1CAP ALUM HYB 560UF 10-30% 63V TH |
0 | - |
|
데이터시트 |
PHA225 | Bulk | Discontinued at Digi-Key | Hybrid | 560 µF | -10%, +30% | 63 V | 92mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | Axial, Can |
|
|
ECASD41D476M040KH0CAP ALUM POLY 47UF 20% 20V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 20 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ECASD31E106M040KH0CAP ALUM POLY 10UF 20% 25V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ECASD41E106M040KH0CAP ALUM POLY 10UF 20% 25V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
