알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHH223HMP4680ME4CAP ALU HYBRID RADIAL 125C 25V 6 |
0 | - |
|
데이터시트 |
PHH223 | Tray | Active | Hybrid | 6.8 mF | ±20% | 25 V | 44mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.86 A @ 100 Hz | 49.3 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.445" (36.70mm) | - | Through Hole | Radial, Can - Solder Lug |
|
|
PHA223MML4100ME4CAP ALU HYBRID AXIAL 125C 63V 10 |
0 | - |
|
데이터시트 |
PHA223 | Tray | Active | Hybrid | 1000 µF | ±20% | 63 V | 65mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.36 A @ 100 Hz | 46.8 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
PHA223JMS4540ME4CAP ALU HYBRID AXIAL 125C 35V 54 |
0 | - |
|
데이터시트 |
PHA223 | Tray | Active | Hybrid | 5.4 mF | ±20% | 35 V | 43mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 10 A @ 100 Hz | 50 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
94SVP107X0016F8CAP ALUM POLY 100UF 20% 16V SMD |
0 | - |
|
데이터시트 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 100 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

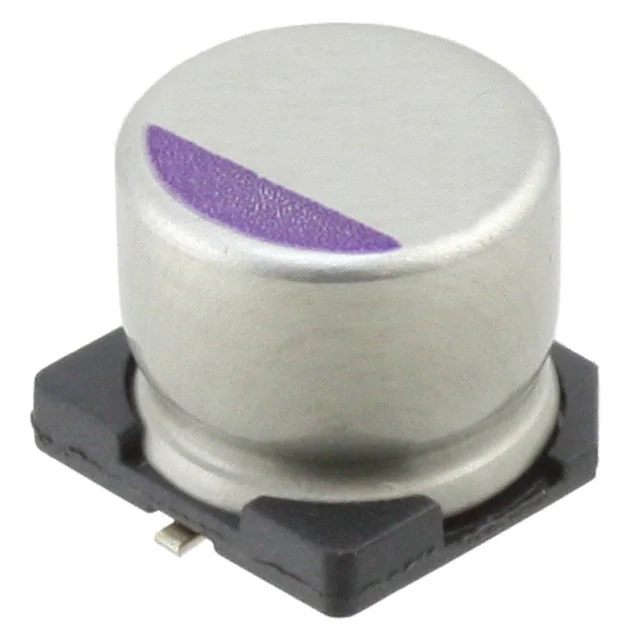

94SVPD106X0025C6CAP ALUM POLY 10UF 20% 25V SMD |
0 | - |
|
데이터시트 |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 10 µF | ±20% | 25 V | 65mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 23.7 mA @ 120 Hz | 474 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
PHA227MMS4190ME4CAP ALU HYBRID AXIAL 125C 63V 19 |
0 | - |
|
데이터시트 |
PHA227 | Tray | Active | Hybrid | 1.9 mF | ±20% | 63 V | 45mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.92 A @ 100 Hz | 44.6 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
PHA227HMS4870ME4CAP ALU HYBRID AXIAL 125C 25V 87 |
0 | - |
|
데이터시트 |
PHA227 | Tray | Active | Hybrid | 8.7 mF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.12 A @ 100 Hz | 45.6 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
94SVPD226X0035E12CAP ALUM POLY 22UF 20% 35V SMD |
0 | - |
|
데이터시트 |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 22 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 35 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PHA223HMS4870ME4CAP ALU HYBRID AXIAL 125C 25V 87 |
0 | - |
|
데이터시트 |
PHA223 | Tray | Active | Hybrid | 8.7 mF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 10 A @ 100 Hz | 50 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
94SVP337X0016F12CAP ALUM POLY 330UF 20% 16V SMD |
0 | - |
|
데이터시트 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 330 µF | ±20% | 16 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.58 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

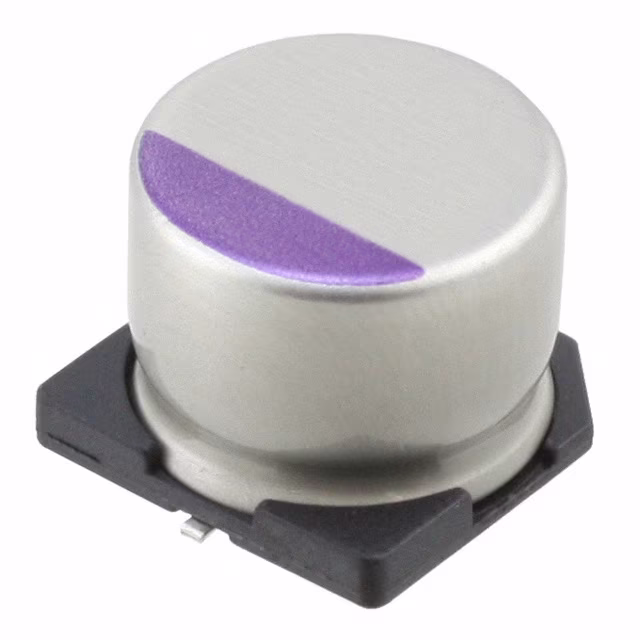

94SVPD186X0035F8CAP ALUM POLY 18UF 20% 35V SMD |
0 | - |
|
데이터시트 |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 18 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 27.5 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
94SVPD825X0035E7CAP ALUM POLY 8.2UF 20% 35V SMD |
0 | - |
|
데이터시트 |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 8.2 µF | ±20% | 35 V | 70mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 20 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
94SVP157X0020F12CAP ALUM POLY 150UF 20% 20V SMD |
0 | - |
|
데이터시트 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 150 µF | ±20% | 20 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.22 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PHA227MMP4150ME4CAP ALU HYBRID AXIAL 125C 63V 15 |
0 | - |
|
데이터시트 |
PHA227 | Tray | Active | Hybrid | 1.5 mF | ±20% | 63 V | 55mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.62 A @ 100 Hz | 43.1 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
PHA223MMP4150ME4CAP ALU HYBRID AXIAL 125C 63V 15 |
0 | - |
|
데이터시트 |
PHA223 | Tray | Active | Hybrid | 1.5 mF | ±20% | 63 V | 55mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.6 A @ 100 Hz | 48 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
94SVPD826X0025F12CAP ALUM POLY 82UF 20% 25V SMD |
0 | - |
|
데이터시트 |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 82 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 60.1 mA @ 120 Hz | 1.202 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PHH227MMP4150ME4CAP ALU HYBRID RADIAL 125C 63V 1 |
0 | - |
|
데이터시트 |
PHH227 | Tray | Active | Hybrid | 1.5 mF | ±20% | 63 V | 55mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.62 A @ 100 Hz | 43.1 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.445" (36.70mm) | - | Through Hole | Radial, Can - Solder Lug |
|
|
PHH223MMP4150ME4CAP ALU HYBRID RADIAL 125C 63V 1 |
0 | - |
|
데이터시트 |
PHH223 | Tray | Active | Hybrid | 1.5 mF | ±20% | 63 V | 55mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.6 A @ 100 Hz | 48 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.445" (36.70mm) | - | Through Hole | Radial, Can - Solder Lug |
|
|
PHA223MMS4190ME4CAP ALU HYBRID AXIAL 125C 63V 19 |
0 | - |
|
데이터시트 |
PHA223 | Tray | Active | Hybrid | 1.9 mF | ±20% | 63 V | 45mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.86 A @ 100 Hz | 49.3 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole | Axial, Can |
|
|
94SVPD476X0035F12CAP ALUM POLY 47UF 20% 35V SMD |
0 | - |
|
데이터시트 |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 47 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 57.5 mA @ 120 Hz | 1.15 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
