알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESRE331M02BCAP ALUM POLY 330UF 20% 2V SMD |
0 | - |
|
데이터시트 |
ESRE | Bulk | Obsolete | Polymer | 330 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
A700X227M2R5ATE0102478CAP ALUM POLY 220UF 20% 2.5V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
A700X187M004ATE0102478CAP ALUM POLY 180UF 20% 4V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ECASD41A107M040KH0CAP ALUM POLY 100UF 20% 10V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 10 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
VSG1C271MCB8067CAP ALUM POLY 270UF 20% 16V SMD |
0 | - |
|
데이터시트 |
VSG | Active | Polymer | 270 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3300 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD | |
|
2SXE150MCAP ALUM POLY 150UF 20% 2V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
6SXE68MCAP ALUM POLY 68UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ECASD40D337M006KA0CAP ALUM POLY 330UF 20% 2V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEF-SE0E331ERCAP ALUM POLY 330UF 20% 2.5V SMD |
0 | - |
|
- |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEF-SX0E391RCAP ALUM POLY 390UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 390 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | 2917 (7343 Metric) |
|

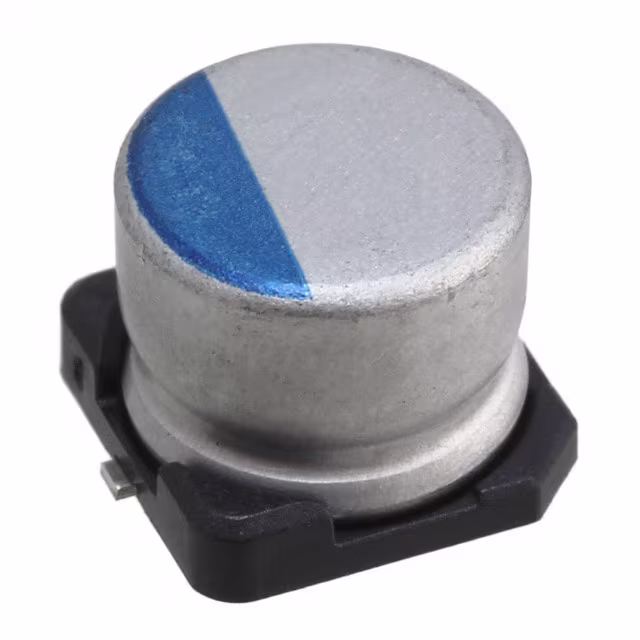

PCX1V180MCS1GSCAP ALUM POLY 18UF 20% 35V SMD |
0 | - |
|
데이터시트 |
PCX | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 35 V | 60mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
MAL218697107E3CAP ALUM POLY 47UF 20% 50V SMD |
0 | - |
|
- |
186 CPNT | Box | Active | Polymer | 47 µF | ±20% | 50 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|
UPC1C681MNN0811F3CAP ALUM POLY 680UF 20% 16V TH |
0 | - |
|
데이터시트 |
UPC | Active | Polymer | 680 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | Radial, Can | |
|
|
2.5SXE150MCAP ALUM POLY 150UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

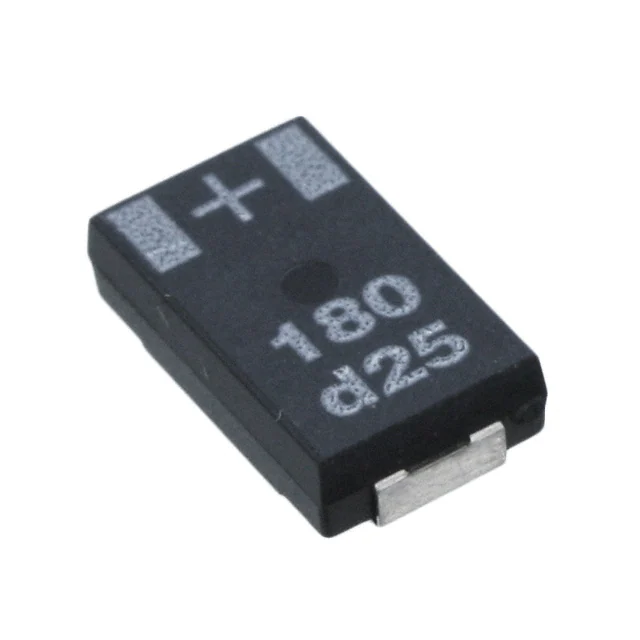

2SXE180MCAP ALUM POLY 180UF 20% 2V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ECASD31E156M040KH0CAP ALUM POLY 15UF 20% 25V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
2.5SXB150MCAP ALUM POLY 150UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
PCH1H181MCL1GSCAP ALUM POLY 180UF 20% 50V SMD |
0 | - |
|
데이터시트 |
PCH | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 50 V | 19mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-SX0D391RCAP ALUM POLY 390UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 390 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | 2917 (7343 Metric) |
|
ECASD40J336M025K00CAP ALUM POLY 33UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 6.3 V | 25mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
