알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPSX471M02R-4CAP ALUM POLY 470UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | 2917 (7343 Metric) |
|
APXE100ARA681MJA0GCAP ALUM POLY 680UF 20% 10V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.82 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A700V685M016ATE070CAP ALUM POLY 6.8UF 20% 16V SMD |
0 | - |
|
데이터시트 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 16 V | 70mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
A700V106M016ATE060CAP ALUM POLY 10UF 20% 16V SMD |
0 | - |
|
데이터시트 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 16 V | 60mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
127ALG050MGBJCAP ALUM POLY 120UF 20% 50V TH |
0 | - |
|
데이터시트 |
ALG | Bulk | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole | Radial, Can |
|
|
A798V227M006PTE015CAP ALUM POLY 220UF 6.3V SMD |
0 | - |
|
데이터시트 |
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.23 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218497313E3CAP ALUM POLY 820UF 20% 6.3V SMD |
0 | - |
|
- |
184 CPNS | Box | Active | Polymer | 820 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|
2R5SEP1500M+TCAP ALUM POLY 1500UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
OS-CON™, SEP | Tape & Box (TB) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 272 mA @ 120 Hz | 5.44 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
875105644004CAP ALUM POLY 18UF 20% 35V SMD |
0 | - |
|
데이터시트 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 35 V | 64mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 45 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
ESRD680M06XBCAP ALUM POLY 68UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
ESRD | Bulk | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
PCL1C391MCL1GSCAP ALUM POLY 390UF 20% 16V SMD |
0 | - |
|
데이터시트 |
PCL | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 195 mA @ 120 Hz | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.476" (12.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
RNL1C152MDS1CAP ALUM POLY 1500UF 20% 16V TH |
0 | - |
|
데이터시트 |
FPCAP, RNL | Bulk | Active | Polymer | 1500 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | Radial, Can |
|
MAL218697305E3CAP ALUM POLY 1000UF 20% 6.3V |
0 | - |
|
- |
186 CPNT | Box | Active | Polymer | 1000 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 220 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
UPE0E561MCG6305CAP ALUM POLY 560UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
UPE | Active | Polymer | 560 µF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | Radial, Can | |
|
PLS0G271MCO8CAP ALUM POLY 270UF 20% 4V TH |
20 | - |
|
데이터시트 |
PLS | Bulk | Active | Polymer | 270 µF | ±20% | 4 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|

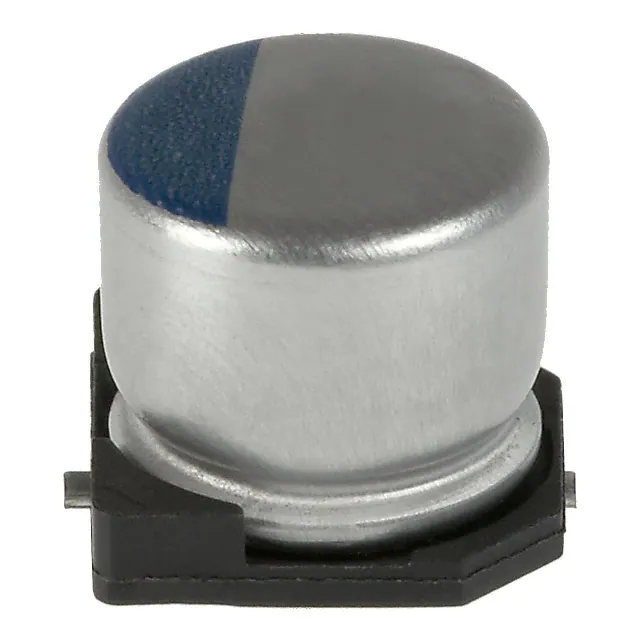

APXC100ARA820MF60GCAP ALUM POLY 82UF 20% 10V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 10 V | 23mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
EEF-SD0D331ERCAP ALUM POLY 330UF 20% 2V SMD |
0 | - |
|
- |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-SD0E271ERCAP ALUM POLY 270UF 20% 2.5V SMD |
0 | - |
|
- |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-SD0G151ERCAP ALUM POLY 150UF 20% 4V SMD |
0 | - |
|
- |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
APXS160ARA820MH70GCAP ALUM POLY 82UF 20% 16V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
