알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS80E331MDNASQJTCAP ALUM POLY 330UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|

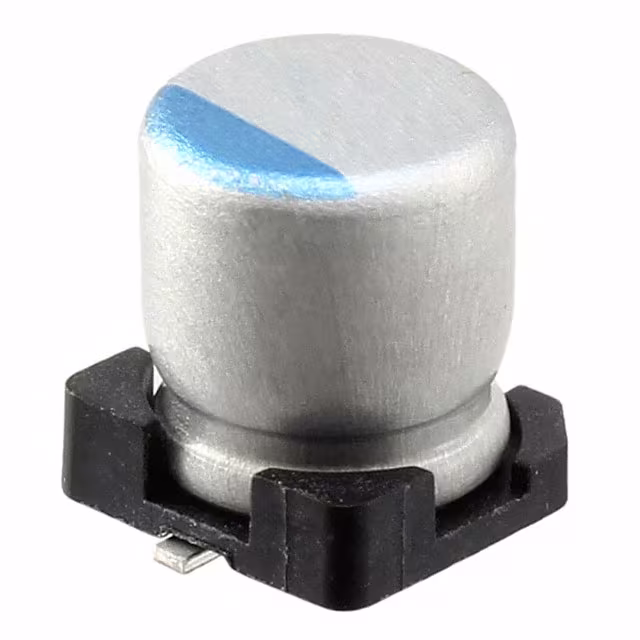

PCR1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD |
0 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 10 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 800 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
PLF0E561MCO8TDCAP ALUM POLY 560UF 20% 2.5V TH |
0 | - |
|
데이터시트 |
PLF | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
2.5SW220M2.9X7.3CAP ALUM POLY 220UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|
|
2SW270M2.9X7.3CAP ALUM POLY 270UF 20% 2V SMD |
0 | - |
|
데이터시트 |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|
PLS1A471MDO1CAP ALUM POLY 470UF 20% 10V TH |
0 | - |
|
데이터시트 |
PLS | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
AHA1012561M016RCAP ALUMHYB 560UF 20% 16V SMD |
0 | - |
|
데이터시트 |
AHA | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 16 V | 15mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 100 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
8SW68M2.7X7.3CAP ALUM POLY 68UF 20% 8V SMD |
0 | - |
|
데이터시트 |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 8 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | - | Surface Mount | 2917 (7343 Metric) |
|
|
2.5SWZ270M1.9X7.3CAP ALUM POLY 270UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
PC-CON, SWZ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|
MAL218497416E3CAP ALUM POLY 680UF 20% 10V SMD |
0 | - |
|
- |
184 CPNS | Box | Active | Polymer | 680 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218497607E3CAP ALUM POLY 100UF 20% 25V SMD |
0 | - |
|
- |
184 CPNS | Box | Active | Polymer | 100 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210.5 mA @ 120 Hz | 4.21 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
MAL218697304E3CAP ALUM POLY 820UF 20% 6.3V SMD |
0 | - |
|
- |
186 CPNT | Box | Active | Polymer | 820 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
MAL218597004E3CAP ALUM POLY 56UF 20% 35V SMD |
0 | - |
|
- |
185 CPNZ | Box | Active | Polymer | 56 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
APXH2R5ARA102MJ80GCAP ALUM POLY 1000UF 20% 2.5V |
0 | - |
|
데이터시트 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A700V226M12RATE028CAP ALUM POLY 22UF 20% 12.5V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 12.5 V | 28mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
APZ1012471M035RCAP ALUM POLY 470UF 20% 35V SMD |
0 | - |
|
데이터시트 |
APZ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
157AVG035MFBJCAP ALUM POLY 150UF 20% 35V TH |
0 | - |
|
데이터시트 |
AVG | Bulk | Active | Polymer | 150 µF | ±20% | 35 V | 26mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole | Radial, Can |
|
|
APZ1012101M063RCAP ALUM POLY 100UF 20% 63V SMD |
0 | - |
|
데이터시트 |
APZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCL1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD |
0 | - |
|
데이터시트 |
PCL | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APXH4R0ARA681MJ80GCAP ALUM POLY 680UF 20% 4V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
