알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPA151M02BCAP ALUM POLY 150UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SPA | Bulk | Obsolete | Polymer | 150 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
APV1012471M025RCAP ALUM POLY 470UF 20% 25V SMD |
0 | - |
|
데이터시트 |
APV | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 25 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
APXA2R5ARA102MJ80GCAP ALUM POLY 1000UF 20% 2.5V |
0 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 19mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.24 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APXA4R0ARA471MJ80GCAP ALUM POLY 470UF 20% 4V SMD |
0 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
RSHTK221M1TEH0002ECAP ALUMHYB 220UF 20% 25V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RSHTK331M1LEH0002ECAP ALUMHYB 330UF 20% 10V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 10 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RAHTK330M4EEH0002ECAP ALUM HYBRID 33UF 20% 63V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RSHTK271M1EEH0002ECAP ALUMHYB 270UF 20% 16V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 16 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RSHTK561M1JEH0002ECAP ALUMHYB 560UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 6.3 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RAHTK561M1JEH0002ECAP ALUMHYB 560UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 6.3 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RAHTK151M1GEH0002BCAP ALUMHYB 150UF 20% 35V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RAHTK271M1EEH0002ECAP ALUMHYB 270UF 20% 16V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 16 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RAHTK331M1LEH0002ECAP ALUMHYB 330UF 20% 10V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 10 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RSHTK680M1UEH0002ECAP ALUM HYBRID 68UF 20% 50V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 125 mA @ 120 Hz | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
RSHTK151M1GEH0002ECAP ALUMHYB 150UF 20% 35V SMD |
0 | - |
|
데이터시트 |
HTK | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
RFS0G151MCN1GSCAP ALUM POLY 150UF 20% 4V SMD |
0 | - |
|
데이터시트 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 261 mA @ 120 Hz | 2.61 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|

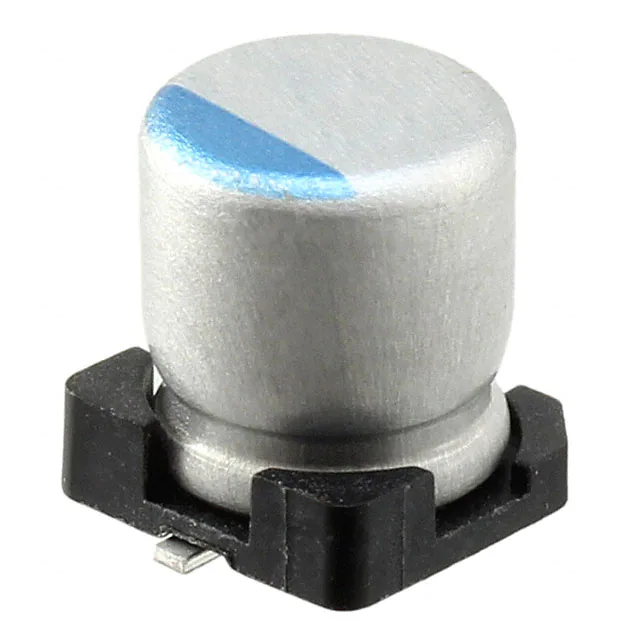

PCR1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD |
0 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 25 V | 75mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
ECASD40G107M016K00CAP ALUM POLY 100UF 20% 4V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 16mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
VGYC0771E221MVCGCAP ALUMHYB 220UF 20% 25V SMD |
0 | - |
|
- |
VGY | Active | Hybrid | 220 µF | ±20% | 25 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | 30 mOhms | - | 0.248" Dia (6.30mm) | 0.323" (8.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | |
|
|
RCHV1471M1EFH0002XCAP ALUMHYB 470UF 20% 16V SMD |
0 | - |
|
데이터시트 |
HV1 | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 16 V | 18mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | Radial, Can - SMD |
