알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNE1C821MDN1CAP ALUM POLY 820UF 20% 16V TH |
0 | - |
|
데이터시트 |
FPCAP, RNE | Bulk | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can |
|
20SEPF390M+TSSCAP ALUM POLY 390UF 20% 20V TH |
0 | - |
|
데이터시트 |
OS-CON™, SEPF | Tape & Box (TB) | Active | Polymer | 390 µF | ±20% | 20 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | Radial, Can |
|
A700V476M010ATE018CAP ALUM POLY 47UF 20% 10V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
PCL1A151MCL1GSCAP ALUM POLY 150UF 20% 10V SMD |
0 | - |
|
데이터시트 |
PCL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 144 mA @ 120 Hz | 2.88 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.291" (7.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
MAL218497606E3CAP ALUM POLY 47UF 20% 25V SMD |
0 | - |
|
- |
184 CPNS | Box | Active | Polymer | 47 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210.5 mA @ 120 Hz | 4.21 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|

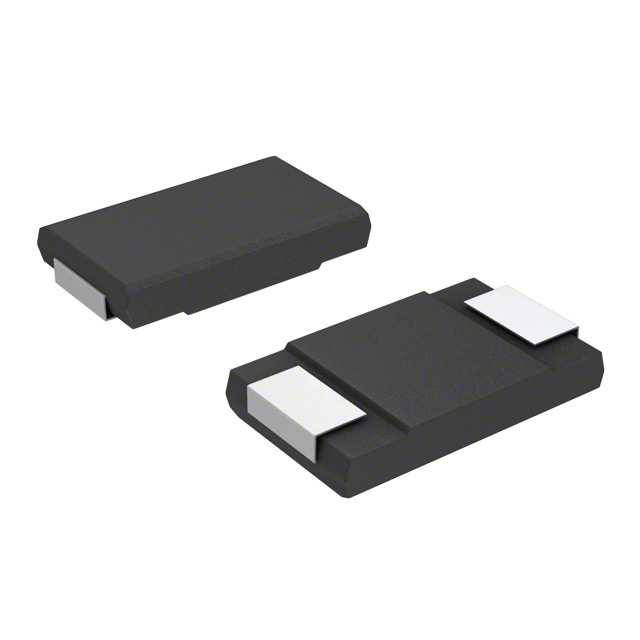

ESRL150M12RCAP ALUM POLY 15UF 20% 12.5V SMD |
0 | - |
|
데이터시트 |
ESRL | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 12.5 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ESRL470M04RCAP ALUM POLY 47UF 20% 4V SMD |
0 | - |
|
데이터시트 |
ESRL | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 4 V | 35mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ESRL680M02RCAP ALUM POLY 68UF 20% 2V SMD |
0 | - |
|
데이터시트 |
ESRL | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 2 V | 35mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
SPCX121M06RCAP ALUM POLY 120UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
SPCX221M04RCAP ALUM POLY 220UF 20% 4V SMD |
0 | - |
|
데이터시트 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
SPCX391M02RCAP ALUM POLY 390UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
SPCX391M0ERCAP ALUM POLY 390UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
SPCX471M02RCAP ALUM POLY 470UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
UPS0J471MCG0808CAP ALUM POLY 470UF 20% 6.3V TH |
0 | - |
|
데이터시트 |
UPS | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can | |
|
875105142003CAP ALUM POLY 68UF 20% 6.3V SMD |
0 | - |
|
데이터시트 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
UGS1E681MP20816UXCAP ALUM POLY 680UF 20% 25V TH |
0 | - |
|
데이터시트 |
UGS | Active | Polymer | 680 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | Radial, Can | |
|
|
UGS1C102MP30816RUCAP ALUM POLY 1000UF 20% 16V TH |
0 | - |
|
데이터시트 |
UGS | Active | Polymer | 1000 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | Radial, Can | |
|
|
UPE1E681MP51012RCAP ALUM POLY 680UF 20% 25V TH |
0 | - |
|
데이터시트 |
UPE | Active | Polymer | 680 µF | ±20% | 25 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | Radial, Can | |
|
|
UGS1C182MP51020UCAP ALUM POLY 1800UF 20% 16V TH |
0 | - |
|
데이터시트 |
UGS | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | Radial, Can | |
|
107ALG035MFBJCAP ALUM POLY 100UF 20% 35V TH |
0 | - |
|
데이터시트 |
ALG | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 23mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole | Radial, Can |
