알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNS1E470MDN1PHCAP ALUM POLY 47UF 20% 25V TH |
29 | - |
|
데이터시트 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can |
|
PCV1K100MCL1GSCAP ALUM POLY 10UF 20% 80V SMD |
99 | - |
|
데이터시트 |
PCV | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 80 V | 43mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
63SXE68MCAP ALUM POLY 68UF 20% 63V TH |
50 | - |
|
데이터시트 |
OS-CON™, SXE | Bulk | Active | Polymer | 68 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 51.5 mA @ 120 Hz | 1.03 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|

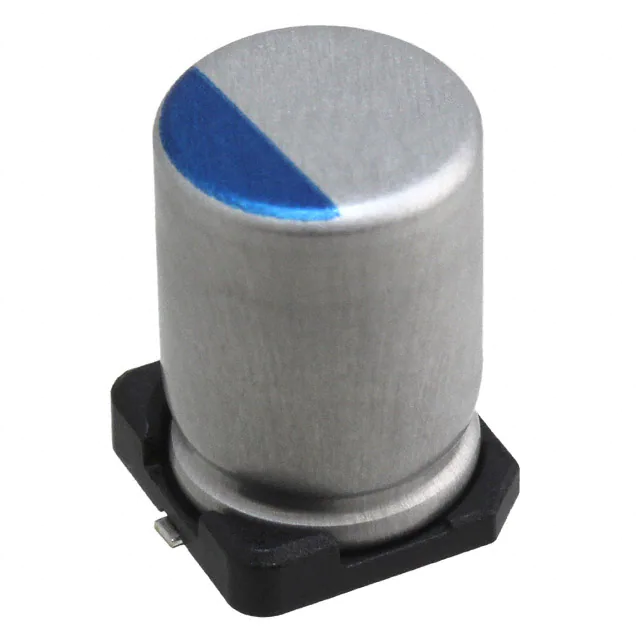

PCV2B8R2MCL1GSCAP ALUM POLY 8.2UF 20% 125V SMD |
77 | - |
|
데이터시트 |
PCV | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 125 V | 84mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.476" (12.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
PLV2A6R8MCL1CAP ALUM POLY 6.8UF 20% 100V TH |
96 | - |
|
데이터시트 |
PLV | Bulk | Not For New Designs | Polymer | 6.8 µF | ±20% | 100 V | 45mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
RPF0507271M006KCAP ALUM POLY 270UF 20% 6.3V TH |
1,000 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
|
RPF0507221M006KCAP ALUM POLY 220UF 20% 6.3V TH |
940 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
APA0606101M006RCAP ALUM POLY 100UF 20% 6.3V SMD |
996 | - |
|
데이터시트 |
APA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
875105242007CAP ALUM POLY 56UF 20% 10V SMD |
953 | - |
|
데이터시트 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APA0606101M010RCAP ALUM POLY 100UF 20% 10V SMD |
810 | - |
|
데이터시트 |
APA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
875105242009CAP ALUM POLY 82UF 20% 10V SMD |
490 | - |
|
데이터시트 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
RPF0508331M006KCAP ALUM POLY 330UF 20% 6.3V TH |
1,000 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
A765EB397M0GLAE014CAP ALUM POLY 390UF 20% 4V SMD |
884 | - |
|
데이터시트 |
A765 | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RPF0608331M006KCAP ALUM POLY 330UF 20% 6.3V TH |
790 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
APXE2R5ARA391MF61GCAP ALUM POLY 390UF 20% 2.5V SMD |
1,999 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RPF0509391M006KCAP ALUM POLY 390UF 20% 6.3V TH |
1,000 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.394" (10.00mm) | - | Through Hole | Radial, Can |
|
|
RPF0509221M010KCAP ALUM POLY 220UF 20% 10V TH |
900 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 10 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.394" (10.00mm) | - | Through Hole | Radial, Can |
|
APXE4R0ARA101ME61GCAP ALUM POLY 100UF 20% 4V SMD |
1,959 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.61 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APXA160ARA220ME61GCAP ALUM POLY 22UF 20% 16V SMD |
1,417 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 60.5 mA @ 120 Hz | 1.21 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APA0609471M006RCAP ALUM POLY 470UF 20% 6.3V SMD |
356 | - |
|
데이터시트 |
APA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
