알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPF1014101M080KCAP ALUM POLY 100UF 20% 80V TH |
557 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 80 V | 38mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.591" (15.00mm) | - | Through Hole | Radial, Can |
|
APSC6R3ETD152MJB5SCAP ALUM POLY 1500UF 20% 6.3V TH |
344 | - |
|
데이터시트 |
NPCAP™-PSC | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.56 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
35PKV390M10X10.5CAP ALUMHYB 390UF 20% 35V SMD |
1,397 | - |
|
데이터시트 |
PKV | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
HHXF630GRA151MJH0GCAP ALUMHYB 150UF 20% 63V SMD |
200 | - |
|
데이터시트 |
HXF | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 13mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 530 mA @ 120 Hz | 5.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-TX0E221RECAP ALUM POLY 220UF 20% 2.5V SMD |
3,500 | - |
|
데이터시트 |
SP-Cap TX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 5500 Hrs @ 135°C | -55°C ~ 135°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
RHA1011221M035KCAP ALUM HYBRID 220UF 20% 35V TH |
533 | - |
|
데이터시트 |
RHA | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 35 V | 17mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
RPF1017271M063KCAP ALUM POLY 270UF 20% 63V TH |
458 | - |
|
데이터시트 |
RPF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 63 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | Radial, Can |
|
|
PCM1E101MCL1GSCAP ALUM POLY 100UF 20% 25V SMD |
1,970 | - |
|
데이터시트 |
PCM | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 41mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCM1E101MCL4GSCAP ALUM POLY 100UF 20% 25V SMD |
1,477 | - |
|
데이터시트 |
PCM | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 27mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-KX0G151RFCAP ALUM POLY 150UF 20% 4V SMD |
3,494 | - |
|
데이터시트 |
SP-Cap KX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 15mOhm | 5500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
PCM1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
2,000 | - |
|
데이터시트 |
PCM | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 39mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCM1D151MCL4GSCAP ALUM POLY 150UF 20% 20V SMD |
1,490 | - |
|
데이터시트 |
PCM | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 25mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|

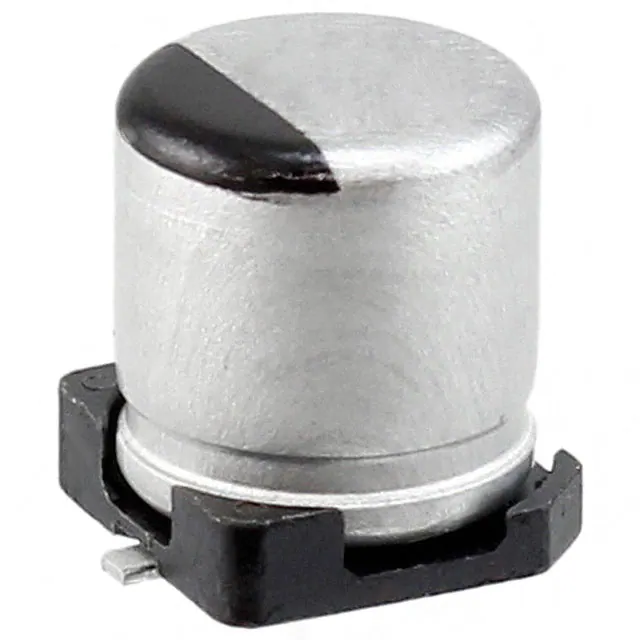

HZA336M025C12T-FCAP ALUM HYBRID 33UF 20% 25V SMD |
999 | - |
|
데이터시트 |
HZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 25 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
HZA226M035C12T-FCAP ALUM HYBRID 22UF 20% 35V SMD |
949 | - |
|
데이터시트 |
HZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 35 V | 100mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
RHA1009150M080KCAP ALUM HYBRID 15UF 20% 80V TH |
599 | - |
|
데이터시트 |
RHA | Cut Tape (CT) | Active | Hybrid | 15 µF | ±20% | 80 V | 70mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole | Radial, Can |
|
|
EEF-TX0D331RECAP ALUM POLY 330UF 20% 2V SMD |
3,500 | - |
|
데이터시트 |
SP-Cap TX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 5500 Hrs @ 135°C | -55°C ~ 135°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
RHA1009100M100KCAP ALUM HYBRID 10UF 20% 100V TH |
576 | - |
|
데이터시트 |
RHA | Cut Tape (CT) | Active | Hybrid | 10 µF | ±20% | 100 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 100 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole | Radial, Can |
|
|
870575375004CAP ALUM HYBRID 470UF 20% 16V TH |
1,183 | - |
|
데이터시트 |
WCAP-HTG5 | Cut Tape (CT) | Active | Hybrid | 470 µF | ±20% | 16 V | 21mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 100 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole | Radial, Can |
|
|
A798V477M002APE4R5CAP ALUM POLY 470UF 20% 2V SMD |
900 | - |
|
데이터시트 |
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 9.54 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | 2917 (7343 Metric) |
|
A780MS277M1VLAV022CAP ALUMHYB 270UF 20% 35V SMD |
2,390 | - |
|
데이터시트 |
A780, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 840 mA @ 100 Hz | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
