스피커
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2403 260 00051SPEAKER 32OHM 10MW TOP PORT 65DB |
0 | - |
|
데이터시트 |
- | Tape & Reel (TR) | Obsolete | Magnetic | Receiver | 160 Hz ~ 10 kHz | 350Hz | 32 Ohms | 65.00 | 1W/1M | Sensitivity | 10 mW | 75 mW | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.083" (2.10mm) |
|
KT44-RU001607-01SPEAKER |
0 | - |
|
- |
- | Tray | Obsolete | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KT44-RU007507-01SPEAKER |
0 | - |
|
- |
- | Tray | Obsolete | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2403 260 00106SPEAKER 32OHM 10MW TOP PORT 65DB |
0 | - |
|
데이터시트 |
SC-Lean-WP | Tape & Reel (TR) | Obsolete | Magnetic | Receiver | 160 Hz ~ 10 kHz | 350Hz | 32 Ohms | 65.00 | 1W/1M | Sound Pressure Level (SPL) | 10 mW | 75 mW | Top | Rectangular | Polyester | Nd-Fe-B | Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.079" (2.00mm) |
|
OWR-0860T-16SPEAKR 16OHM 5MW TOP PORT 63.6DB |
0 | - |
|
데이터시트 |
- | Active | Magnetic | Earphone Driver | 20 Hz ~ 20 kHz | 3.17kHz | 16 Ohms | 63.60 | 1mW/10mm | Sensitivity | 5 mW | 10 mW | Top | Round | Plastic | Nd-Fe-B | IP64 - Dust Tight, Water Resistant | - | Solder Pads | 0.315" Dia (8.00mm) | 0.177" (4.50mm) | |
|
2403 263 00077SPEAKER 8OHM 500MW TOP PORT 74DB |
0 | - |
|
데이터시트 |
- | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 15 kHz | 540Hz | 8 Ohms | 74.00 | 1W/1M | Sensitivity | 500 mW | 1 W | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 0.646" Dia (16.40mm) | 0.177" (4.50mm) |
|

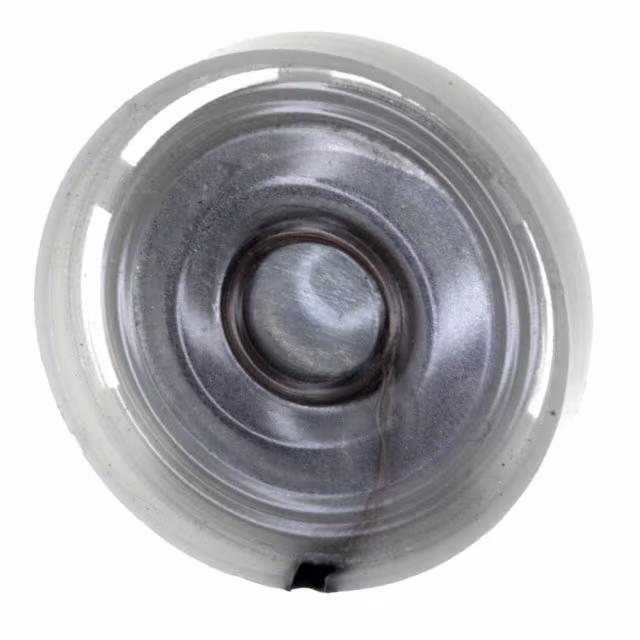

PSR-20F08S-JQSPEAKER 8OHM 250MW TOP PORT 80DB |
0 | - |
|
데이터시트 |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 1.3 kHz ~ 6 kHz | 1300Hz | 8 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.197" (5.00mm) |
|
2403 260 00087SPEAKER 32OHM 20MW TOP PORT 71DB |
0 | - |
|
데이터시트 |
Franklin | Tray | Obsolete | Magnetic | Receiver | 160 Hz ~ 6.5 kHz | 400Hz | 32 Ohms | 71.00 | 1W/1M | Sensitivity | 20 mW | 50 mW | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.083" (2.10mm) |
|
2403 260 00107SPEAKER 8OHM 600MW TOP PORT 73DB |
0 | - |
|
데이터시트 |
Donau-WP | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 450Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 600 mW | 1 W | Top | Rectangular | Polyester | Nd-Fe-B | Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
.jpg)
|
2403 263 00301SPEAKER 8OHM 600MW TOP PT 73.5DB |
0 | - |
|
데이터시트 |
Donau Slim | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 17 kHz | 800Hz | 8 Ohms | 73.50 | 1W/1M | Sound Pressure Level (SPL) | 600 mW | 1.2 W | Top | Rectangular | Foil | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
2403 263 00052SPEAKR 16OHM 20MW TOP PT 111.5DB |
0 | - |
|
데이터시트 |
Julia Hac | Tray | Obsolete | Magnetic | Receiver | 300 Hz ~ 4 kHz | 450Hz | 16 Ohms | 111.50 | - | Sensitivity | 20 mW | 20 mW | Top | Rectangular | - | - | - | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.098" (2.50mm) |
|
OWS-131845TA-8DSPEAKER 8OHM 1W TOP PORT 100DB |
0 | - |
|
데이터시트 |
- | Obsolete | Magnetic | IoT Speaker | 100 Hz ~ 20 kHz | 500Hz | 8 Ohms | 100.00 | 1W/10cm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.177" (4.50mm) | |
|
OWR-1026T-32CSPEAKER 32OHM 2MW TOP PT 125.5DB |
0 | - |
|
데이터시트 |
- | Active | Magnetic | Earphone Driver | 20 Hz ~ 20 kHz | 200Hz | 32 Ohms | 125.50 | 1mW/10mm | Sensitivity | 2 mW | - | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.394" Dia (10.00mm) | 0.130" (3.30mm) | |
|
OWR-3052T-32ASPEAKER 32OHM 10MW TOP PORT 94DB |
0 | - |
|
데이터시트 |
- | Obsolete | Magnetic | Headphone Driver | 100 Hz ~ 20 kHz | 150Hz | 32 Ohms | 94.00 | 10mW/10mm | Sensitivity | 10 mW | 30 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.181" Dia (30.00mm) | 0.201" (5.10mm) | |
|
2403 260 00041SPEAKER 32OHM 40MW TOP PORT 65DB |
0 | - |
|
데이터시트 |
- | Tape & Reel (TR) | Obsolete | Magnetic | Receiver | 300 Hz ~ 10 kHz | 520Hz | 32 Ohms | 65.00 | 1W/1M | Sensitivity | 40 mW | 75 mW | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.394" L x 0.189" W (10.00mm x 4.80mm) | 0.089" (2.25mm) |
|

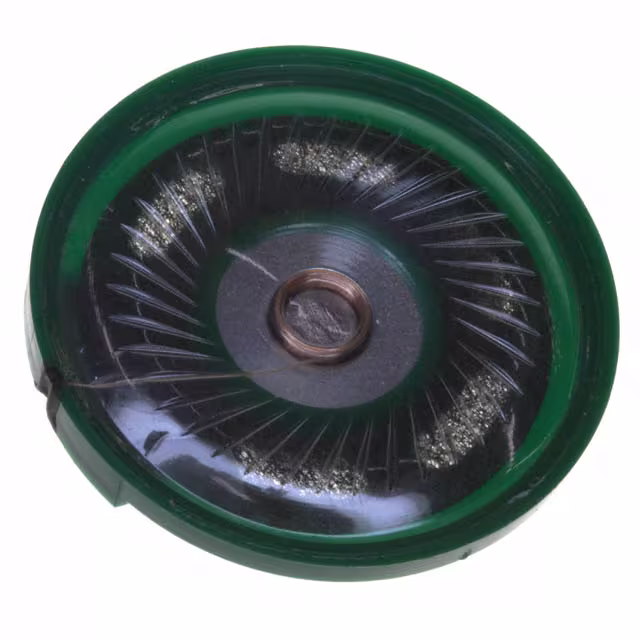

PSR-40F08S02-JQSPEAKER 8OHM 250MW TOP PORT 86DB |
0 | - |
|
데이터시트 |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 800 Hz ~ 5 kHz | 800Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.295" (7.50mm) |
|
OWR-06944T-16BSPEAKR 16OHM 5MW TOP PORT 62.7DB |
0 | - |
|
데이터시트 |
- | Obsolete | Magnetic | Earphone Driver | 20 Hz ~ 20 kHz | 3.24kHz | 16 Ohms | 62.70 | 1mW/10mm | Sound Pressure Level (SPL) | 5 mW | 10 mW | Top | Round | Plastic | Nd-Fe-B | IP64 - Dust Tight, Water Resistant | - | Solder Pads | 0.276" Dia (7.00mm) | 0.193" (4.90mm) | |
|
CDMG15008-03SPEAKER 8OHM 300MW TOP PORT 77DB |
0 | - |
|
데이터시트 |
CDMG | Bag | Obsolete | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) | 0.110" (2.80mm) |
|
2403 260 00071SPEAKER 8OHM 600MW TOP PORT 73DB |
0 | - |
|
데이터시트 |
Grand | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 600 mW | 1 W | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
|
OWS-112337CW50A-8SPKR 8OHM 2W 104DB WITH CONNECTO |
0 | - |
|
데이터시트 |
- | Active | Magnetic | Microspeaker | 100 Hz ~ 20 kHz | 1kHz | 8 Ohms | 104.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | IEC 60601-1-8 | Connector | 0.433" L x 0.906" W (11.00mm x 23.00mm) | 0.165" (4.20mm) |
