스피커
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI-26697-000SPEAKER 47OHM TOP PORT 131.5DB |
0 | - |
|
데이터시트 |
CI | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 47 Ohms | 131.50 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.373" L x 0.283" W (9.47mm x 7.18mm) | 0.165" (4.19mm) |
|
|
CI-28226-000SPEAKER 250OHM SIDE PORT |
0 | - |
|
- |
CI | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | - | - | 250 Ohms | - | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | - | - |
|
SDS-P830657SPEAKR 6.44OHM 60W TOP PT 88.5DB |
0 | - |
|
데이터시트 |
SDS | Bulk | Obsolete | Magnetic | Subwoofer | 40 Hz ~ 4 kHz | 44.75Hz | 6.44 Ohms | 88.50 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 7.165" Dia (182.00mm) | 3.087" (78.40mm) |
|
WS 13 E - 8 OHMSPEAKER 8OHM 40W TOP PORT 86DB |
0 | - |
|
데이터시트 |
- | Bulk | Active | Magnetic | - | 83 Hz ~ 12 kHz | 83Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | - | 2.047" (52.00mm) |
|
|
FR 13 WP - 4 OHM (BLACK)SPEAKER 4OHM 40W TOP PORT 85DB |
0 | - |
|
데이터시트 |
- | Bulk | Active | Magnetic | - | 70 Hz ~ 16 kHz | 100Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Plastic | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 5.906" Dia (150.00mm) | 2.205" (56.00mm) |
|
|
FR 13 WP - 4 OHM (WHITE)SPEAKER 4OHM 40W TOP PORT 85DB |
0 | - |
|
데이터시트 |
- | Bulk | Active | Magnetic | - | 70 Hz ~ 16 kHz | 100Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Plastic | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 5.906" Dia (150.00mm) | 2.205" (56.00mm) |
|
SDS-135F25CP02-06SPEAKR 6.54OHM 60W TOP PT 84.8DB |
0 | - |
|
데이터시트 |
SDS | Bulk | Active | Magnetic | Subwoofer | 50 Hz ~ 5 kHz | 57.23Hz | 6.54 Ohms | 84.80 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 5.984" Dia (152.00mm) | 2.618" (66.50mm) |
|
|
ED-27045-000SPEAKER 395OHM SIDE PORT 104DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 20 Hz ~ 20 kHz | - | 395 Ohms | 104.00 | - | Sound Pressure Level (SPL) | - | - | Side | Rectangular | - | - | - | - | Wire Leads | - | - |
|
|
ED-21912-000SPEAKER 725OHM TOP PORT 106DB |
0 | - |
|
데이터시트 |
ED | Tube | Active | Magnetic | Receiver | 200 Hz ~ 5 kHz | - | 725 Ohms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
ED-26821-000SPEAKER 10.2OHM SIDE PORT 107DB |
0 | - |
|
- |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4.4 kHz | - | 10.2 Ohms | 107.00 | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.119" (3.02mm) |
|
|
ED-23801-000SPEAKER 273OHM TOP PORT 106DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 273 Ohms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
ED-21744-000SPEAKER 3.05 KOHM TOP PORT 107DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 3.05 kOhms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|

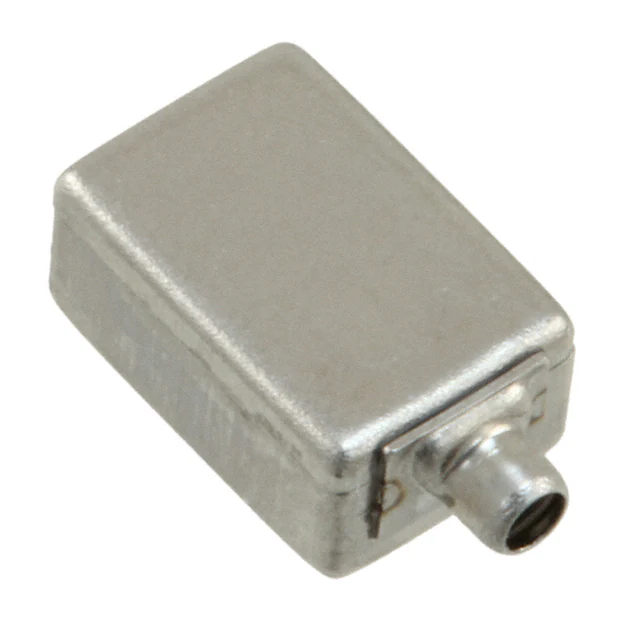

ED-21914-000SPEAKER 2.9 KOHM TOP PORT 106DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 2.9 kOhms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
ED-21932-000SPEAKER 725OHM TOP PORT 106DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 725 Ohms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
ED-23087-000SPEAKER 1.5 KOHM TOP PORT 107DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 1.5 kOhms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
ED-23145-000SPEAKER 1.45 KOHM TOP PORT 106DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 1.45 kOhms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
ED-23162-000SPEAKER 92OHM TOP PORT 107DB |
0 | - |
|
- |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 92 Ohms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - | 0.248" (6.30mm) |
|
|
ED-23814-000SPEAKER 85OHM SIDE PORT 104DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 85 Ohms | 104.00 | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | - | - |
|
|
ED-26241-000SPEAKER 104DB RECTANGULAR |
0 | - |
|
- |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | - | - | - | 104.00 | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - | - |
|
|
ED-26245-000SPEAKER 55OHM SIDE PORT 104DB |
0 | - |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 25 Hz ~ 35 kHz | - | 55 Ohms | 104.00 | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | - | - |
