LED COB, 엔진, 모듈, 스트립
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 색상 | CCT(K) | 파장 | 구성 | 전류/온도에서의 광속 | 전류 - 테스트 | 온도 - 테스트 | 전압 - 정방향(Vf)(일반) | 루멘/와트 @ 전류 - 테스트 | 전류 - 최대 | CRI(연색지수) | 시야각 | 기능 | 크기/치수 | 높이 | 발광 표면(LES) | 렌즈 유형 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24V-MB75-PW-12MLED ENG WHT LNR STRIP 4100K |
0 | - |
|
데이터시트 |
- | Bulk | Obsolete | LED Engine | White, Neutral | 4100K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | - | - | - | 6.35mm | - | Flat |
|
|
24V-MB75-WW-12MLED ENG WM WHT LNR STRP 2700K |
0 | - |
|
데이터시트 |
- | Bulk | Obsolete | LED Engine | White, Warm | 2700K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | - | - | - | 6.35mm | - | Flat |
|
|
HL16WLED ENG WHITE 6500K |
0 | - |
|
데이터시트 |
- | Bulk | Obsolete | LED Engine | White, Warm / White, Cool | 3200K, 6500K | - | - | 180lm Warm White, 300lm Cool White | 350mA | - | - | - | - | - | - | - | 50.00mm Dia | 35.50mm | - | Flat |
|
LE A P1W-RXRZ-23-0-F00-T01LED MOD OSRAM OSTAR AMBER RECT |
0 | - |
|
데이터시트 |
OSRAM OSTAR | Tray | Discontinued at Digi-Key | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 1460lm (1120lm ~ 1800lm) | 12A | 25°C | 3.35V | 36 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
|
GW6BGG30HD6LED COB MINI ZENIGATA RECT |
0 | - |
|
데이터시트 |
Mini Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 750lm (Typ) | 200mA | 90°C | 34.5V | 109 lm/W | 400mA | 90 | - | - | 15.00mm L x 12.00mm W | 1.40mm | 8.80mm Dia | Flat |
|
|
GW6DGB30BF6LED COB MEGA ZENIGATA RECT |
0 | - |
|
데이터시트 |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 2350lm (Typ) | 500mA | 90°C | 34.5V | 136 lm/W | 850mA | 90 | - | - | 24.00mm L x 20.00mm W | 1.45mm | 15.60mm Dia | Flat |
|
|
GW6NGWJCS0CLED COB MINI ZENIGATA RECT |
0 | - |
|
데이터시트 |
Mini Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2000K ~ 3000K | - | Rectangle | 1000lm (Typ) | 350mA | 25°C | 36.5V | 78 lm/W | 420mA | 90 | - | - | 15.00mm L x 12.00mm W | 1.60mm | 8.80mm Dia | Flat |
|
|
GW6NGWKCS06LED COB MINI ZENIGATA RECT |
0 | - |
|
데이터시트 |
Mini Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 1900K ~ 3000K | - | Rectangle | 1175lm (Typ) | 350mA | 25°C | 36.2V | 93 lm/W | 420mA | 90 | - | - | 15.00mm L x 12.00mm W | 1.60mm | - | Flat |
|

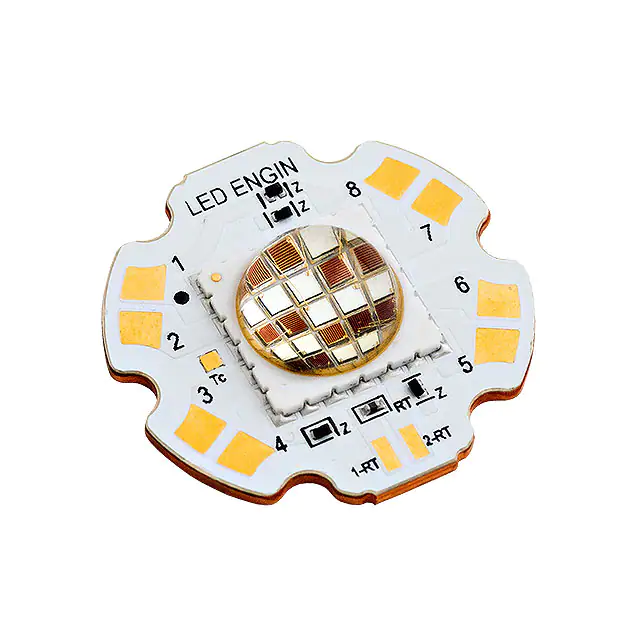

LZP-L0H100-0000LED MOD LUXIGEN RGB STARBOARD |
0 | - |
|
데이터시트 |
LuxiGen™ | Tray | Obsolete | LED Module | Red, Green, Blue (RGB) | - | 660nm Red, 740nm Red, 520nm Green, 450nm Blue | Starboard | - | 700mA Red, 700mA Green, 700mA Blue | 25°C | 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue | - | 700mA Red, 700mA Green, 700mA Blue | - | 125° | - | 27.60mm Dia | 7.60mm | - | Domed |
|

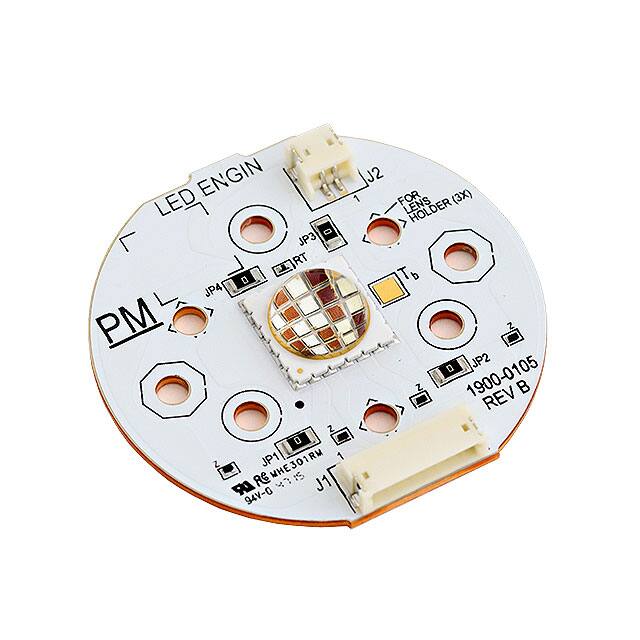

LZP-W0H100-0000LED MOD LUXIGEN RGB ROUND |
0 | - |
|
데이터시트 |
LuxiGen™ | Tray | Obsolete | LED Module | Red, Green, Blue (RGB) | - | 660nm Red, 740nm Red, 520nm Green, 450nm Blue | Round | - | 700mA Red, 700mA Green, 700mA Blue | 25°C | 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue | - | 700mA Red, 700mA Green, 700mA Blue | - | 125° | - | 49.00mm Dia | 7.62mm | - | Domed |
|
MP22T1-C24-4070-W-1-00LED MOD XHP70 NEUT WH RECT 4000K |
0 | - |
|
데이터시트 |
XHP70 | Bulk | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 6360lm (Typ) | 1.05A | 85°C | 46.4V | 131 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - | Domed |
|
MP22T1-C24-4070-T2-1-00LED MOD XHP70 NEUT WH RECT 4000K |
0 | - |
|
데이터시트 |
XHP70 | Bulk | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 6360lm (Typ) | 1.05A | 85°C | 46.4V | 131 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - | Domed |
|
|
MP22T1-C24-5070-T2-1-00LED MOD XHP70 CL WHT RECT 5000K |
0 | - |
|
데이터시트 |
XHP70 | Bulk | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 6840lm (Typ) | 1.05A | 85°C | 46.4V | 140 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - | Domed |
|
LE B P1W-EYFY-24-0-F00-T01LED MOD OSRAM OSTAR BLUE RECT |
0 | - |
|
데이터시트 |
OSRAM OSTAR | Tray | Obsolete | LED Module | Blue | - | 459nm (452nm ~ 465nm) | Rectangle | - | 12A | 25°C | 3.55V | - | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
LE CG P2A-7U7V-ALED MOD OSRAM OSTAR GREEN RECT |
0 | - |
|
데이터시트 |
OSRAM OSTAR | Tray | Obsolete | LED Module | Green | - | 520nm | Rectangle | 7800lm (Typ) | 24A | 25°C | 3.55V | 92 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 1.80mm | - | Flat |
|
LE B P3W 01-GYHY-24-0-F00-T01LED MOD OSRAM OSTAR BLUE RECT |
0 | - |
|
- |
OSRAM OSTAR | Tray | Obsolete | LED Module | Blue | - | 459nm (452nm ~ 465nm) | Rectangle | - | 36A | 25°C | 3.55V | - | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
LE CG P3A 01-6V6W-1LED MOD OSRAM OSTAR GREEN RECT |
0 | - |
|
데이터시트 |
OSRAM OSTAR | Tray | Obsolete | LED Module | Green | - | 520nm | Rectangle | 11000lm (Typ) | - | 25°C | 3.55V | 86 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 1.80mm | - | Flat |
|
|
L2C5-22901202E0600LED COB LUXEON WM WHT RECT 2200K |
0 | - |
|
데이터시트 |
LUXEON CoB Core Range Gen 3 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 654lm (Typ) | 200mA | 85°C | 34.5V | 95 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia | Flat |
|
|
L2C5-27901202E0600LED COB LUXEON WM WHT RECT 2700K |
0 | - |
|
데이터시트 |
LUXEON CoB Core Range Gen 3 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 736lm (Typ) | 200mA | 85°C | 34.5V | 107 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia | Flat |
|
|
L2C5-30801202E0600LED COB LUXEON WHT RECT 3000K |
0 | - |
|
데이터시트 |
LUXEON CoB Core Range Gen 3 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 930lm (Typ) | 200mA | 85°C | 34.5V | 135 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia | Flat |
