IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지
MIP40R12E1TN-BP IGBT MODULES Micro Commercial Co	4,035	-	RFQ	-	-	Module	Tape & Reel (TR)	Active	-	Three Phase Inverter	1200 V	40 A	227 W	2.05V @ 15V, 40A	1 mA	2250 pF @ 25 V	Three Phase Bridge Rectifier	Yes	175°C (TJ)	Chassis Mount	-
APTGT200DA170D3G IGBT MODULE 1700V 400A 1250W D3 Microsemi Corporation	4,759	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1700 V	400 A	1250 W	2.4V @ 15V, 200A	5 mA	17 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
APTGT200SK170D3G IGBT MODULE 1700V 400A 1250W D3 Microsemi Corporation	9,693	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1700 V	400 A	1250 W	2.4V @ 15V, 200A	5 mA	17 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
MG12150S-BN2MM IGBT MODULE 1200V 200A 625W S3 Littelfuse Inc.	8,187	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	200 A	625 W	1.7V @ 15V, 150A (Typ)	1 mA	10.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	S3
APTGF75H120TG IGBT MODULE 1200V 100A 500W SP4 Microchip Technology	9,859	-	RFQ	-	-	SP4	Bulk	Obsolete	NPT	Full Bridge Inverter	1200 V	100 A	500 W	3.7V @ 15V, 75A	250 µA	5.1 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP4
CM150DUS-12F IGBT MOD 600V 150A 520W Powerex Inc.	6,731	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	Trench	Half Bridge	600 V	150 A	520 W	2.7V @ 15V, 150A	1 mA	41 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTCV60TLM99T3G IGBT MODULE 600V 50A 90W SP3 Microchip Technology	2,080	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Three Level Inverter - IGBT, FET	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3
FF75R12RT4HOSA1 IGBT MOD 1200V 75A 395W Infineon Technologies	4,209	-	RFQ	-	PrimePACK™2	Module	Tray	Obsolete	Trench Field Stop	2 Independent	1200 V	75 A	395 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
MG12100D-BA1MM IGBT MODULE 1200V 160A 1000W D3 Littelfuse Inc.	4,803	-	RFQ	-	-	Module	Bulk	Obsolete	-	Half Bridge	1200 V	160 A	1000 W	1.8V @ 15V, 100A (Typ)	1 mA	8.58 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
CM200EXS-24S IGBT MOD 1200V 200A 1500W Powerex Inc.	9,390	-	RFQ	-	-	Module	Bulk	Discontinued at Digi-Key	-	Single	1200 V	200 A	1500 W	2.15V @ 15V, 200A	1 mA	20 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-	Module
IFS75B12N3E4B31BOSA1 IGBT MOD 1200V 150A 385W Infineon Technologies	6,541	-	RFQ	-	MIPAQ™	Module	Tray	Active	Trench Field Stop	Full Bridge	1200 V	150 A	385 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
MDI200-12A4 IGBT MOD 1200V 270A 1130W Y3DCB IXYS	2,536	-	RFQ	-	-	Y3-DCB	Box	Obsolete	NPT	Single	1200 V	270 A	1130 W	2.7V @ 15V, 150A	10 mA	11 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Y3-DCB
APTGT50A170T1G IGBT MODULE 1700V 75A 312W SP1 Microchip Technology	7,055	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Half Bridge	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP1
IFF300B12N2E4PB11BPSA1 IGBT MOD 1200V 600A 20MW Infineon Technologies	9,670	-	RFQ	-	MIPAQ™	Module	Tray	Active	Trench Field Stop	Half Bridge	1200 V	600 A	-	2.1V @ 15V, 300A	1 mA	18.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
CM50BU-24H IGBT MOD 1200V 50A 400W Powerex Inc.	9,184	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Full Bridge Inverter	1200 V	50 A	400 W	3.7V @ 15V, 50A	1 mA	7.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGLQ50H65T3G IGBT MODULE 650V 70A 175W SP3F Microchip Technology	6,912	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Full Bridge	650 V	70 A	175 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3F

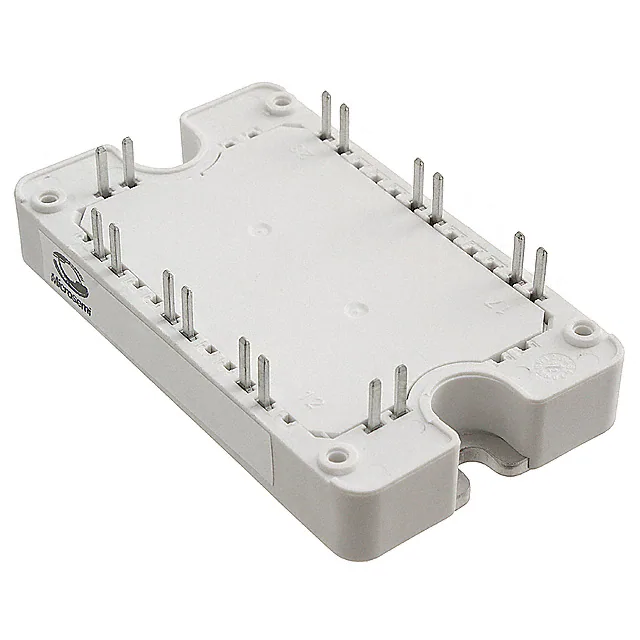

APTGT100BB60T3G IGBT MODULE 600V 150A 340W SP3 Microchip Technology	5,006	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Half Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole	SP3

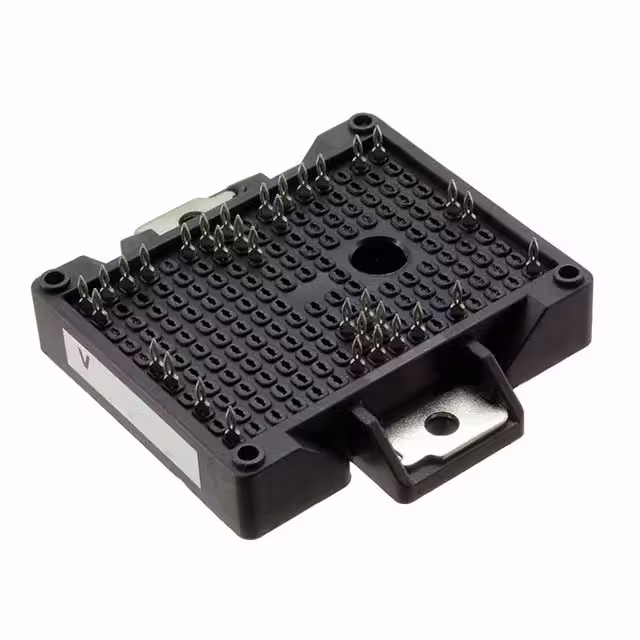

VS-ETF075Y60U IGBT MOD 600V 109A EMIPAK-2B Vishay General Semiconductor - Diodes Division	2,295	-	RFQ	-	-	EMIPAK-2B	Bulk	Obsolete	Trench	Three Level Inverter	600 V	100 A	294 W	1.93V @ 15V, 75A	100 µA	4.44 nF @ 30 V	Standard	Yes	175°C (TJ)	Chassis Mount	EMIPAK-2B
MIP50R12E2TN-BP IGBT MODULES Micro Commercial Co	2,458	-	RFQ	-	-	Module	Tape & Reel (TR)	Active	-	Three Phase Inverter	1200 V	35 A	227 W	1.95V @ 15V, 35A	1 mA	2000 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	-
FP100R12N2T7B11BPSA1 LOW POWER ECONO Infineon Technologies	3,407	-	RFQ	-	EconoPIM™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	100 A	-	1.5V @ 15V, 100A	10 µA	21.7 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2B

Total 2945 Record«Prev 1... 80 81 82 838485 86 87...148 Next»
