알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-UD0G151LECAP ALUM POLY 150UF 20% 4V SMD |
0 | - |
|
데이터시트 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0G181LECAP ALUM POLY 180UF 20% 4V SMD |
0 | - |
|
데이터시트 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
ESRD100M12RCAP ALUM POLY 10UF 20% 12.5V SMD |
0 | - |
|
데이터시트 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 12.5 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
A785MW187M1JLAS015CAP ALUMHYB 180UF 20% 63V SMD |
0 | - |
|
데이터시트 |
A785 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 63 V | 15mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 792 mA @ 100 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCR1C102MCSANAGSCAP ALUM HYBRID 100UF 20% 25V SM |
0 | - |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UGP1E101MNN1012PUCAP ALUM POLY 100UF 20% 25V TH |
0 | - |
|
데이터시트 |
UGP | Active | Polymer | 100 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | Radial, Can | |
|
EEF-CX1D330RCAP ALUM POLY 33UF 20% 20V SMD |
17 | - |
|
데이터시트 |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 33 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | 2917 (7343 Metric) |
|
|
ECASD41E156M040KH0CAP ALUM POLY 15UF 20% 25V SMD |
0 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
UGS1C272MP51020F5RUCAP ALUM POLY 2700UF 20% 16V TH |
0 | - |
|
데이터시트 |
UGS | Active | Polymer | 2700 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | Radial, Can | |
|
2.5SXE82MCAP ALUM POLY 82UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
4SXE68MCAP ALUM POLY 68UF 20% 4V SMD |
0 | - |
|
데이터시트 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

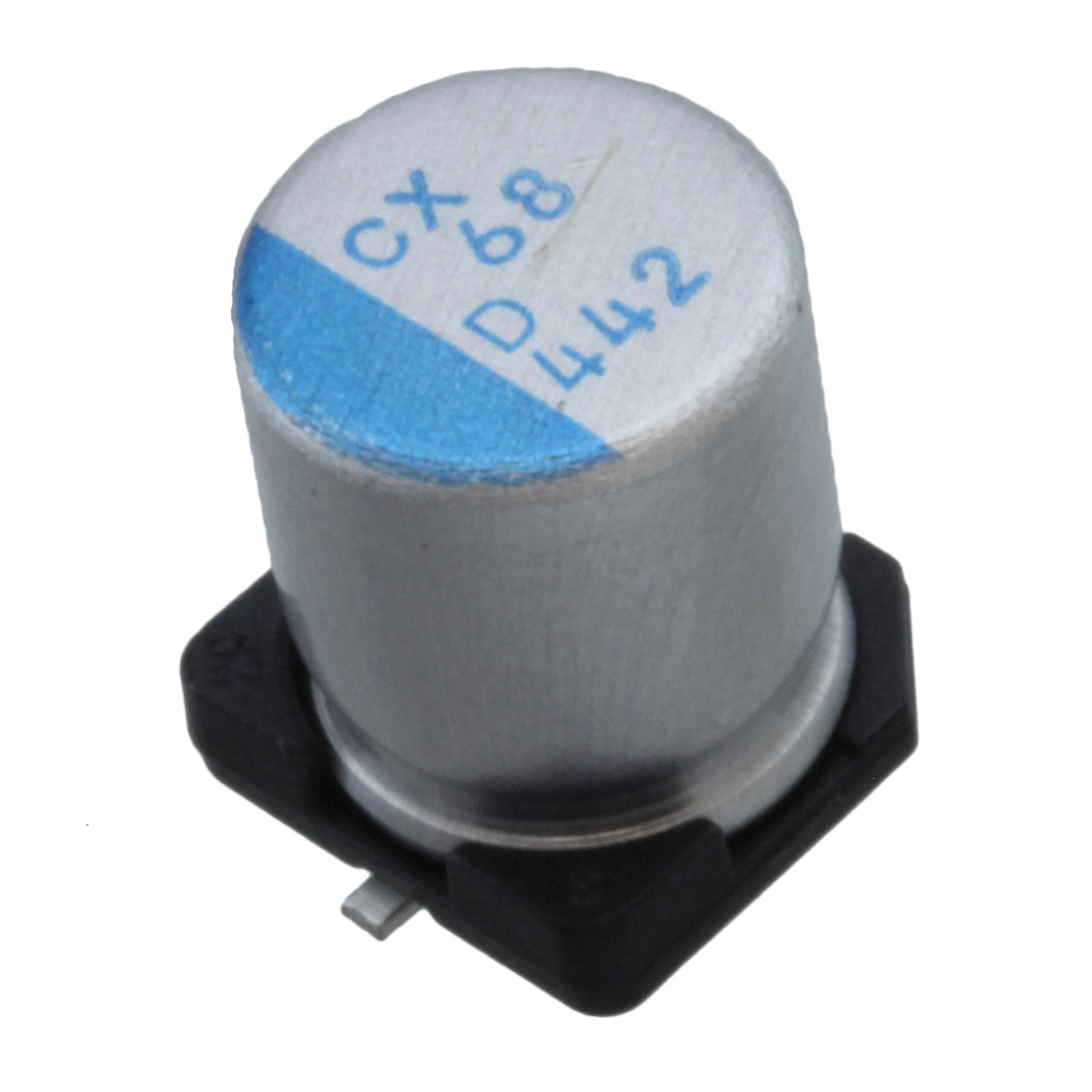

PCX1D680MCS1GSCAP ALUM POLY 68UF 20% 20V SMD |
0 | - |
|
데이터시트 |
PCX | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 34mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.319" (8.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
870135375006CAP ALUM POLY 390UF 20% 16V TH |
0 | - |
|
데이터시트 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 96.45 mA @ 120 Hz | 1.929 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can |
|
|
URP1C821MP51012ERCAP ALUM POLY 820UF 20% 16V TH |
0 | - |
|
데이터시트 |
URP | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | Radial, Can | |
|
|
A700X337M004ATE0152478CAP ALUM POLY 330UF 20% 4V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEF-SX0D181RCAP ALUM POLY 180UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 180 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-SX0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
0 | - |
|
데이터시트 |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-CX0D271XRCAP ALUM POLY 270UF 20% 2V SMD |
0 | - |
|
데이터시트 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
ESRD220M12RCAP ALUM POLY 22UF 20% 12.5V SMD |
0 | - |
|
데이터시트 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 12.5 V | 30mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | - | Surface Mount | 2917 (7343 Metric) |
|
PCF1D680MCL1GSCAP ALUM POLY 68UF 20% 20V SMD |
0 | - |
|
데이터시트 |
PCF | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
